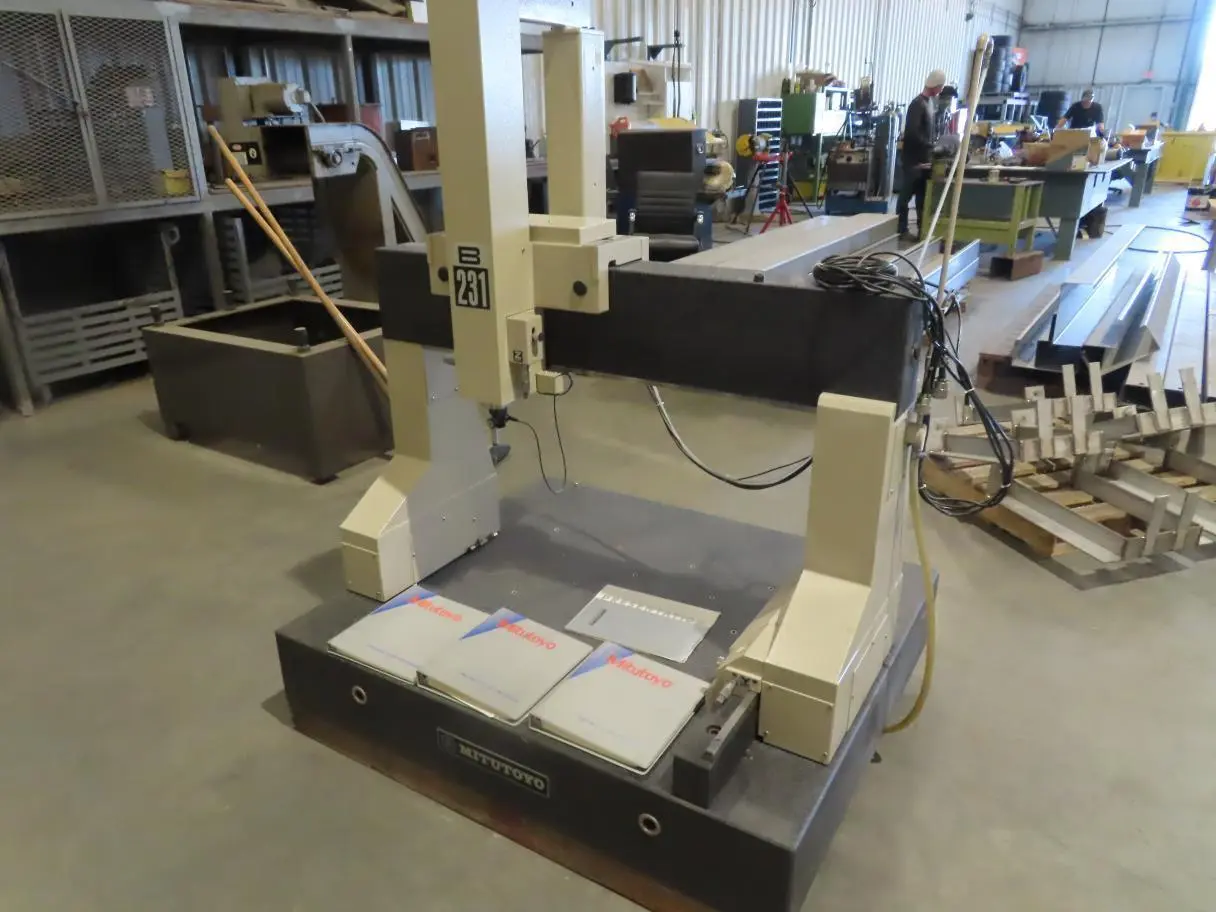

USED 1985 MITUTOYO B231

Coordinate Measuring Machine (CMM)
Make: Mitutoyo Manufacturing Company (Japan)
Model: B231
Code No.: 806M-3
Serial No.: 8506893 / 017000004
DOM (circa): 1985

Features and Specifications:
...3-Axis Bridge-Type CMM
...Table: 32” x 43”
......Between Columns: 39”
...Measuring Range: 28” x 24” x 18”
...Accuracy: Linear of 0.0003” – 0.0002”
...Resolution: 0.0001”
...Repeatability: 0.0001”
...Max. Table Load: 1,100 lbs.
...Guideways: Air Bearing, All Axes
...Thermally Stable Solid Granite Table
...Renishaw PH1 Probe
...Geopak Language Documentation
...No Operating System

Overall Dimensions (approximate): 54″ x 46″ x 64″ Tall
Unit Weight (approximate): 3,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Current owner inherited machine from company they purchased. Did not use in production. System comes without operating system.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide delivery options.

Contact MD Equipment Services LLC to schedule inspections or arrange purchase details.
