USED 2015 REYMSA PVK284TTTNA16603AAL
USD $975.00
Overview
Description

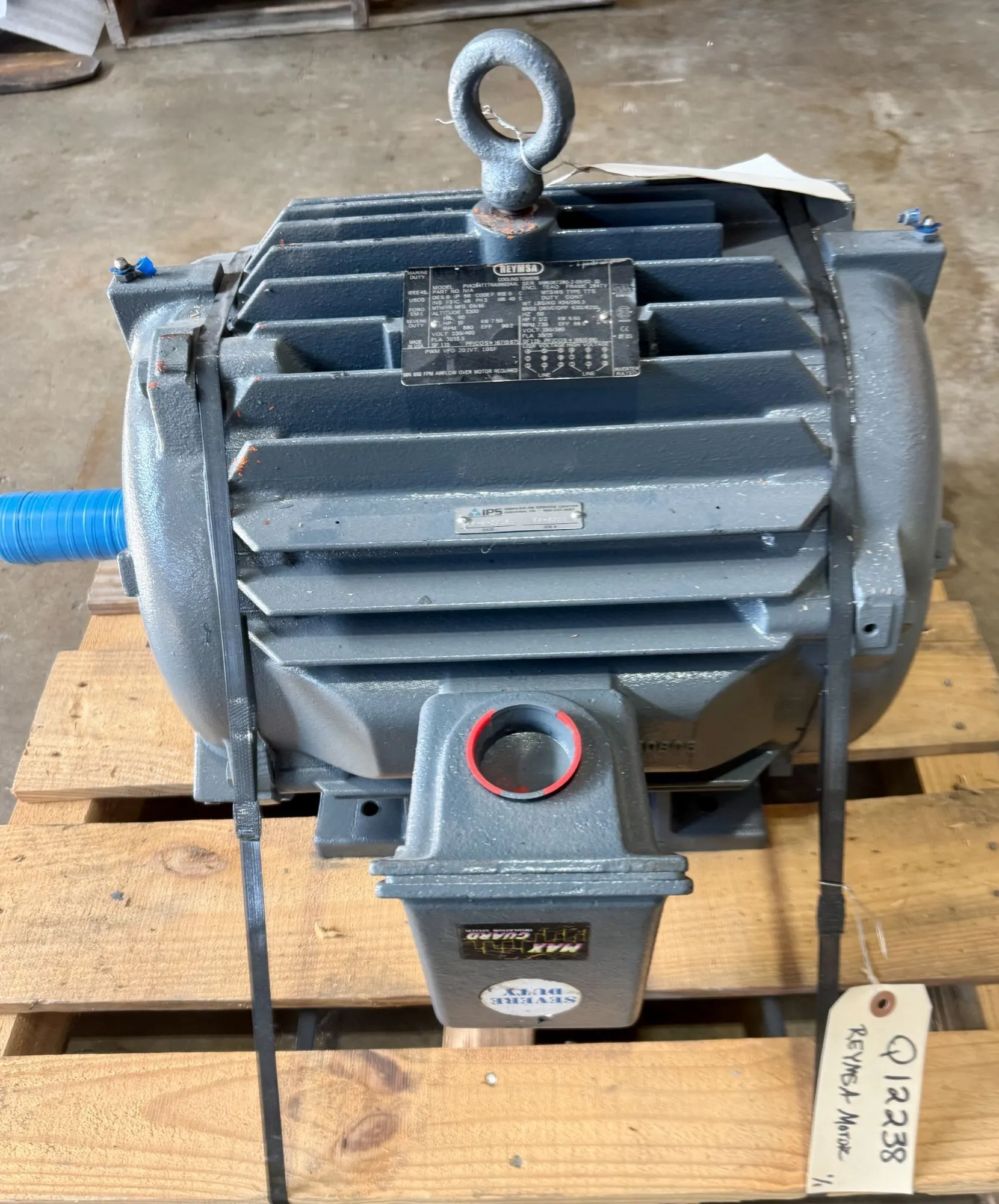

REYMSA PVK284TTTNA16603AAL SEVERE DUTY MOTOR, Continuous Duty, 10 HP, 230/460 V, 3-Phase, 880 RPM, TEAO, 284TV Mount, New 2015.
Specifications
| Type | Severe Duty | Severe Duty |
|---|---|---|
| Motor Type | Induction | Induction |
| Spec Number | PVK284TTNA16603AAL | PVK284TTNA16603AAL |
| Motor Power | 10 hp | 7.5 kW |
| Actual Rated Input Voltage | 230/460 V | 460 V |
| Full Load Amps | 31/15.5 A | 31 A |
| Base Speed | 880 RPM | 880 RPM |
| Frame | 284TV | 284TV |
| Frequency | 60 Hz | 60 Hz |
| Motor Phase | 3 | 3 |
| Service Factor | 115 | 115 |
| NEMA Design Letter | Design B (General Purpose) | Design B (General Purpose) |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| NEMA-NOM Efficiency | 90.2% | 90.2% |
| Ambient Temperature | 40° C | 40°C |
| Drive End (DE) | 6311 | 6311 |
| Opposite Drive End (ODE) | 6210 | 6210 |
| Enclosure Type | TEAO: Totally Enclosed Air Over | TEAO: Totally Enclosed Air Over |
| Enclosure Rating | IP 56 | IP 56 |
| Dimensions | 25" x 21" x 18" | 25" x 21" x 18" |
| Weight | 410 lbs | 410 lbs |
Equipped With
on a skid 30" x 30" x 25"
