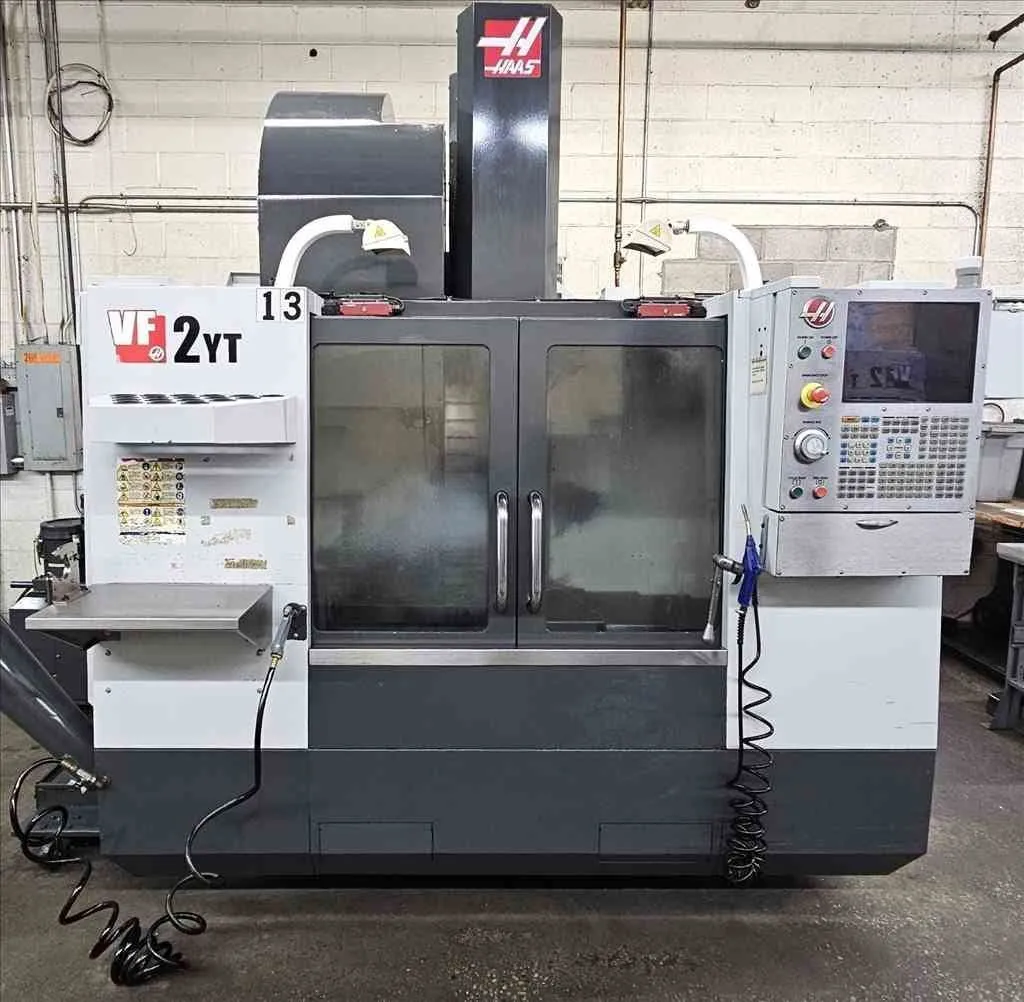

HAAS VF-2YT Vertical Machining Center
New: 06/2015
High-Speed Spindles: Options for 10,000 RPM, 12,000 RPM, or 15,000 RPM inline direct-drive spindles.
High-Torque Gearbox: A 2-speed gearbox providing up to 250 ft-lb of torque at 450 RPM, ideal for heavy-duty steel cutting.
Enhanced Tool Changers:
Side-Mount Tool Changer (SMTC): A faster alternative to the standard 20-pocket umbrella carousel, available in 24+1 or 30+1 configurations.
Rotary & Multi-Axis:
4th Axis Drives: Pre-wired and configured with the necessary software for full 4th or 5th-axis integration
It was use to cut Aluminum ,steel and cast.
| X-Axis | 30" | 762 mm |
| Y-Axis | 20" | 508 mm |
| Z-Axis | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 20 | 20 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 36" | 914.4 mm |
High-Pressure Through Spindle Coolant (1000-PSI)
High Pressure Flood Coolant
Multi-Auger Chip Removal System
