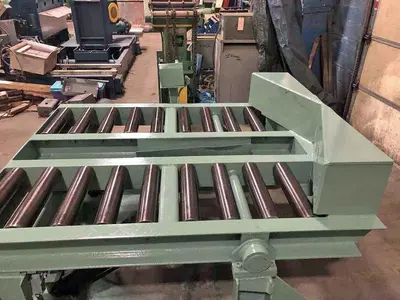

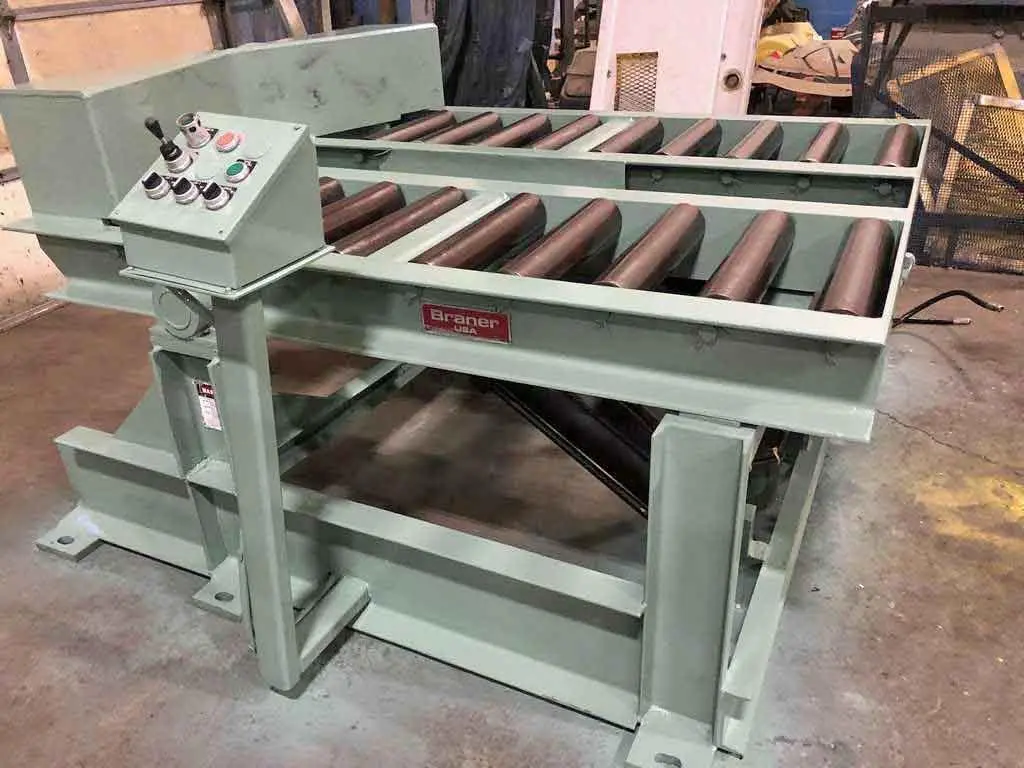

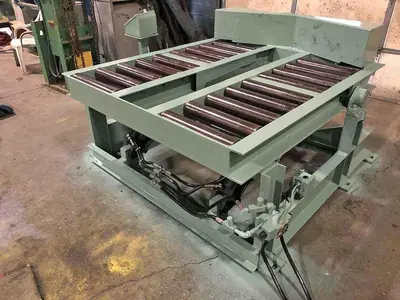

USED BRANER EXIT SPLIT CONVEYOR / COIL TIPPER

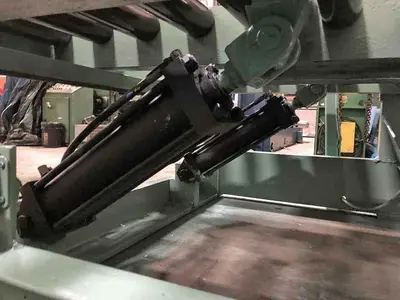

WEIGHT CAPACITY.................: 15,000 LBS.WIDTH CAPACITY..................: 10"O.D. CAPACITY...................: 72"ROLL DIAMETER...................: 4"ROLL FACE.......................: 18"SPLIT SECTION DOWN CENTER.......: 11"PASSLINE HEIGHT.................: 36"EQUIPPED WITH...................: 2 HYDRAULIC TILT CYLINDERS                                  "V" CRADLE COIL SUPPPORTHYDRAULIC BORE CYLINDER HEIGHT..: 11"HYDRAULIC BORE CYLINDER STROKE..: 20""V" CRADLE COIL SUPPORT HEIGHT..: 11"OVERALL LENGTH..................: 91"OVERALL WIDTH...................: 79"OVERALL HEIGHT..................: 48"
