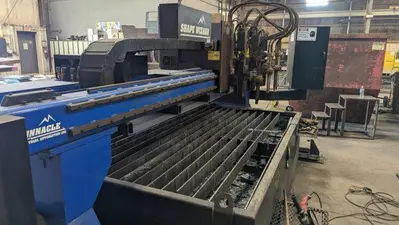

USED 2015 PINNACLE SHAPEWIZARD

Key Features:
Cutting Area: 8′ W × 24′ L
Accuracy: ±0.005″ positional, ±0.007″ repeatability, ±0.015″ cut tolerance
Max Speed: 700 IPM
Drive System: Helical rack and pinion on all axes
Rail System: Machined DSG rails with dual-sided drive rack
Construction: V-rails with V-wheels; all wiring labeled and UL/CUL/CSA approved

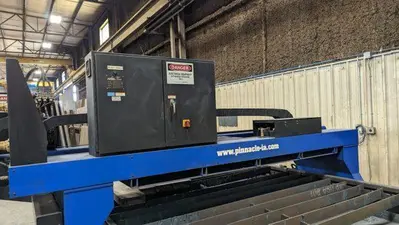

Safety: Category II/III E-stop circuit, safety contactor, and monitoring relay

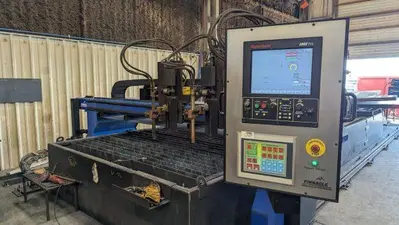

Operator Cabinet: Swivel-mounted with 15″ touchscreen, joystick, and auxiliary switches
Control System – Hypertherm EDGE Pro:
Graphical Windows XP-based CNC with 3-axis control
True Hole® and HPR auto gas ready
Full power-loss recovery with rush job resume
HyperNet interface for future THC upgrades
Includes 50-shape library and Windows Link software
Motion & Power:
Kollmorgen 3-axis brushless servo drive system
AKM servo motors, AKD amplifiers, 1 kW per axis
Precision gearboxes, SERCOS III CNC interface
240V single or 3-phase power input

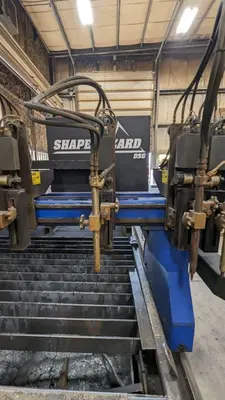

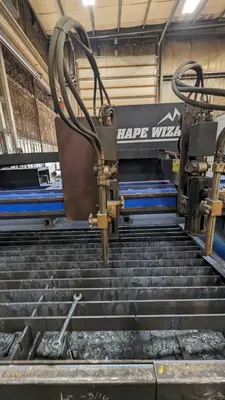

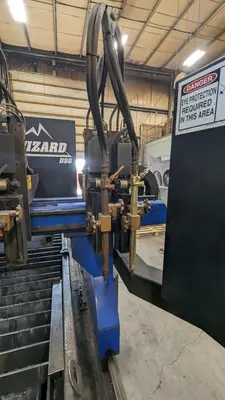

Oxy-Fuel Cutting Package (4 Stations):
– Oxweld C67 machine torches
– Motorized lifters (manual toggle control)

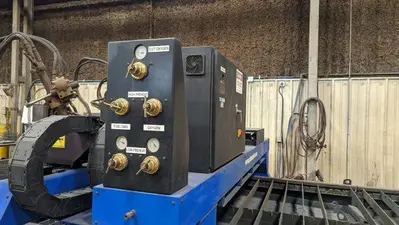

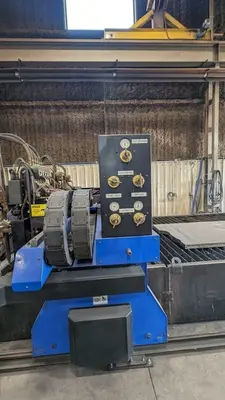

– Hi/Lo preheat regulators, cutting O2 regulator
– Master solenoids and T-grade fuel gas hoses

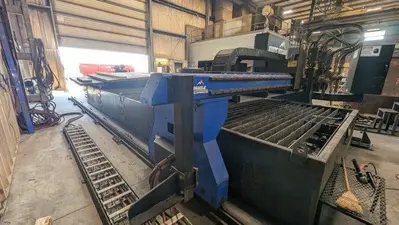

Cable Management:
– PT35E steel cable track system (for long-travel applications)
– Floor or overhead mountable; protects hoses and lines
