FICEP 1001 DDB DRILL & K100 SAW LINE. STOCK #1006125

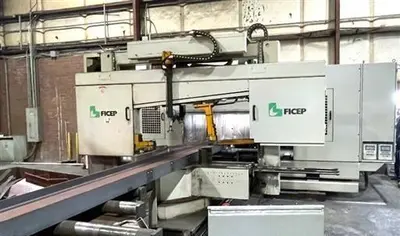

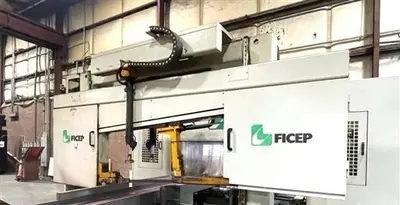

FICEP 1001 DDB DRILL:
No. Of Spindles..............................: 1
Beam Depth, Min - Max........................: 3-1/8" - 40"
Flange Height, Min - Max.....................: 3/8" - 17-3/4"
Maximum Drill Diameter.......................: 1-9/16"
Maximum Drill Thickness......................: 4"
Spindle Motor................................: 22 HP
Spindle Speed................................: 180 - 2500 RPM
FICEP K100 BAND SAW:
Max. Sawing Capacity at 90°..................: 40" x 17-3/4"
Sawing Capacity at 45°.......................: 24-3/8" x 17-3/4""
Sawing Capacity at 60°.......................: 13-3/4" x 13-3/4"
Blade Speed..................................: 196 - 557 FPM
Motor Power..................................: 12 HP
Equipped With:

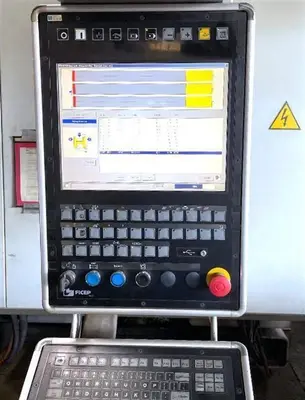

-Ficep Pegaso CNC Control
-(1) Monospindle 180 Degree Rotary Drilling Spindle For Drilling On 3-Sides
-(6) Position Tool Changer
-Scribing On 3-Sides
-Carriage Feed

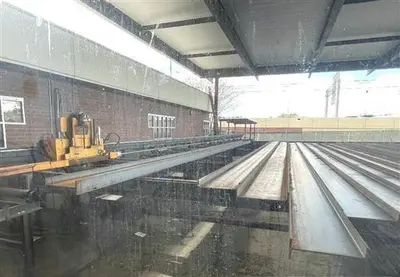

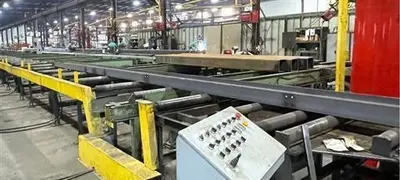

-65' Powered Infeed Conveyor With Transfers

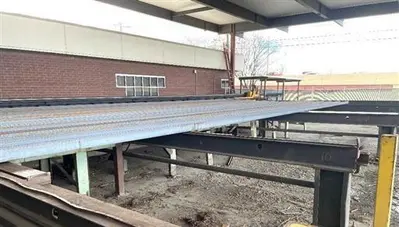

-40' Outfeed Powered Conveyor
