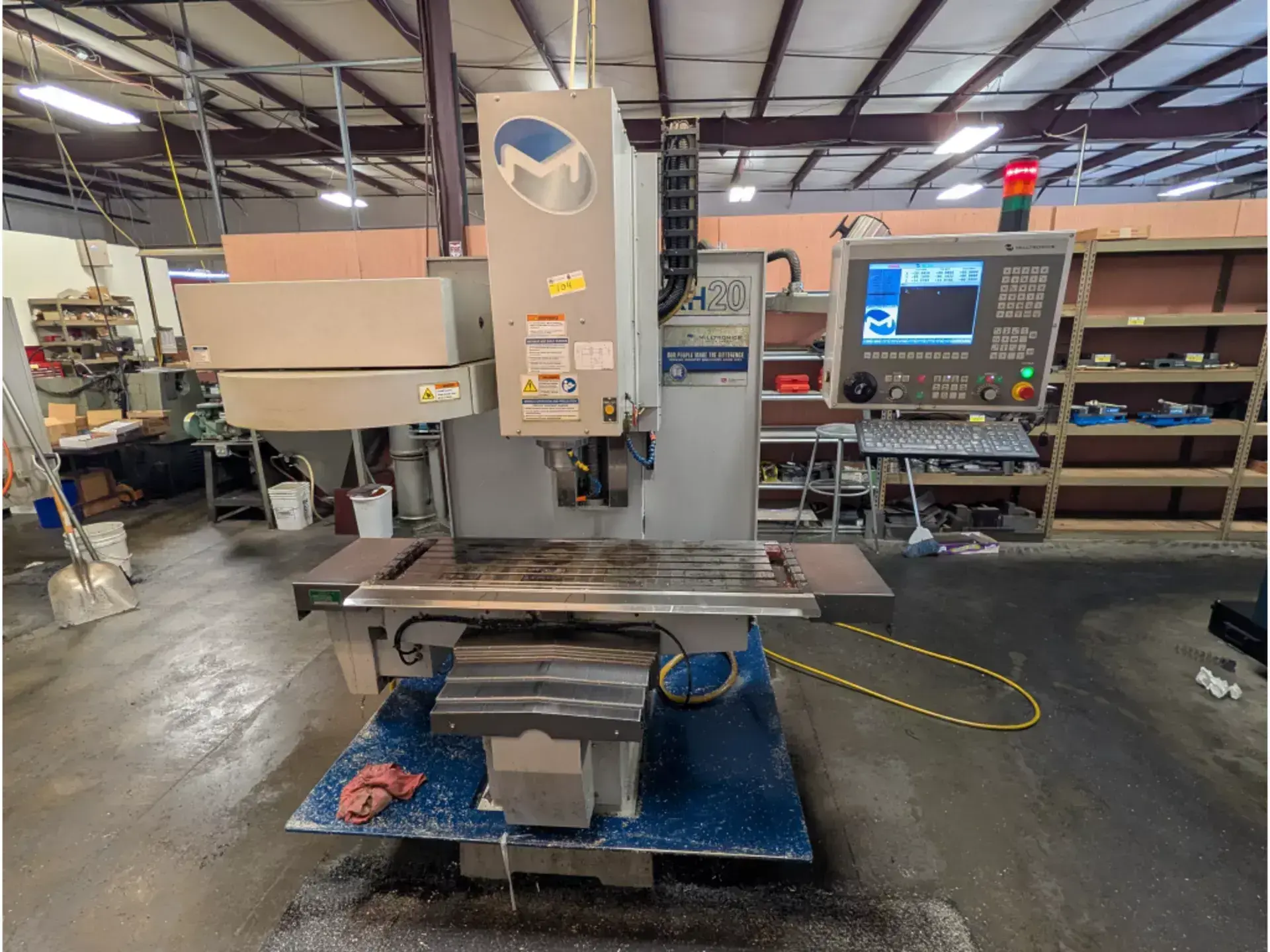

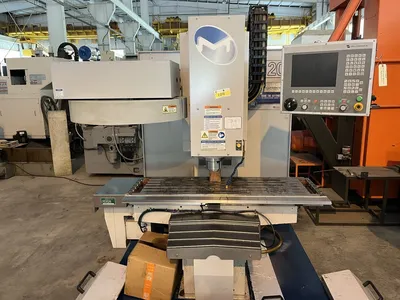

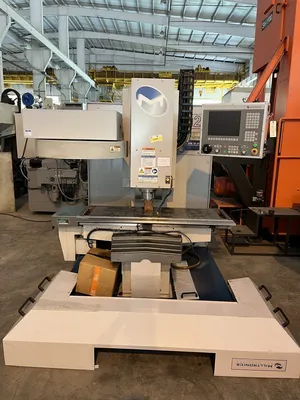

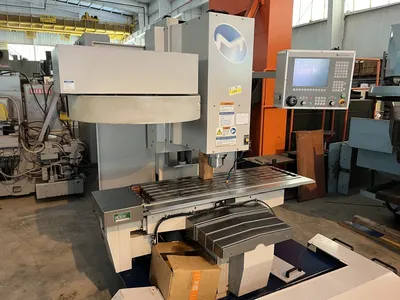

RH20 MILLTRONICS 3-AXIS CNC VERTICAL RIGID HEAD TOOLROOM BED-MILL VERTICAL MACHINING CENTER - 24-Position Carousel Type Automatic Tool Changer - CT40 - 40” X, 20” Y, 24” Z - Telaflex Way Covers - Coolant System - 2015
| X | 40" | 1,016 mm |
| Y | 20" | 508 mm |
| Z | 24" | 609.6 mm |
| Power | 24 hp | 17.9 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT40 | CT40 |
| Table-W | 16" | 406.4 mm |
| Table-L | 54" | 1,371.6 mm |
| # Axis | 3 | 3 |
| Dimensions | 129" x 82" x 103" | 129" x 82" x 103" |
| Weight | 8000 LBS | 8000 LBS |
RH20 MILLTRONICS CNC VERTICAL TOOLROOM RIGID-HEAD
BED MILL MACHINING CENTER
New 2015, Serial No. 12833, Model RH20,
Series Rigid Head
EQUIPPED WITH:

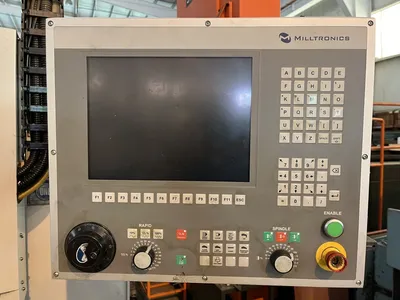

Milltronics CNC Control w/Programmable RPM
Rigid Head Design - Vector Spindle Drive
24-Position Carousel Automatic Tool Changer
Telaflex Metal Way Covers - Rigid Tapping
Precision Ground Ways & Oversize Saddles
Automatic Lubrication
Programmable Flood Coolant
CATALOG SPECIFICATIONS:
Table Working Surface 54" x 16"
Table Longitudinal Travel (X-Axis) 40"
Saddle Cross Travel (Y-Axis) 20"
Vertical Head Travel (Z-Axis) 24"
Table Load Capacity 2500 LBS
Spindle Nose to Column 21"
Spindle Nose to Table, Minimum 2"
Spindle Nose to Table, Maximum 26"
Spindle Taper CT40
Tool Diameter, Maximum 3.5"
Tool Length, Maximum 11"
Tool Weight, Maximum 15 LB
Spindle Speeds, Range 50 to 8000 RPM
Feed Rate, Maximum 300 IPM
Power Rapid Traverse Rate X,Y 500 IPM
Power Rapid Traverse Z 300 IPM
Spindle Motor, Horsepower Rating 18/12 HP
Overall Dimensions, W x D 129" x 82"
Overall Height 103"
Weight Approximately 8000 LBS
F.O.B. OUR WAREHOUSE
