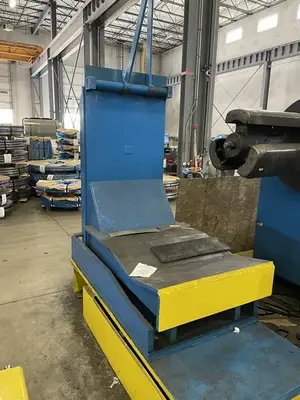

-Coil Lift:Lift only, no travel30" Wide Deck5" Dia. x 18" Stroke Hydraulic Lift Cylinder2 Coil Keepers

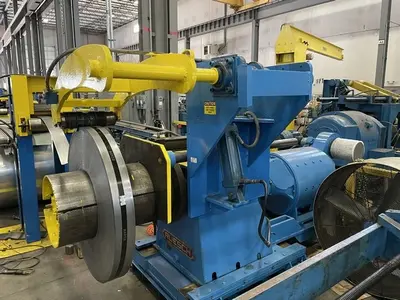

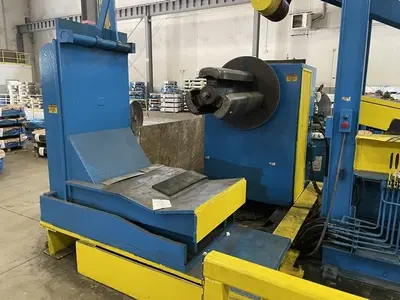

-Uncoiler:16" - 20" Expansion RangeHydraulic ExpansionAir BrakeHydraulic Threading DriveHydraulic Slide BaseSelf-contained Hyd unit
-Peeler / Holddown Unit:14" W Peeler BladeHydraulic Cylinders for up/down, in/out movement14" Face x 6" Dia. Rubber Coated Holddown RollHydraulic Cylinder Raise/Lower

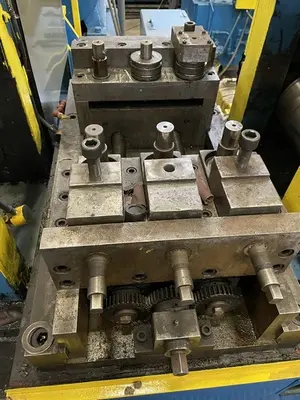

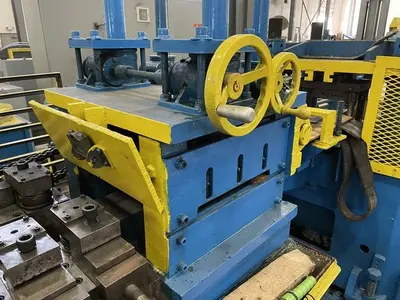

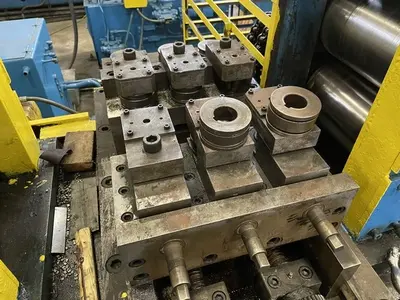

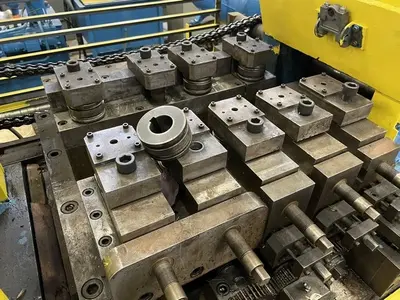

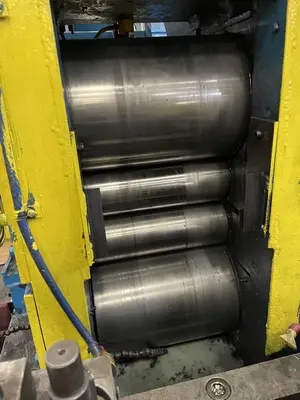

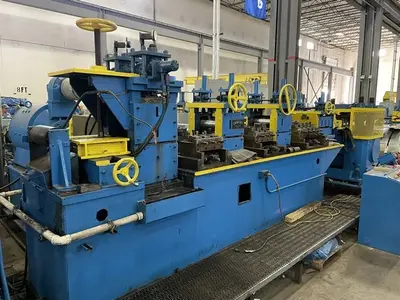

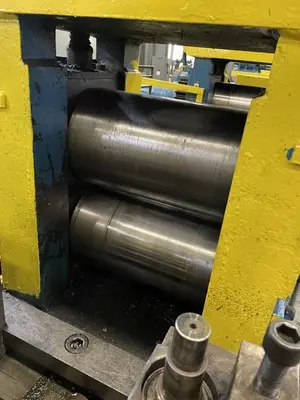

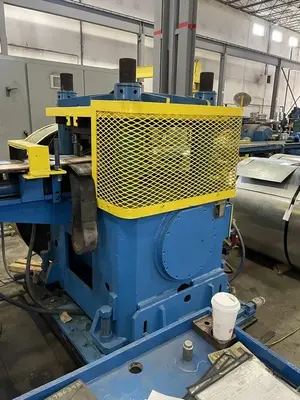

-Edging Unit:Entry Passline RollEntry Edge Guides,Manual Handwheel Adjustment3 Roll set per bankManually positioned strip holddown screw4 HI Rolling Mill:4.5" Dia. Work Roll, 13" Face10" Dia. Backup Roll, 13" FaceHydraulic Motor Adjusted Screwdowns200 HP DC Motor Driven, W/BlowerCoolant pump and tank in the baseFree standing cooling unitEdging Die Set #13 Roll set per bank"Missing the top die retainer block on 3 units"Single point adjustment for both banks of diesOperators side each die is independently adjustable2 HI Mill #18" Dia. Work Roll,Manual screw down AdjustmentHydraulic Motor Driven, bottom rollEdging Die Set #23 Roll set per bankSingle point adjustment for both banks of diesOperators side each die is independently adjustable2 HI Mill #28" Dia. Work Roll,Manual screw down AdjustmentHydraulic Motor Driven, bottom rollDecambering SectionOperators side bank; 5 sets of diesDrive side bank; 4 sets of dies7 total dies make up the decambering sectionDies #8 and #9 are set up as an edging section and areindependently adjustableSingle point adjustment for the entire bank in and outStraightener Unit4" Dia. Rolls, 3 over 2Bottom Rolls chain driven from 2 HI Mill StandExit Passline RollOverall Size: 16' L x 5' Wide
-4 Post Cutoff - Proma:60 Ton CapacityModel 60 CP-213" Shut Height4" Stroke25 Cuts/Min.11" Die SpaceShear Blade w/Hydraulic Cylinder Die return15 HP AC Motor, 1200 RPMExit Passline Roll

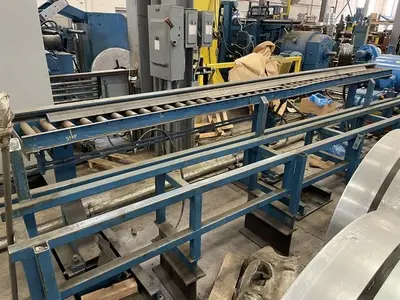

-Runout Conveyor Section: 15' longHydraulic Cylinder dump
-Stacker Table: 15' Long
-Drag Tension Stand:Air Cylinder for Pad Tension

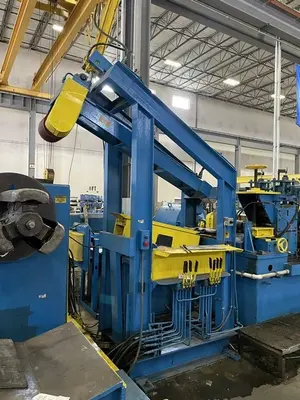

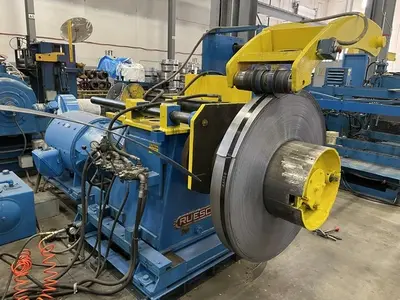

-Recoiler - Ruesch:Model: N2915Serial: 622920" Dia. x 32 Face MandrelManual Grip & ExpansionHydraulic Slide BaseHydraulic PushoffOverarm Separator125 HP DC Motor, 650 / 1500 RPM, 400V, W/BlowerInternal Reducer w/24.77:1 ratio

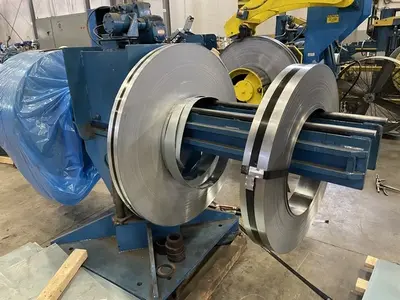

-2 Arm Turnstile:C-Hook Type Arm40" Arm LengthManual RotationPowered Pushoff

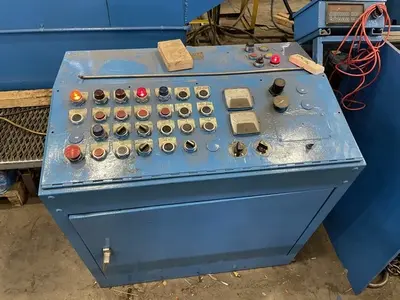

-Main Operators Control Panel:
-Hydraulic Power Units: (3) total
-Spare Mill rolls:

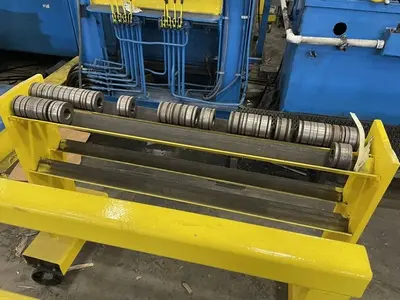

-Edging Dies:
