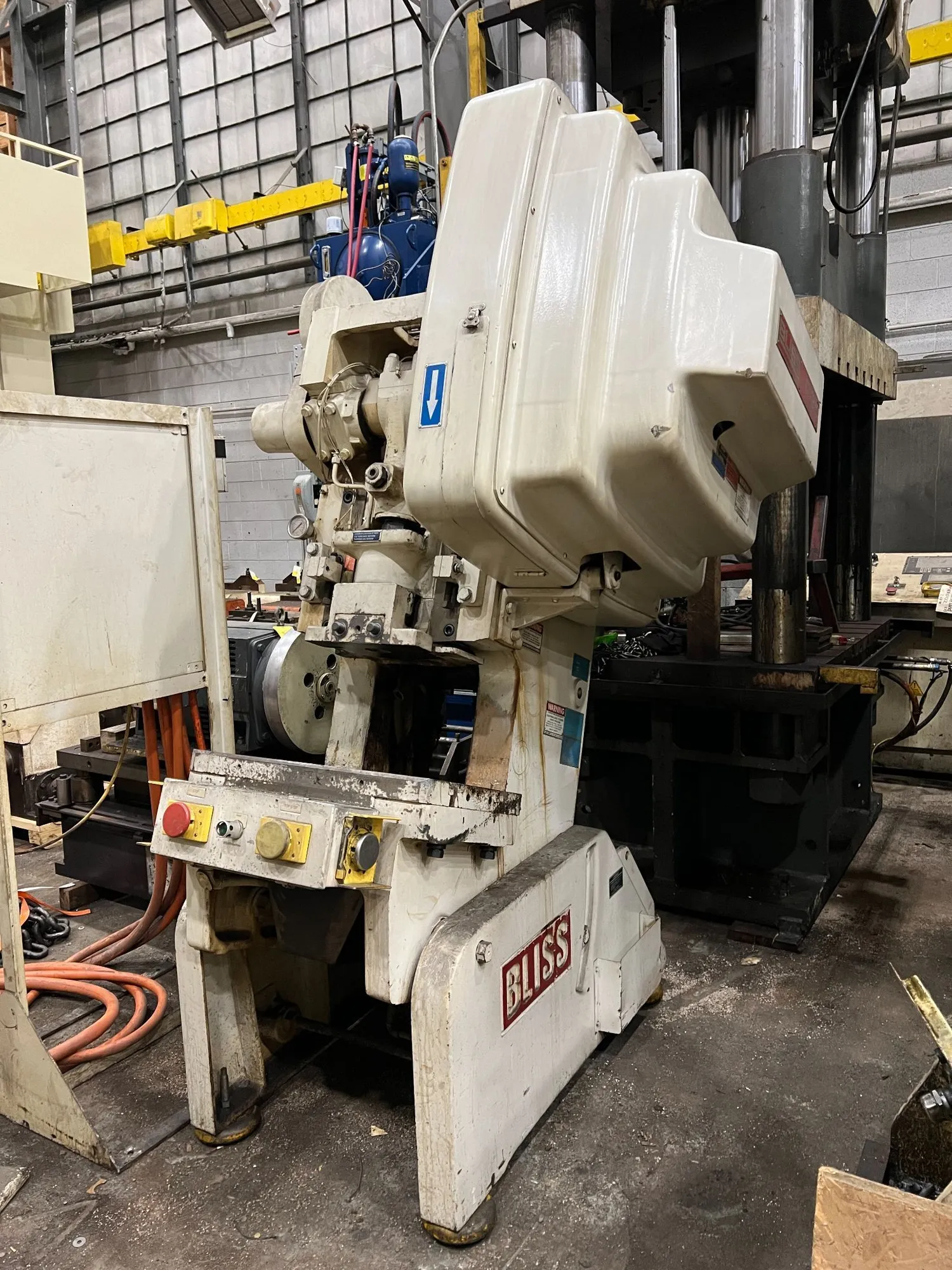

Used 35 Ton Bliss Model C-35 Flywheel OBI Press, 1995. 35T capacity, 3" stroke, 10.75" shut height, 120 SPM. Bed: 26.5"LR x 17"FB, Slide: 13"LR x 10"FB. Air clutch included, 2,202 hours. Ideal for reliable operations.
| Ton | 35 T | |
| Bed L-R | 26.5 in | |
| Bed F-B | 17 in | |
| Stroke | 3 in | |
| Adjustment | 2.5 in | |
| Shut Height | 10.75 in | |
| Speed (min) | 120 strokes/min. | 120 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Dimensions | 5'LR x 6'6"FB | 5'LR x 6'6"FB |
| Weight | 6,000 Lbs | 6,000 Lbs |
Capacity: 35 Ton
Stroke: 3"
Shut Height: 10.75"
Slide Adjustment: 2.5"
Speed: 120 SPM
Bed Area: 26.5"LR x 17"FB; 2" Thick Bolster Plate
Slide Area: 13"LR x 10"FB
Hours: 2,202
Air Clutch & Brake
Air Counterbalance Cylinders
Free Standing Electrical Panel
Free Standing Control Console
Single/Inch/Continuous Modes
Minarik AC300 Series Micro Drive
Bliss AddVantage 3 Brake Monitor
