20/28" x 40" VICTOR "S2040B" "PRECISION HIGH-SPEED" GAP-TYPE ENGINE LATHE - Inch/Metric - Tool Post - Coolant System
| Swing | 20" | 508 mm |
| Centers | 40" | 1,016 mm |
| Spindle Bore | 3.12" | 79.248 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 15 RPM | 15 RPM |
| Swing Over Cross Slide | 12.59" | 319.79 mm |
| Dimensions | 98" x 44" x 65"H | 98" x 44" x 65"H |
| Weight | 4500 LBS | 4500 LBS |

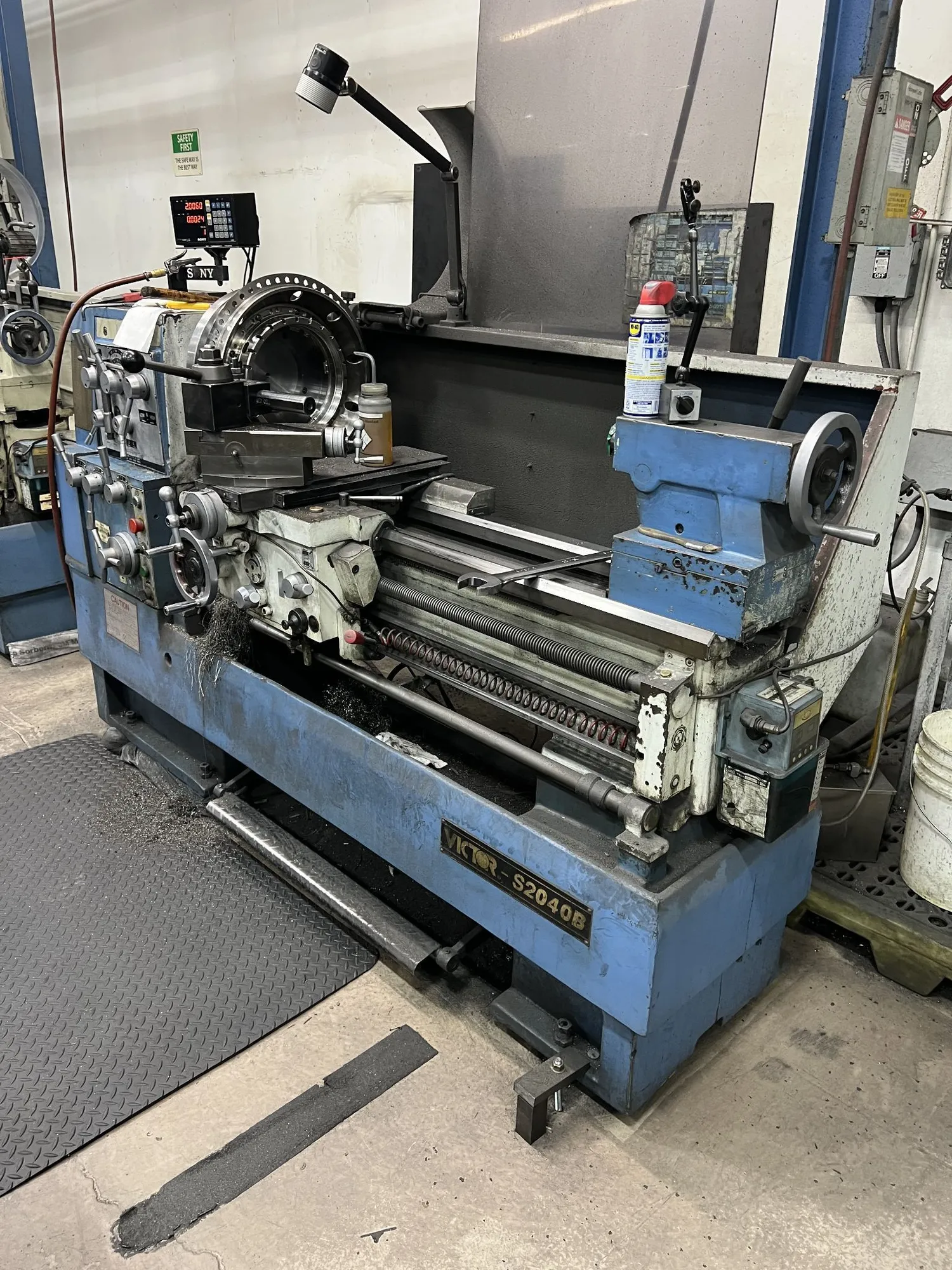

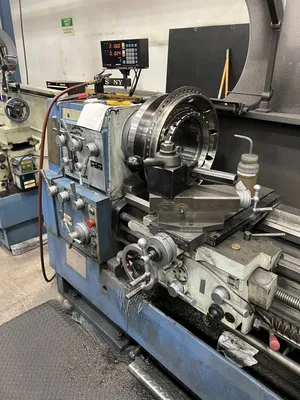

20/28" x 40" VICTOR "PRECISION HIGH SPEED"
GAP-TYPE ENGINE LATHE
Serial No 50041349, Model S2040B,
EQUIPPED WITH:
Hardened & Ground Bed Ways
Inch/Metric Threading
Tool Post
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Hole Thru Spindle 3.2"
Swing Over Bed Ways 20"
Swing thru Gap 27.5"
Swing Over Cross-Slide 12.59"
Distance Between Centers 40"
Spindle Nose D1-8 CAMLOCK
Tailstock, Spindle Taper #5 MT
(12) Spindle Speeds, Range 15 to 1500 RPM
Carriage Longitudinal Feeds .002 to .032 IPR
Cross-Slide Cross Feeds .001 to .0094 IPR
Thread Changes, Range 2 to 56 TPI
Metric Thread Changes, Range 0.5 to 14 MM
Main Motor, Horsepower 10 HP
Floor Space Required, L x D 98" x 44"
Overall Height 65"
Weight, Approximately 4465 LBS
F.O.B. ON WAY IN
