18/27” x 62” SHARP “1862S” GAP-TYPE PRECISION ENGINE LATHE - 3.06” Hole Thru Spindle - Inch/Metric Threading = 10" 3-Jaw Chuck
| Swing | 18" | 457.2 mm |
| Centers | 62" | 1,574.8 mm |
| Spindle Bore | 3.06" | 77.724 mm |
| RPM | 1,500 RPM | 1,500 RPM |
| Swing Over Cross Slide | 10.2" | 259.08 mm |

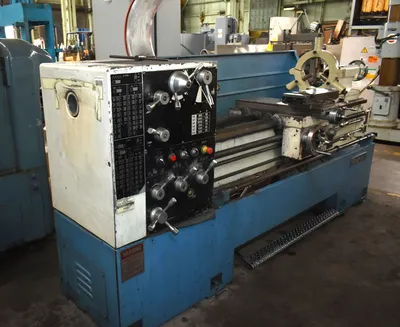

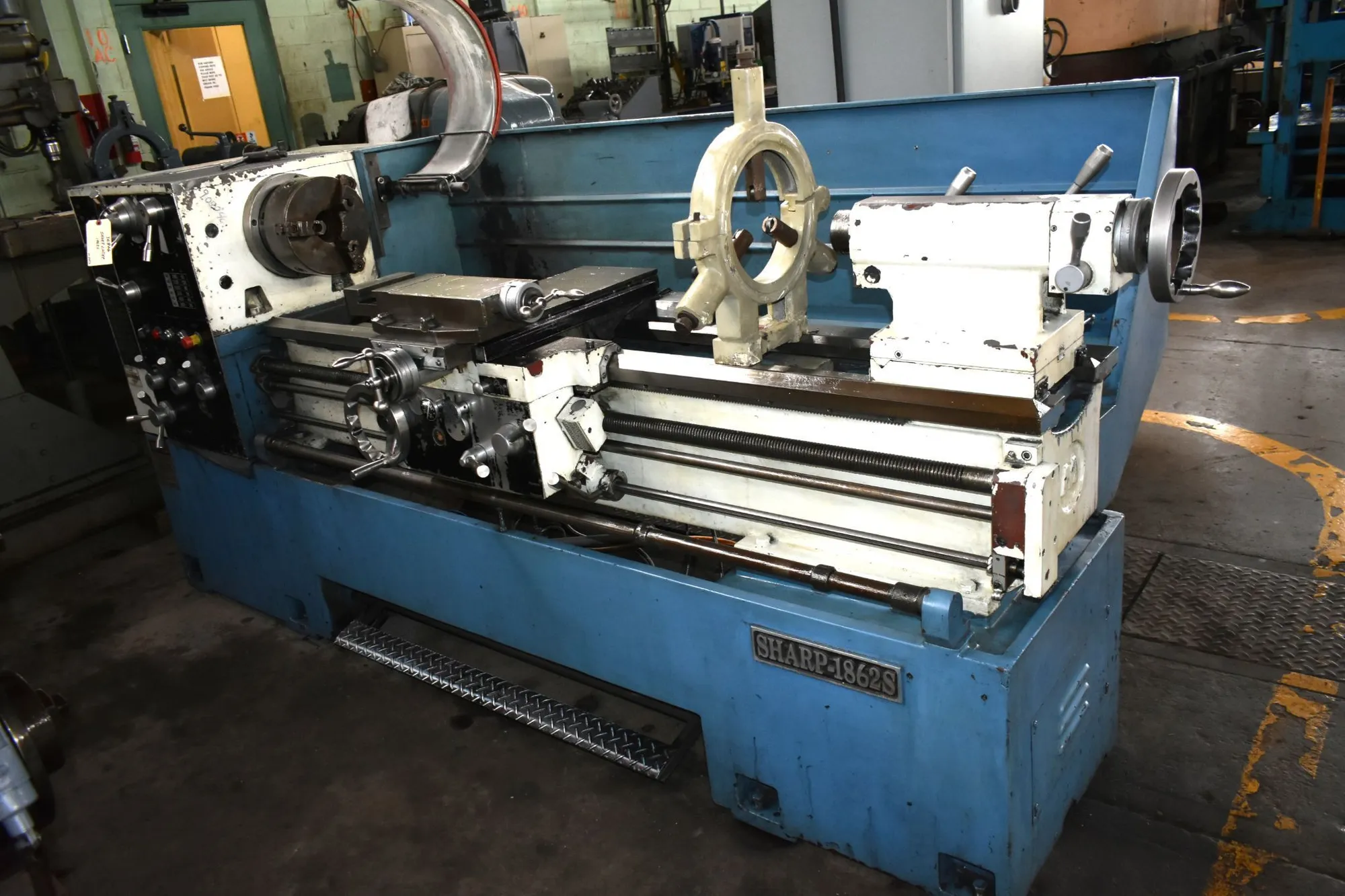

18/27" x 62" SHARP PRECISION GEARED HEAD
GAP-BED LATHE
Serial No 985013, Model 1862S
EQUIPPED WITH:
10" 3-Jaw Chuck
Inch/Metric Threading
Auto Lube System
CATALOG SPECIFICATIONS:
Hole Tru Spindle 3.06”
Swing Over Bed 18"
Swing Over Cross Slide 10.2"
Swing In Gap 27.12"
Distance Between Centers 62"
(12) Spindle Speeds. Range 18 to 1500 RPM
Spindle Nose D1-8 Camlock
Spindle Bore 3.06"
Tailstock Quill Taper 4 MT
Tailstock Quill Diameter 2.68"
Tailstock Quill Travel 5.5"
Main Motor, Horsepower 7.5 HP
Weight 4500 LBS
Overall Dimensions 9'8" x 4' x 4'2"
F.O.B. OUR WAREHOUSE
