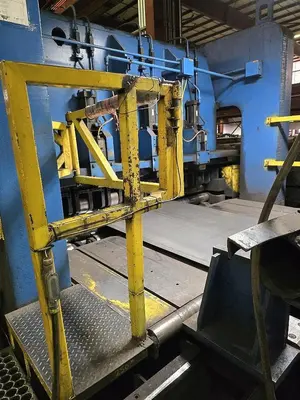

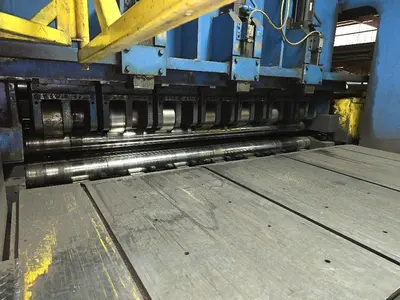

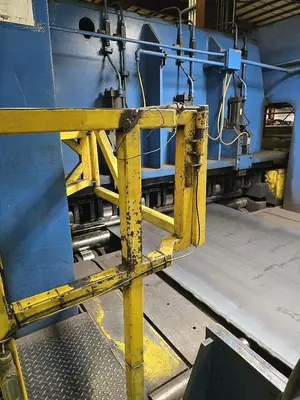

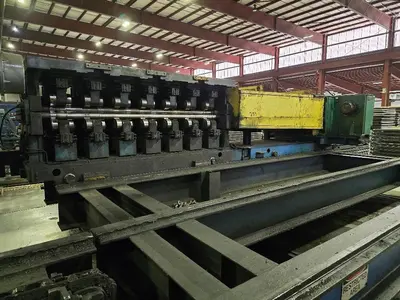

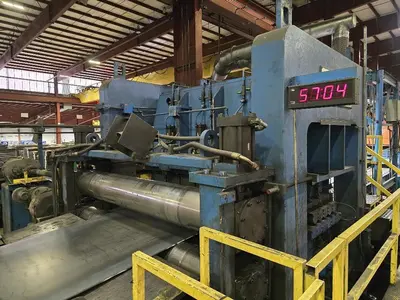

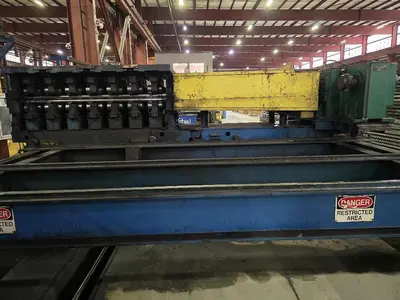

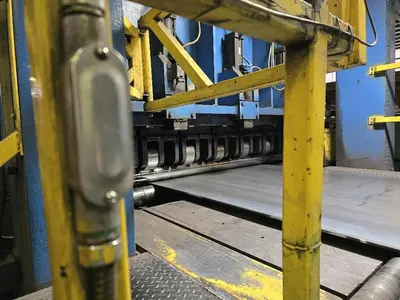

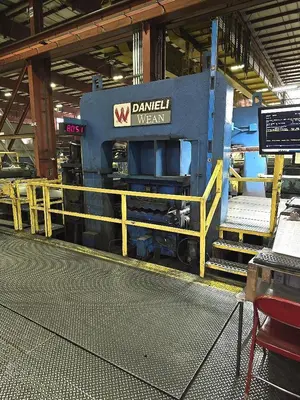

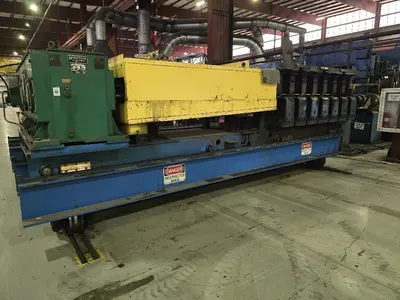

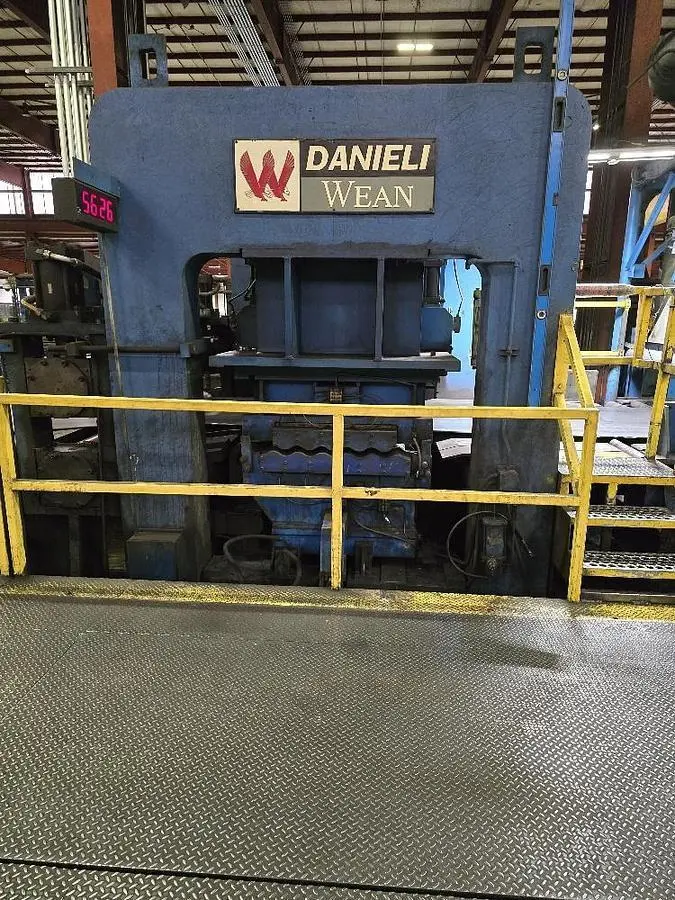

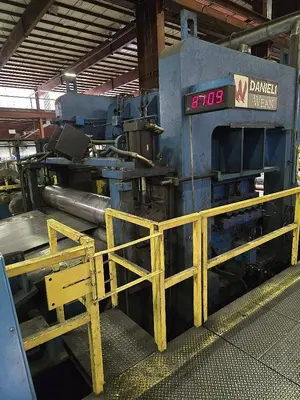

96" X .750" DANIELI-WEAN CASSETTE 4-HI LEVELER. STOCK #0325726

MANUFACTURER....................: Danieli-Wean

PRODUCT WIDTH...................: 96” max., 29” min.

THICKNESS.......................: .750” max. (45,000 PSI Yield Strength max.), .100” min.

Yield Strength:

MILD STEEL.....................: .625” x 96” wide, 60,000 PSI max.

HIGH STRENGTH..................: .500” x 96” wide, 100,000 PSI max.

LINE SPEED......................: 250 FPM max.

LINE DIRECTION..................: Left to Right

PINCH ROLL SIZE.................: 9.850” (250mm) dia x 102” (2600mm) face

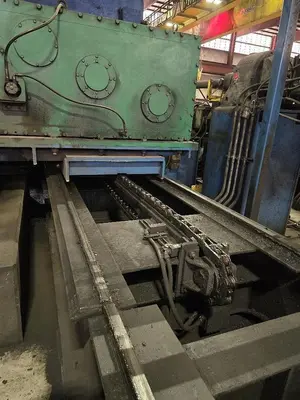

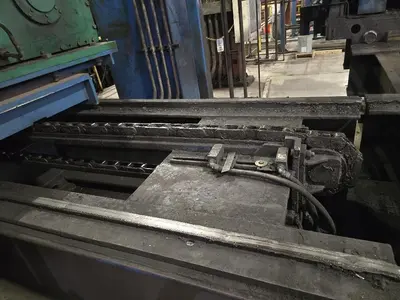

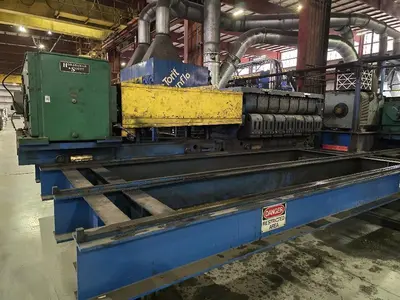

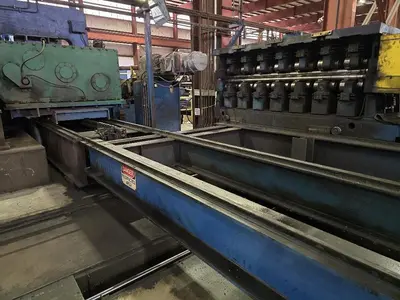

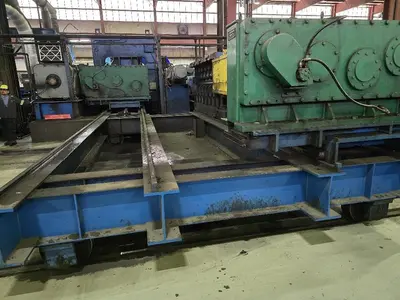

Dual-Cassette and Floor Mounted Injection System:

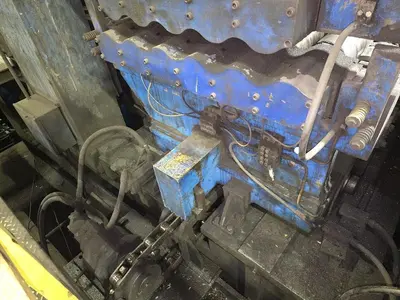

(11) Heavy-Gauge Cassette Specifications:

PINCH ROLL SIZE.................: 9.850” (250 mm) dia x 102” (2600 mm) face

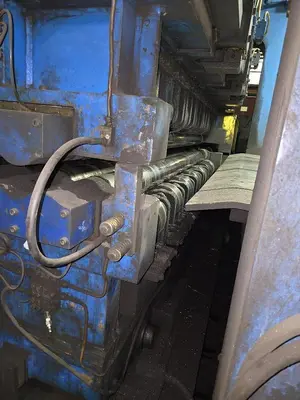

WORK ROLL QUANTITY..............: 11-roll (5 over 6)

WORK ROLL SIZE..................: 5.500” (140 mm) dia x 104” (2641 mm) face

BACK UP FLIGHTS.................: (3) top and (7) bottom

(17) Light-Gauge Cassette Specifications:

WORK ROLL QUANTITY..............: 17-roll (8 over 9)

WORK ROLL SIZE..................: 3.500” (89 mm) dia x 104” (2641 mm) face

BACK UP FLIGHTS.................: (3) Top and (7) Bottom

MAIN DRIVE MOTOR................: 500 HP DC, 500/1300 RPM


The dual-cassette design of this Danieli-Wean Cassette 4-HI Leveler allows you to handle both thinner and thicker materials, PLUS hot and cold plate leveling lines without needing two separate machines - this saves you space, time and money!

Additional Key Benefits:

- High Yield Strength: 100,000 PSI Yield (for .500" x 90"-materials) - ensuring your products meet strict industry standards.
- Eliminate Flatness Defects: Precision control of the Danieli-Wean leveler ensures your metal sheets are perfectly flat - no more costly rework or customer complaints!
- Reduce Internal Stress from Hot Rolling: For hot-rolled materials, the leveler reduces internal stress which results in stronger, more durable products that last longer.
- Improve Downstream Process Efficiency: By ensuring your metal sheets are perfectly flat and stress-free, Dual-Cassette levels like this Danieli-Wean streamlines downstream processes such as cutting, bending or welding. This reduces downtime and increases overall production efficiency.
- Reduce Maintenance and Precise Control: Dual-cassette design minimizes wear and tear on individual components, leading to reduced maintenance costs overtime. Additionally, the precision control of the leveler ensures consistent results every time - no more guesswork or inconsistent quality.
