USED PRO ECO 15,000# X 72
Overview
Specifications
CAPACITY....................: 15,000LBS
MAXIMUM O.D.................: 72"
MINIMUM O.D.................: 30"MAXIMUM I.D.................: 24"
MINIMUM I.D.................: 20"
MAXIMUM COIL WIDTH..........: 24"
MINIMUM COIL WIDTH..........: 1"

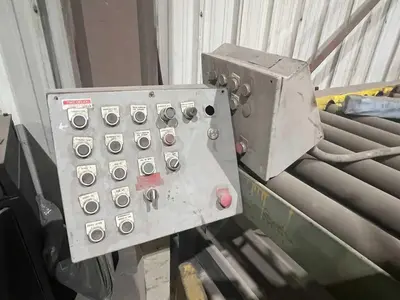

AIR REQUIREMENT @ 80 PSI....: 10 CFMMONORAIL LENGTH.............: 34'MONORAIL HEIGHT.............: 12'DOWNLAYER ROLL FACE.........: 75"DOWNLAYER PASS LINE.........: 41"DOWNLAYER EQUIPPED WITH.....: IN-LINE DISCBANDING TABLE ACCESORIES....: COUNTER BALANCE FRAME THREE CONICAL ROLLS FOR ROTATIONALSO EQUIPPED WITH..........: R&M HOIST COIL I.D. GRAB THREE CONVEYORS OPERATORS STATION ELECTRICAL CABINETS HYDRAULIC POWER UNITVOLTAGE.....................: 460PHASE.......................: 3HERTZ.......................: 60THREE CONVEYORS DETAIL:

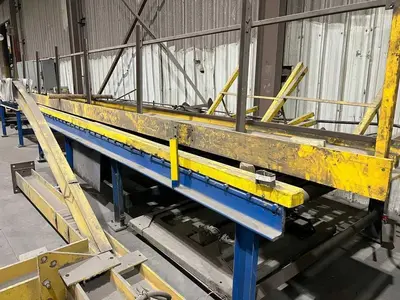

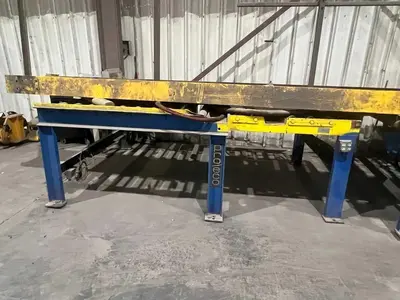

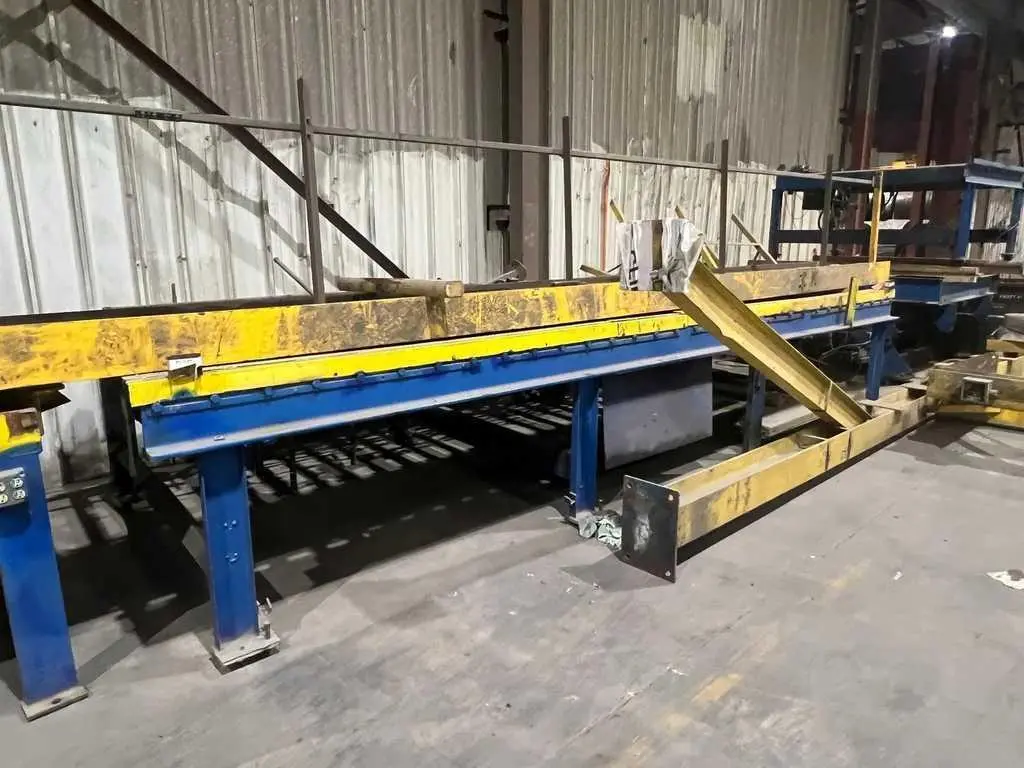

– 6' LONG; 75" ROLL FACE; 41" PASS LINE; CHAIN DRIVEN
– 10' LONG; 75" ROLL FACE; 41" PASS LINE
– 20' SECTIONS; 6' SCALE; (8) 6' SECTIONS & 4' PICK; ID GRAB
