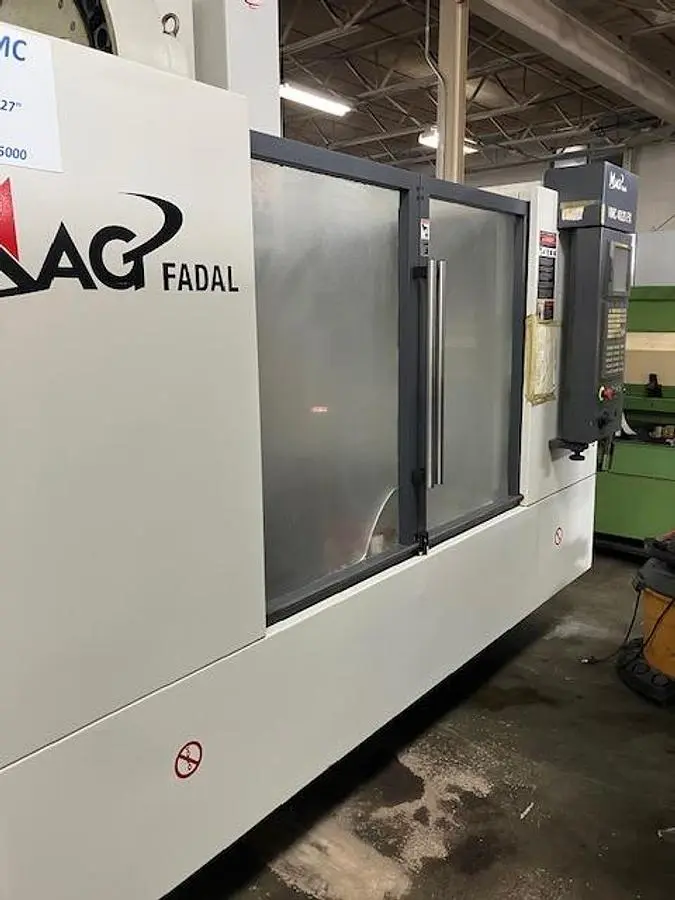

USED 2009 FADAL VMC-4020FX HT

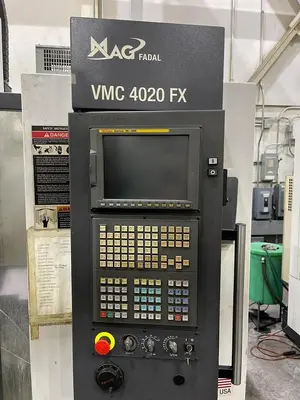

The 2009 Fadal VMC-4020FX HT is a used vertical machining center with a Fanuc 18i MB control system. This machine features an extended Z-axis travel of 27 inches and a spindle reaching up to 15,000 RPM, supporting advanced machining tasks with efficiency. It has a 48" x 20" table, 40" X-axis travel, and 20" Y-axis travel, and utilizes box ways to ensure durability and precision.

Operating on a 230 volts, 3-phase electrical system, the VMC-4020FX HT is equipped with a CT-40 spindle taper and a 24-position ATC side mount tool changer for efficient tool management. Rigid tapping is included for precise threading, and AC drives ensure smooth operation. Some tooling is also provided, although specific details on the tooling are not disclosed.

2009 Fadal VMC4020FX HT W/ Fanuc 18i MB Control Extended Z” and 15,000 RPM
 2 Machines available…..

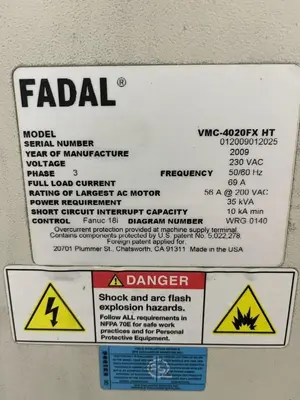

S/N 012009012025, 012009012046

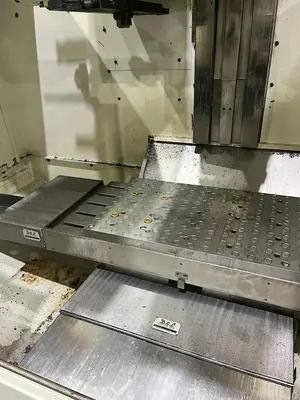

Table: 48" x 20"
Travels: 40" X  x  20" Y  x  27" Z
Box ways

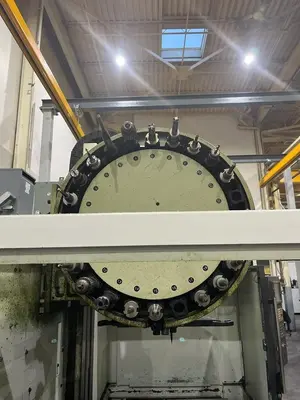

24 ATC side mount tool changer
15,000 RPM spindle
CT- 40 spindle taper
230 volts, 3 phase

Graphics
1.       Rigid Tapping
2.       AC Drives
3.       Some Tooling
