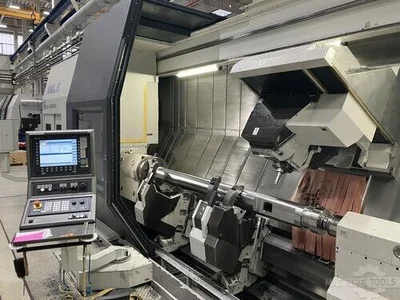

USED 2019 NILES N40MC-6000

Siemens 840D SI CNC ControlCollision monitoring sensor ACS 3-ARTISChip conveyor systemCoolant system 980l tankWorkpiece spindle:Spindle head according to DIN 55026 A15Bathing through 160 mmFront diameter Bearing 240mm2-stage gearbox, infinitely variable programmableDrive power at 100/60% duty cycle: 78/87kWSpeed ranges: 2Speed range I: 10-501 rpmSpeed range II: 10-1750 rpmTorque I, 60% duty cycle: 8000 NmTorque II, 60% duty cycle: 2308 NmC-axisHolding torque with backlash-free spindle brake: 3000 NmSpeed: 0-50 rpmMaximum torque (100/60% duty cycle): 3700/4430 NmSteady rest clamping range: 70-425 mmTurning, drilling, milling headFront diameter: Bearing 110mmInterface HSK100/C8TailstockQuill diameter 180mmStroke 170mmInternal taper MK6Axially force, manually adjustable 5-30 kNQuick tip height adjustment +/-0.15mm

Manufacturer: Niles
Model: N40MC-6000
Year: 2019
Condition: Used
Stock Number: 5654363
Turning length: 6,000 mm
Turning diameter: 820 mm
Z axis travel: 6,820 mm
X axis travel: +850 -25 mm
Total power requirement: 155 kW
Tailstock quill diameter: 180 mm
Tailstock stroke: 170 mm
Machine dimensions: 16,350 x 3,700 x 3,850 mm
Machine weight: 65 Ton
