USED COE PRESS EQUIPMENT COE CPR4-36 / CPPS-350-36-PO / CPR-15036
Overview
Description

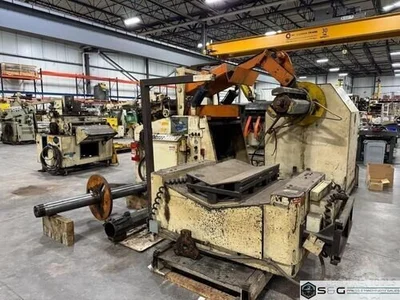

15,000 lbs. x 36 inch Coe Press Equipment Servo Coil Feed Line, Coe Feed with New Controls
Specifications
Coil Weight: 15000 pounds
Coil Width: 36 inches
Coil Thickness: .090 inches
Coe Press Equipment Coil Feed LineCoil Weight: 15,000 lbs.
Stock Width Capacity: 36 inches
Max Stock Thickness Capacity At Full Width: .090 inches
Stock Thickness Capacity: .090" x 36" Wide
Stock Thickness Capacity: .187" x 12" Wide

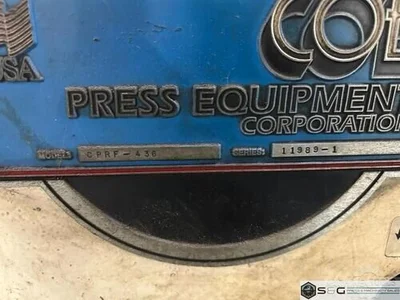

Coe Press Servo Roll Feed Model No. CPRF-436
Four inch diameter upper and lower feed rolls
Piloting upper feed roll
Adjustable stock width edge guides
Entry cascade loop support rollers
Cabinet base mounted with adjustable pass line

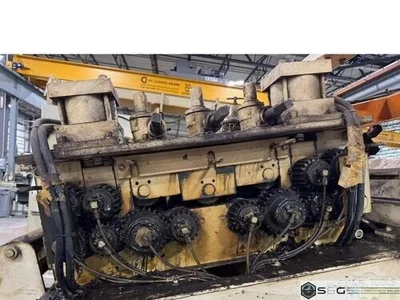

Coe Press Powered Coil Straightener Model No. CPPS-350-36-PO
Seven straightening rolls x 3.5" diameter rolls
Entry and exit pinch rolls
Stock width edge guides
Coil hold down arm with motorized end wheel
Stock peeler table
Adjustable edge guides

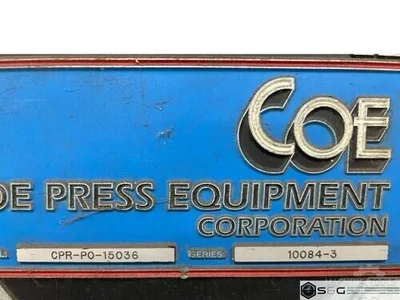

Coe Press Coil Reel Model No. CPR-150-36-PO
Three leaf mandrel
Hydraulic expansion
Jog drive
Air brake for tensioning
Traveling coil load car
Price Includes: The quoted price includes a completely new servo control system, custom-built, professionally installed, and fully tested by Coe Press Equipment to ensure seamless integration and performance.
Reel and Straightener: These units will undergo a comprehensive 100% cycling and mechanical validation process. The scope of work also includes thorough cleaning, precision sanding of the rolls, and professional painting to your specific color requirements.
