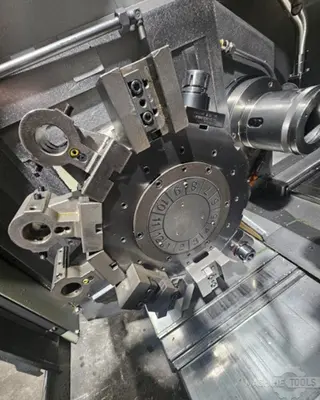

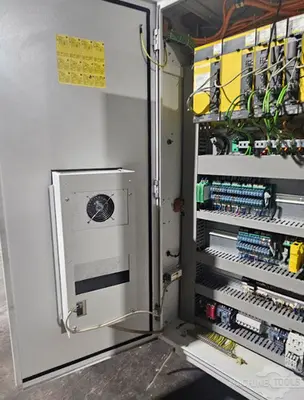

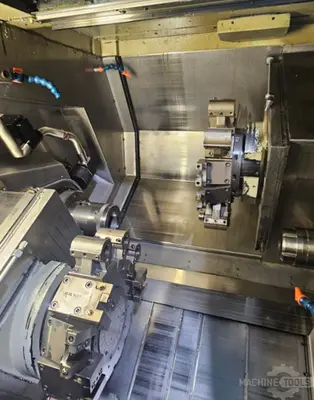

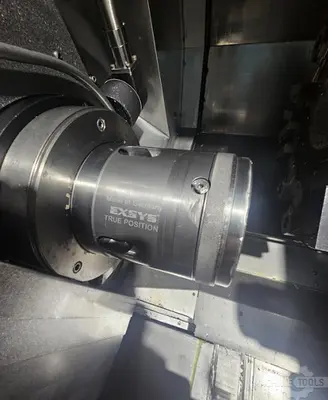

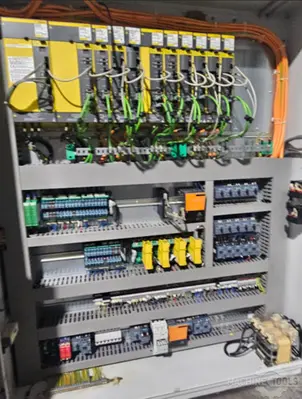

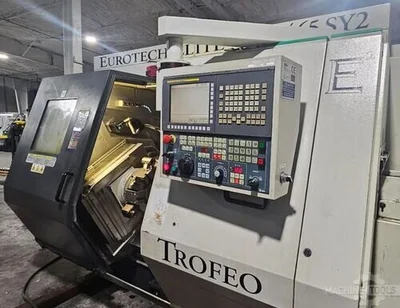

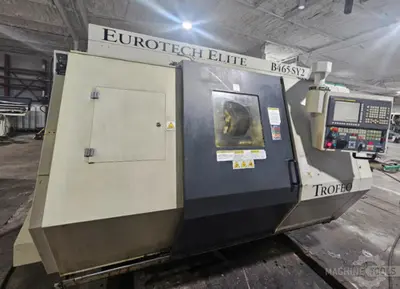

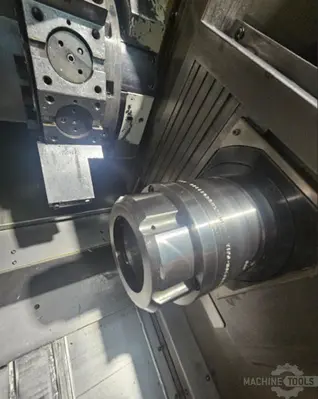

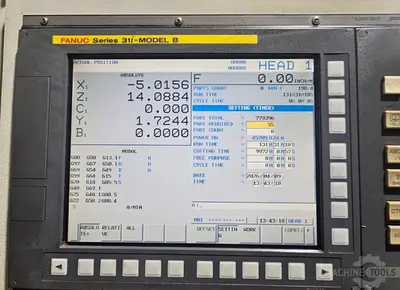

8” X 24.8” CNC Turning Center with Fanuc F1i Multi - Channel Control, 30° Slant Bed, (2) Spindles, (2) Turrets, E - Axis Clear Shift Back Spindle, 1 - Axis Simultaneous Machining + 2 Axes for CNC Controlled Gantry Parts Catcher, Disk Brakes for Both Main & Sub Spindles, Rigid Tapping, Sub - Spindle Ejector and Air Blow, Eurotech Tool Monitoring System, Double Tool Probe and Air Conditioned Electronics Cabinet.GENERAL SPECIFICATIONS Machining CapacityMax Bar Capacity: 2.75”Max Turning Diameter: 8”Max Swing Y - Axis Stroke (Both): 3.8”Chuck WorkChuck Diameter (Main & Sub Spindle): 8”Type: HydraulicMax Speed: 4,000 RPMMain Spindle Draw - Tube Capacity: 2.75”Spindle Through Bore Capacity: 3.03”Spindle Speed Range (Infinitely Variable): 4,000Variable Speed Steps: Direct DriveSpindle Motor: 35 HpMotor Type: S SeriesSpindle Nose: A2-5Sub SpindleDrawtube Capacity: 1.77” Spindle Through Bore Capacity: 2.17”Spindle Speed Range (Infinitely Variable): 5,000 Spindle Drive Motor Max Rating: 15 HPSpindle Nose: A2-5Slide Movement (B - Axis): NC ControlSlide Stroke (B - Axis): 26.37”Upper TurretNumber of Tool Stations (Main Spindle): 12Z - Axis Slide Stroke: 24.8”X - Axis Slide Stroke: 6.7”Lower TurretNumber of Tool Stations (Main Spindle): 12Z - Axis Slide Stroke: 21.26”X - Axis Slide Stroke: 6.7”Revolving Tool Attachment Upper / Lower TurretNumber of Upper Turret Positions: 12 MaxNumber of Lower Turret Positions: 12 MaxDriver Motor Max Rating: AC HP 5Revolving Tool Axis: X, C, Z & YY - Axis Stroke (Both): +1.97” / -1.57”Machine DimensionsWidth: 85”Height: 87”Length w/ Chip Conveyor: 179”Machine Weight w/ Chip Conveyor: 16,314 LbsINCLUDES: Fanuc F1i Multi - Channel Control, 30° Slant Bed, (2) Spindles, (2) Turrets, E - Axis Clear Shift Back Spindle, 1 - Axis Simultaneous Machining + 2 Axes for CNC Controlled Gantry Parts Catcher, Disk Brakes for Both Main & Sub Spindles, Rigid Tapping, Sub - Spindle Ejector and Air Blow, Eurotech Tool Monitoring System, Double Tool Probe and Air Conditioned Electronics Cabinet.
