| Arm Length | 4' | 1.2 m |

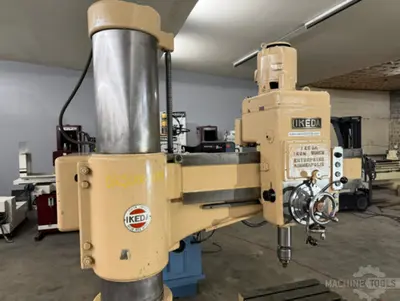

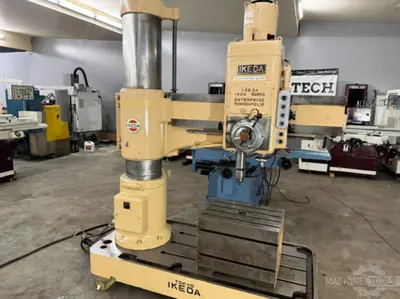

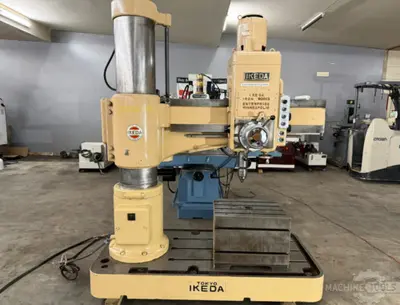

54.5” X 56.75” Radial Arm Drill with 12 Speeds and #5 Morse Taper Spindle.GENERAL SPECIFICATIONS Column Diameter: 13-⅝”Arm Length: 54-½”Spindle Speeds: 30 - 1,440 RPMSpindle Travel: 12”Spindle Diameter: 3-⅝”Minimum Distance from Column to Spindle Center: 9”Max. Distance From Colum to Spindle Center: 52-⅝”Min. Distance From Spindle to Base: 15-¼”Max. Distance From Spindle to Base: 56-¾”Base Working Surface: 57-¼” X 36”Base Height: 8-½”Head Traverse on Arm: 47”Drive Motor: 5 HPSteel Drilling Capacity: 2-¼”Iron Drilling Capacity: 2-⅝”Steel Tapping Capacity: 1-¾”Iron Tapping Capacity: 2”Steel Boring Capacity: 4”Iron Boring Capacity: 6”Approx. Dimensions: 82” X 36” X 96”Approx Weight: 7,700 Lbs (Excluding Motor)INCLUDES: 12 Speeds and #5 Morse Taper Spindle.
