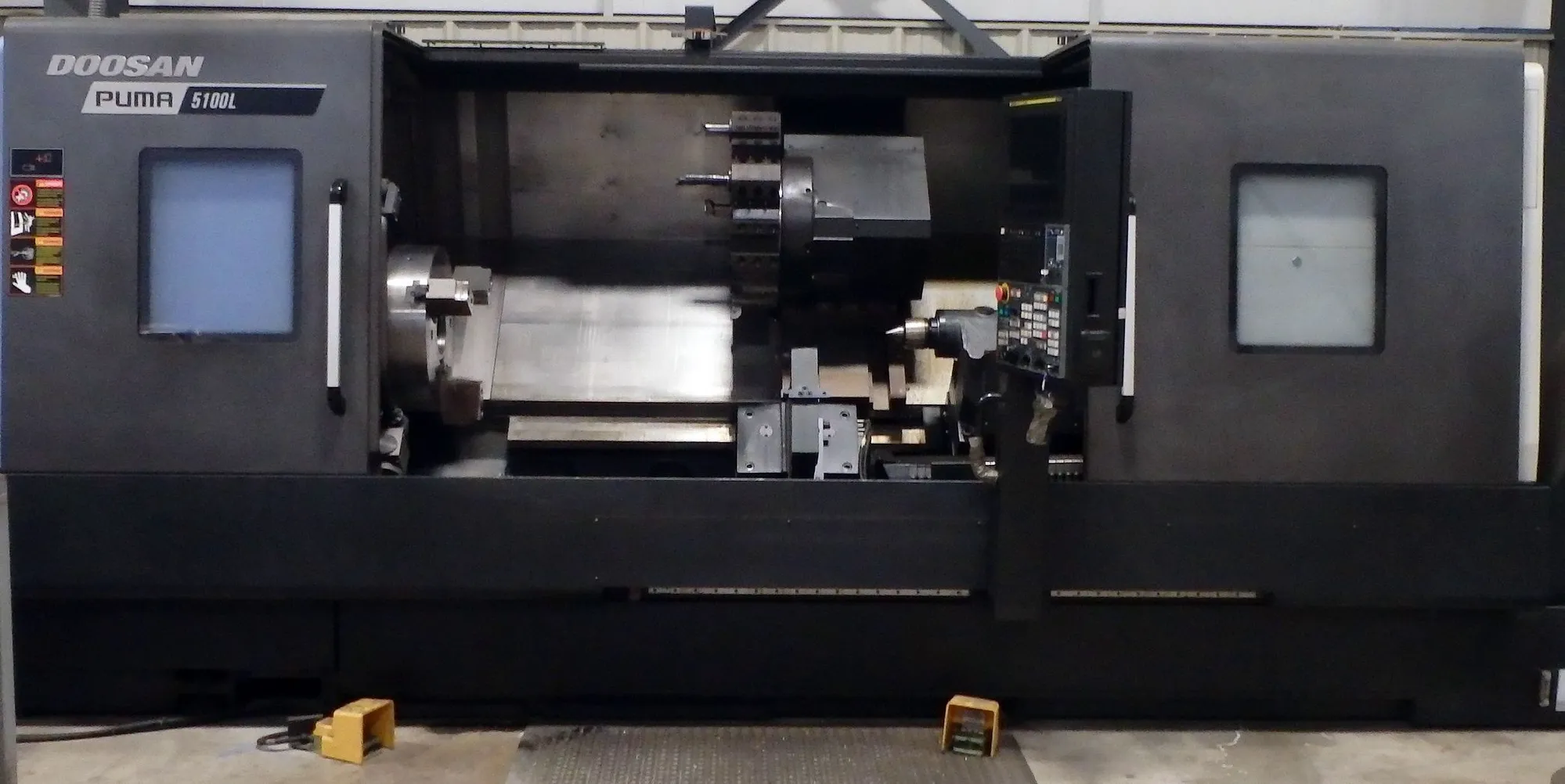

USED 2022 DOOSAN PUMA 5100LB
Overview
Description
2022 Doosan Puma 5100LB CNC Turning Center with Fanuc i-Series Control, 21" Chuck, Tool Presetter, Prepped for Hydraulic Steadyrest.
Specifications
| Swing | 35.4" | 899.16 mm |
|---|---|---|
| Machining Length | 82" | 2,082.8 mm |
| # Axis | 2 | 2 |
| Chuck Size | 21" | 533.4 mm |
| Bar Capacity | 6.6" | 167.64 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 25.6" | 650.24 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc i Series) | CNC (Fanuc i Series) |
| Dimensions | 232" x 90" x 90" | 232" x 90" x 90" |
| Weight | 26,565 LBS | 26,565 LBS |
Max. Swing.......................35.4"
Max Turning Diameter.............26"
Max. Machining Length............82"
X-Axis Travel....................14.3"
Z-Axis Travel....................84.8"
Spindle Motor....................50 HP
Spindle Speed....................2,000 RPM
Spindle Bore.....................7.1"
Max Bar Capacity.................6.5"
Number of Tool Positions.........10
Rapid Traverse Rate (X,Z)........630,787 IPM
Dimensions.......................232" x 90" x 90"
Machine Weight...................26,565 LBS
Equipped With
Doosan Fanuc i-Series CNC Control
21" SEOM 3-Jaw Hydraulic Chuck
Hydraulic Tool Presetter
Prepped for Hydraulic Steady Rest
Coolant Tank & Pump
Chip Conveyor
**MACHINE HAS 1,438 CUTTING HOURS**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
