Used

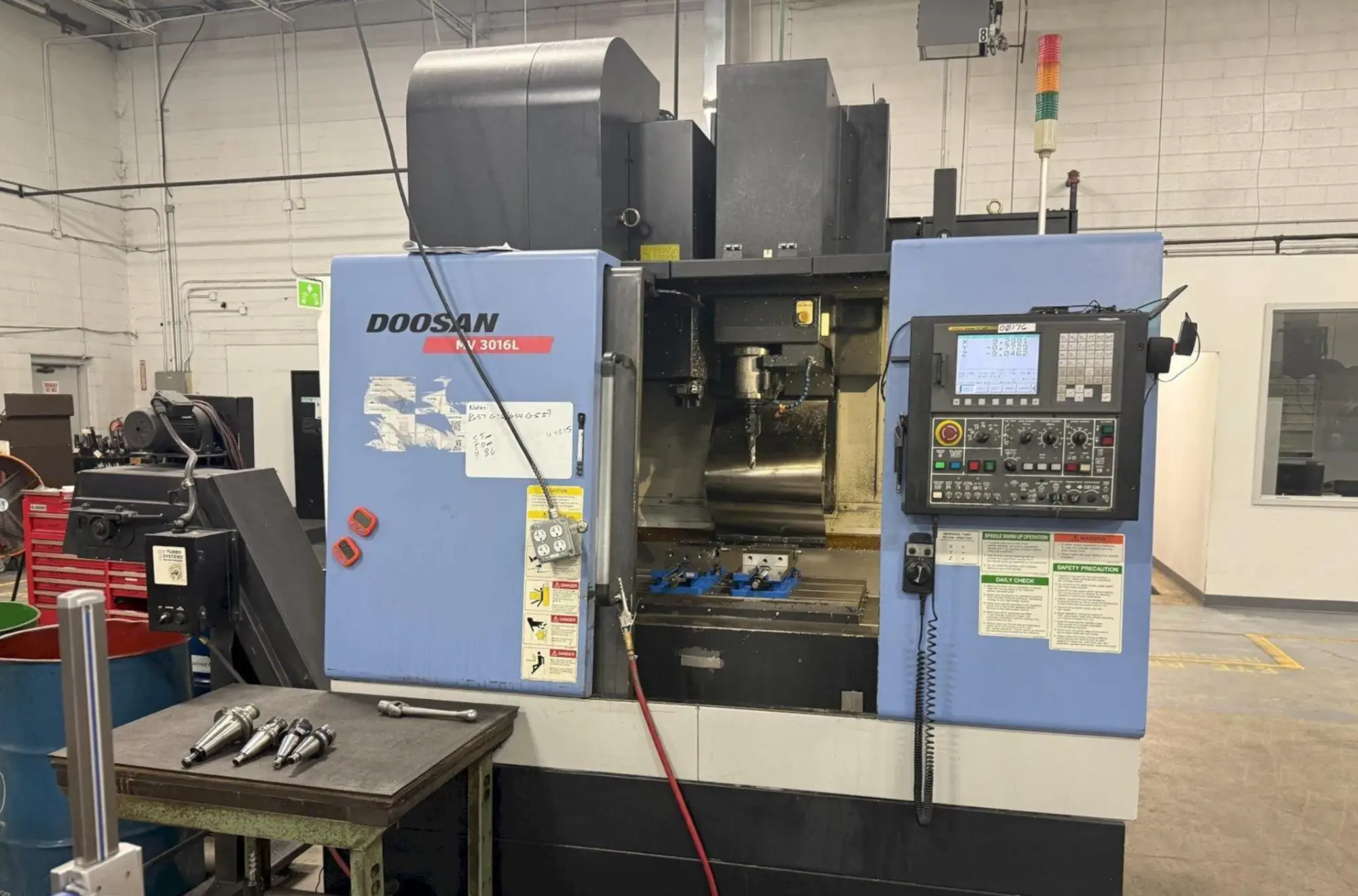

USED 2007 DOOSAN MV 3016L

Ohio, United States
1,570Listings|482Followers
Overview
Vertical Machining Centers

Used Vertical Machining Center features Fanuc 0i-MC CNC control, chip conveyor, and a coolant tank & pump. With a 30" X travel, 12,000 RPM, and a CAT 40 taper.

Specs
X
30"
762 mm
Y
16.1"
408.94 mm
Z
20.1"
510.54 mm
Power
20 hp
14.9 kW
RPM
12,000 RPM
12,000 RPM
# ATC
30
30
Taper
CAT 40
CAT 40
Table-W
17.7"
449.58 mm
Table-L
36.2"
919.48 mm
# Axis
3
3
Control
CNC (Fanuc)
CNC (Fanuc)
Dimensions
117" x 95" x 108"
117" x 95" x 108"
Weight
12,500 pounds
12,500 pounds

Table Size 36.2" x 17.7"
Table Capacity 1,332 pounds
Rapid Traverse Rate (X/Y/Z)1,181 ipm

Equipped With

- Fanuc 0i-MC CNC Control
- Chip Conveyor
- Side Mount Tool Changer
- Coolant Tank & Pump
