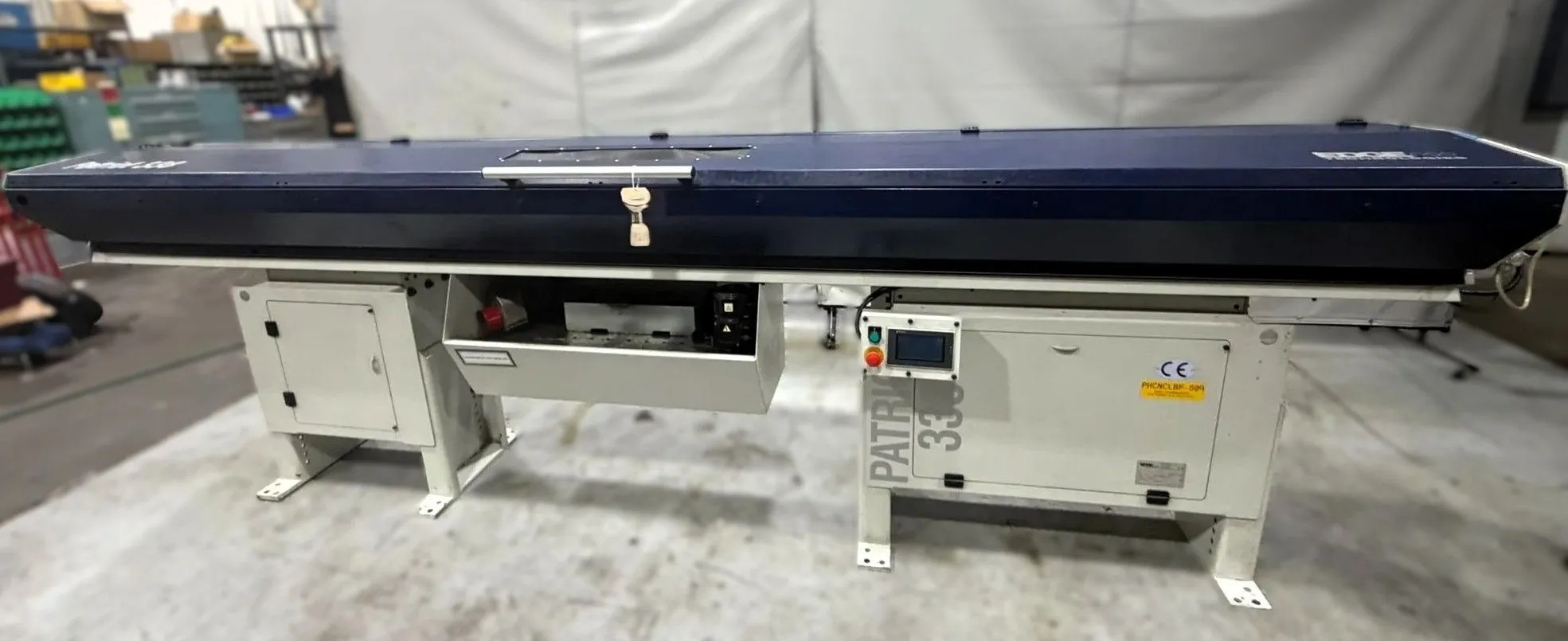

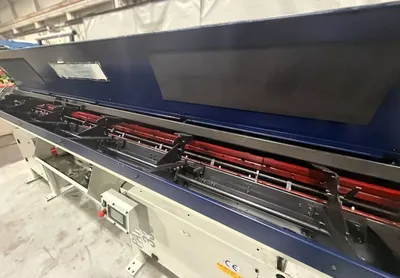

USED 2011 EDGE TECHNOLOGIES PATRIOT 338

EDGE TECHNOLOGIES PATRIOT 338, New in 2011.
3mm-42mm.
Quick-Change Guide Channels.
Dual Anti-Vibration Devices.

General Specifications:
Bar diameter capacity: 3mm to 42mm (0.118” to 1.653”)
Automatic loading magazine – 12 linear inches of Rack Capacity
Polyurethane quick-change guide channel – noise & vibration dampening
Hydrodynamic support via high-volume oil flow into channels
Dual anti-vibration devices — one internal to the bar feeder, the other mounted between the telescopic nose and the lathe headstock

Bar Diameter 3mm – 42mm (0.118” – 1.653”)
Bar Length 1000mm – 3800mm (39.4” – 12’5”)
Magazine Rack Capacity 304mm (12”)
Maximum Remnant Length 406mm (16”)
Bar Loading Cycle Time Approx. 30 sec for 12’ bars
Feed Force (Pusher Torque) Max 450 N, adjustable
Forward Feed Rate 593mm/sec (1400 in/min) max, adjustable
Return Feed Rate 1000mm/sec (2360 in/min) max, adjustable
Power Consumption 1.5 kW/2 kVA
Operating Voltage 230 V/60 Hz – 3 phase
Control Voltage 24V DC
Oil Capacity 57 liters (15 gallons)
Oil Viscosity ISO 100 cST – Machine oil
ISO BG32 – Air oil
Compressed Air Supply 6 bar (90 psi)
Compressed Air Consumption ~8 liters per loading cycle
Machine Weight (w/out Oil) 1130 kg (2500 lbs)
Material Straightness Specification 0.007” TIR/foot of material (V blocks, 6’ equidistant)

12mm channels
