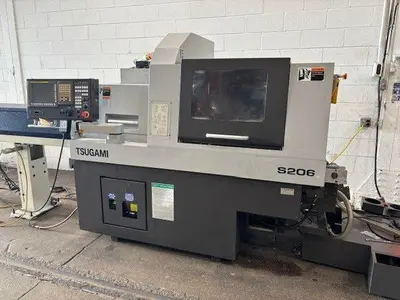

TSUGAMI S206 CNC SWISS LATHE WITH EDGE MAGAZINE BARFEED

Equipped With
TSUGAMI S206 CNC SWISS LATHE WITH EDGE MAGAZINE BARFEED
New: 2011
Specifications:
Capacity:  19.05 mm
Axis Configuration:  8-Axis
Machine Type:  Convertible Swiss Lathe
Main Spindle Speed:  200 – 12,000 RPM
Main Spindle Motor:  2.2 / 3.7 kW
Main Spindle Indexing:  Full C-Axis
Sub-Spindle Speed:  200 – 12,000 RPM
Sub-Spindle Motor:  1.5 / 2.2 kW
Sub-Spindle Indexing:  Full C-Axis
Maximum Bar Diameter:  20 mm (3/4 in)
Maximum Machining Length:  210 mm (Direct Drive Rotary GB)
250 mm (Static Guide Bushing)
80 mm (Carrier Type Rotary GB)
45 mm (Bushingless)
Maximum Drilling Diameter:  10 mm
Maximum Tapping Diameter:  M8
Deep Hole Drilling Diameter:  8 mm
Maximum Back Spindle Chucking Diameter:  20 mm
Maximum Back Spindle Drilling Diameter:  8 mm
Maximum Back Spindle Tapping Diameter:  M6
Tool Spindle Drilling Capacity:  6 mm (Front / Back Tool Post)
8 mm (Rear Tool Post)
Tool Storage Capacity:  24 Standard / 35 Maximum
Tool Size:  12 × 12 × 100 mm
Rapid Traverse Rate:  32 m/min
(X1, Y1: 24 m/min / Y2: 15 m/min)
Tool Spindle Speed:  200 – 8,000 RPM
Power Requirements:  14.3 kVA
Compressed Air Requirement:  0.4 MPa or Above
Air Discharge Rate:  40 NL/min
Machine Dimensions:  83 in × 47 in × 74 in
Machine Weight:  7,055 lbs
Equipped with:
Fanuc 31iTB CNC Control

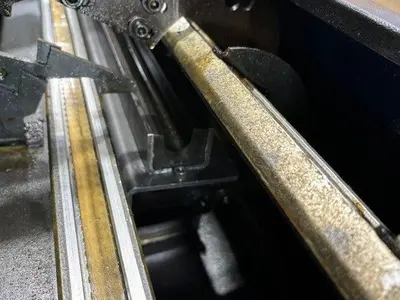

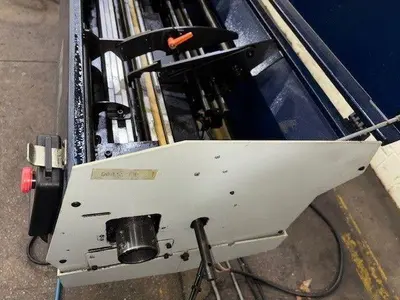

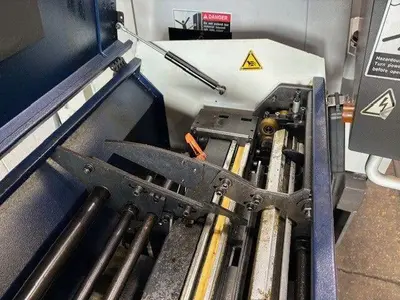

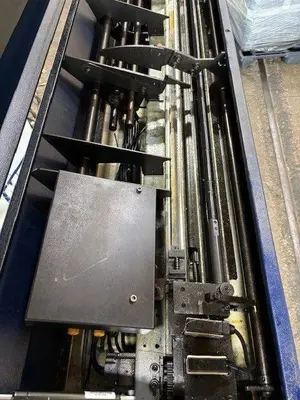

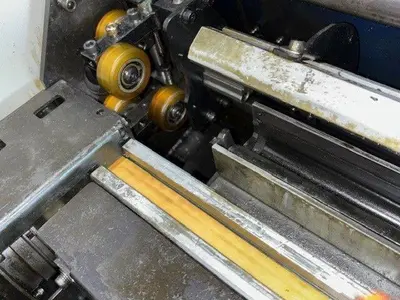

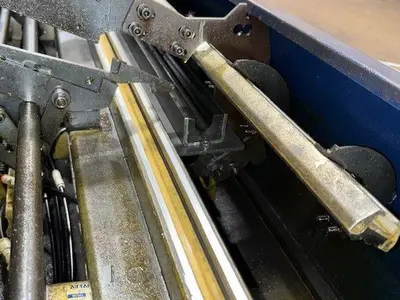

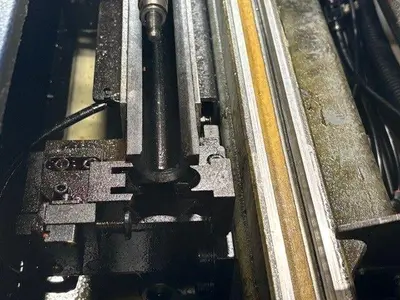

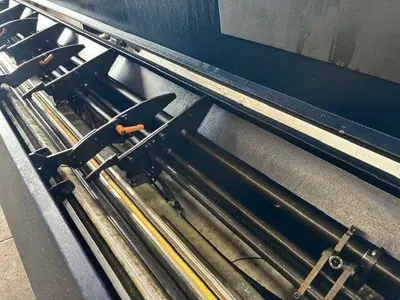

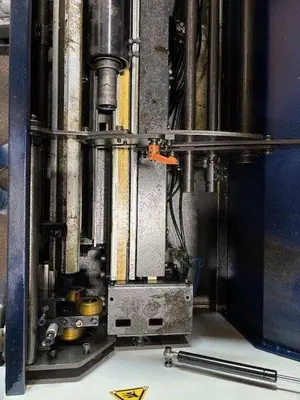

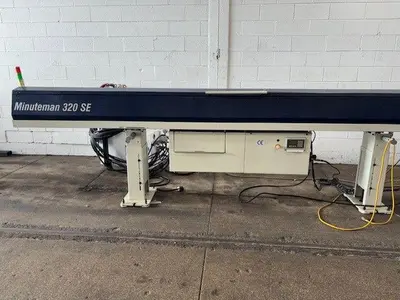

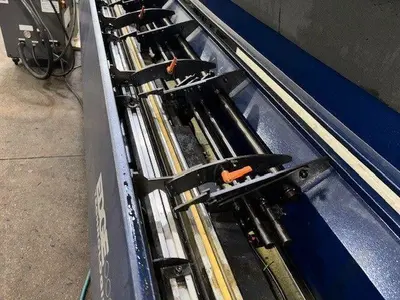

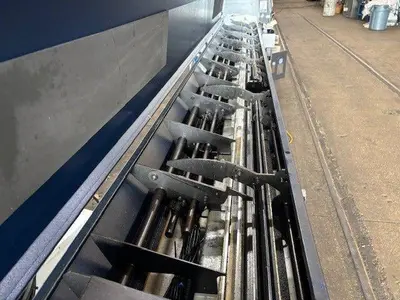

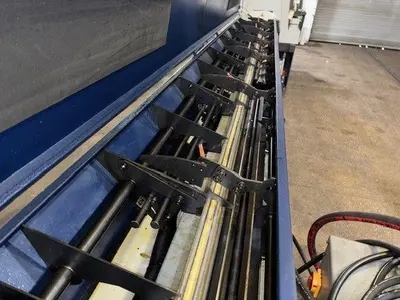

Edge Technologies Magazine Bar Loader
Fire Suppression System

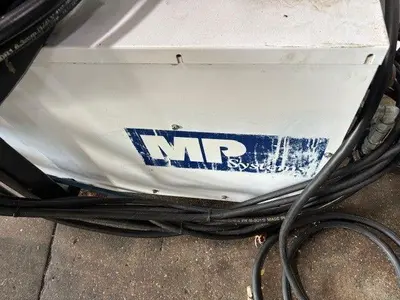

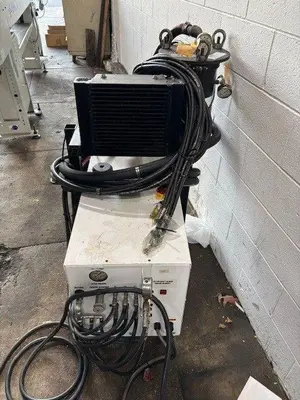

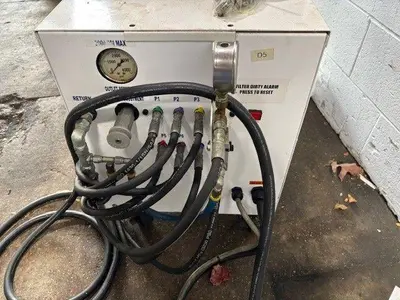

MP High Pressure Coolant Unit
Work Light Tower
Rotary Guide Bushing
(Non-Guide Bushing Kit Available from OEM)

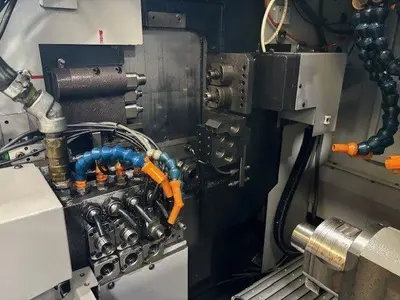

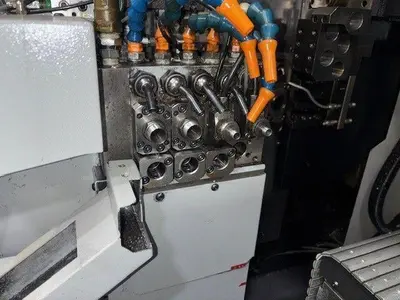

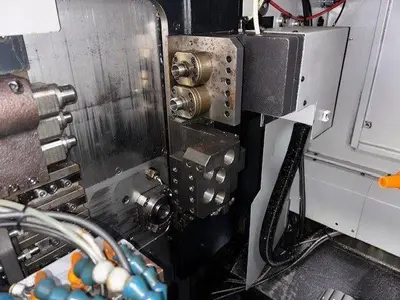

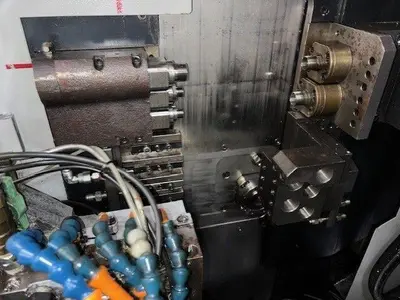

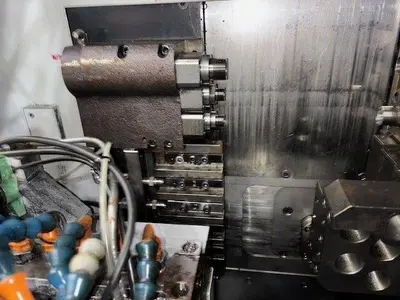

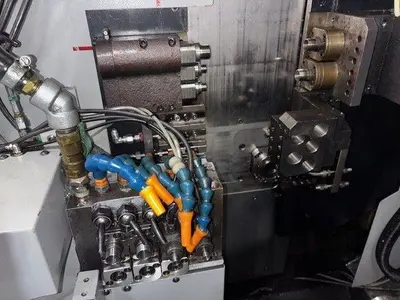

Live Tools on Front & Rear Tool Posts
Backworking Live Tools for Y2 Axis
