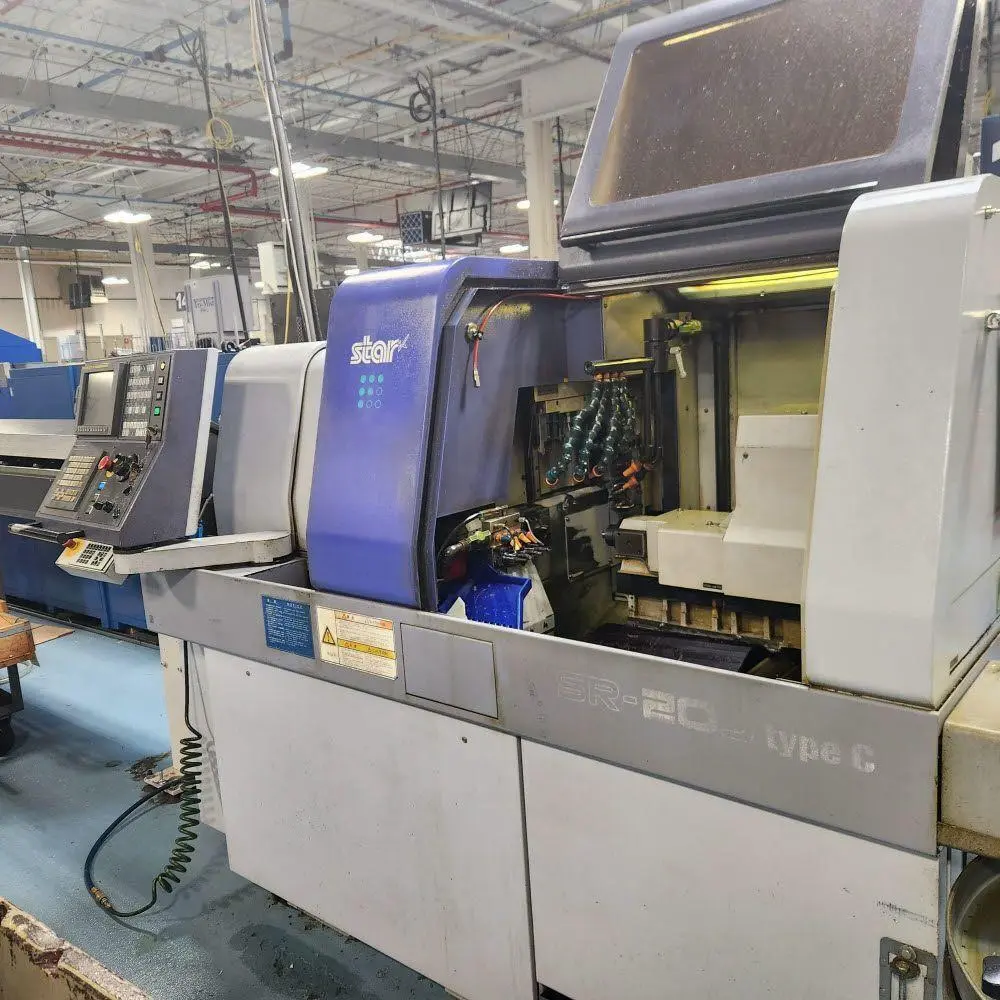

STAR SR-20J TYPE C CNC SWISS LATHE

Equipped With
STAR SR-20J TYPE C CNC SWISS LATHE
New: 2008
Specifications:
Capacity:  0.78 in
Axis Configuration:  7-Axis
Machine Type:  Swiss
Main Spindle Speed:  10,000 RPM
Main Spindle Motor:  4.9 HP
Main Spindle Indexing:  Full C-Axis
Sub-Spindle Speed:  8,000 RPM
Sub-Spindle Motor:  2.9 HP
Sub-Spindle Indexing:  Full C-Axis
Machining Diameter:  3/4 in
Headstock Stroke (w/ Rotary Guide Bushing):  8.07 in (6.7 in)
Gang Tool Post:  6 Turning Tools / 4 Power-Driven Tool Stations
4-Spindle Sleeve Holder:  4 Front Working / 4 Back Working
Drilling Capacity (Sleeve / Power Driven):  0.39 in / 0.31 in
Tapping Capacity (Sleeve / Power Driven):  M8 × 1.25 / M6 × 1.0
Milling Capacity:  0.39 in
Back Working Attachment:
Chucking Diameter:  3/4 in
Pick-Up Part Length:  3.14 in
Part Projection Length:  1.18 in
Number of Tool Stations:  4 Stationary or Power-Driven Tools
Drilling Capacity (Stationary / Power Driven):  0.31 in / 0.19 in
Tapping Capacity (Stationary / Power Driven):  M8 × 1.25 / M4 × 0.7
Machine Dimensions:  86 in × 47 in × 66 in
Machine Weight:  4,850 lbs
Equipped with:
Fanuc 18i-TB CNC Control

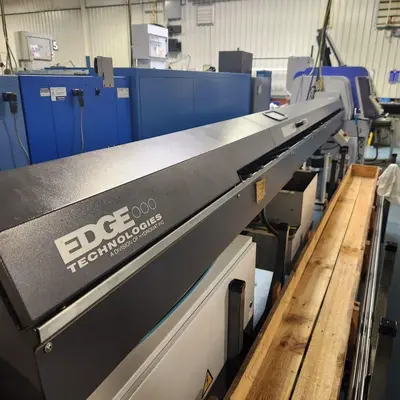

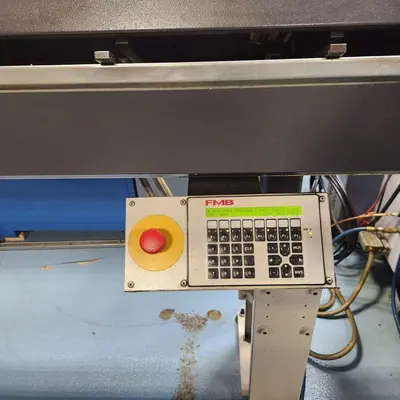

FMB Turbo 2-20/3800 Magazine Bar Loader

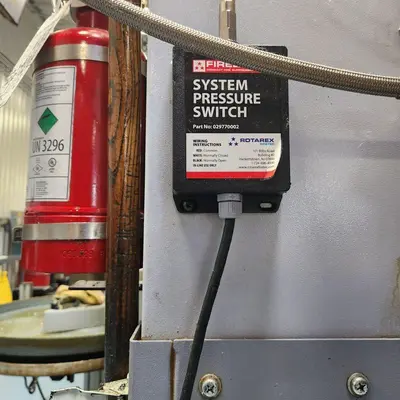

Fire Trace Fire Suppression
Parts Conveyor
High Pressure Coolant Unit
