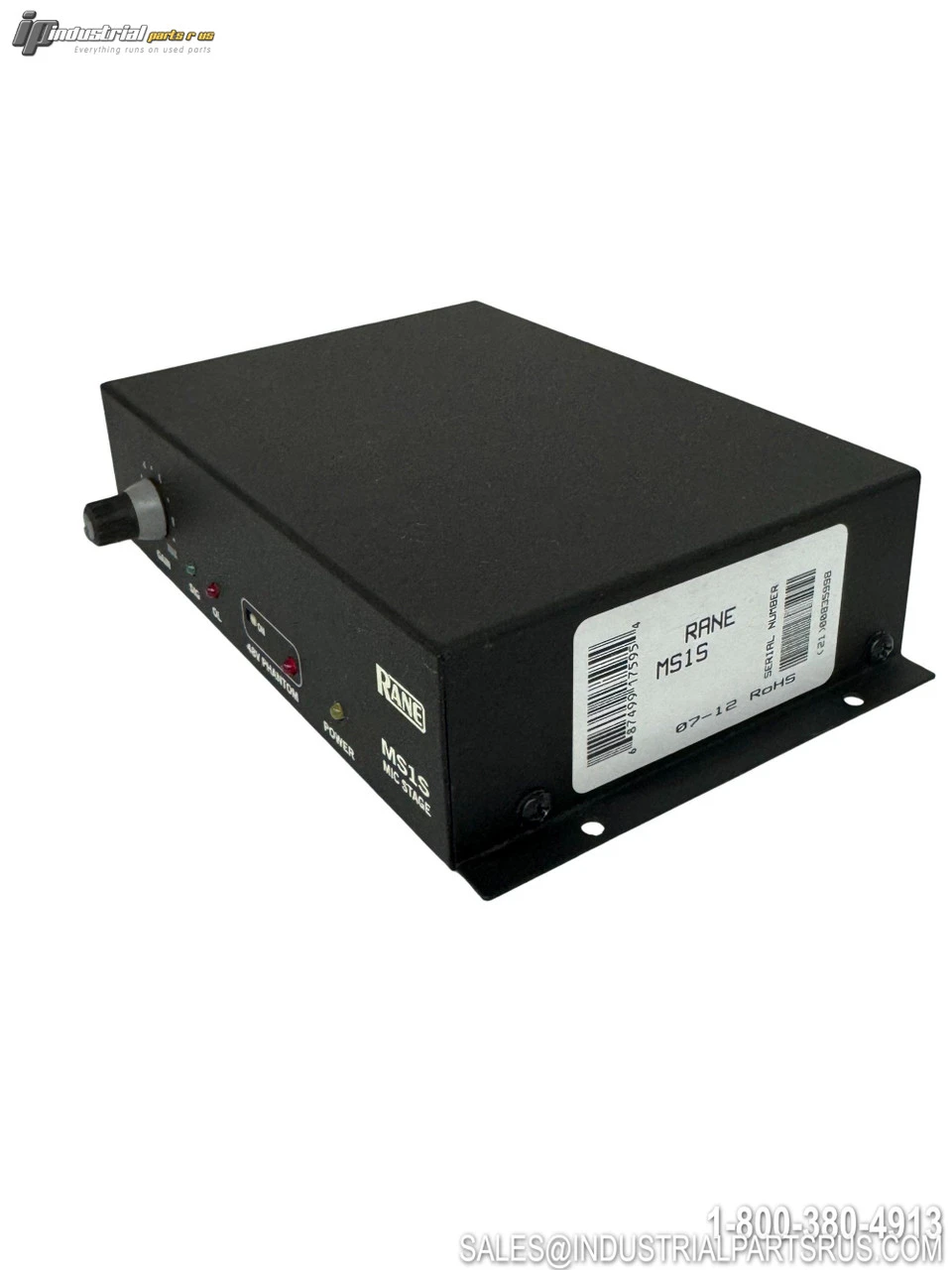

USED RANE MS1S

The Rane MS1S Microphone Stage is a professional single-channel microphone preamplifier designed to provide high-quality conversion from microphone level to line level. This compact unit features an ultra low noise amplifier design with true differential input and high common-mode rejection, delivering performance typically found only in expensive mixing consoles.
Specification
Value
Brand
Rane
Model/Part Number
MS1S
Input Impedance
2k Ω Balanced
Gain Range
15 to 60 dB
Phantom Power
+48V (10 mA max)
Phantom Power Impedance
6.81k Ω Each leg Max
Frequency Response
3 Hz to 200 kHz
Input Level Range
+9 / -35 dBu
Equivalent Input Noise
-127 dBu
Dynamic Range
114 / 91 dB
THD+Noise (60dB gain)
0.004% (Output=+20 dBu)
Input Connector
XLR Balanced
Output Connector
XLR Balanced
Output Type
Cross-coupled balanced
Features
Signal/Overload LED, Polarity switch
Power Supply
Internal universal power supply
We warranty all items for 30 days from date of purchase.

SKU: AI1540
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: Cross-coupled balanced
Manufacturer: Rane
Part Number: MS1S
Shelf: K-51
Model: MS1S
MPN: MS1S
Type: Microphone Preamplifier
