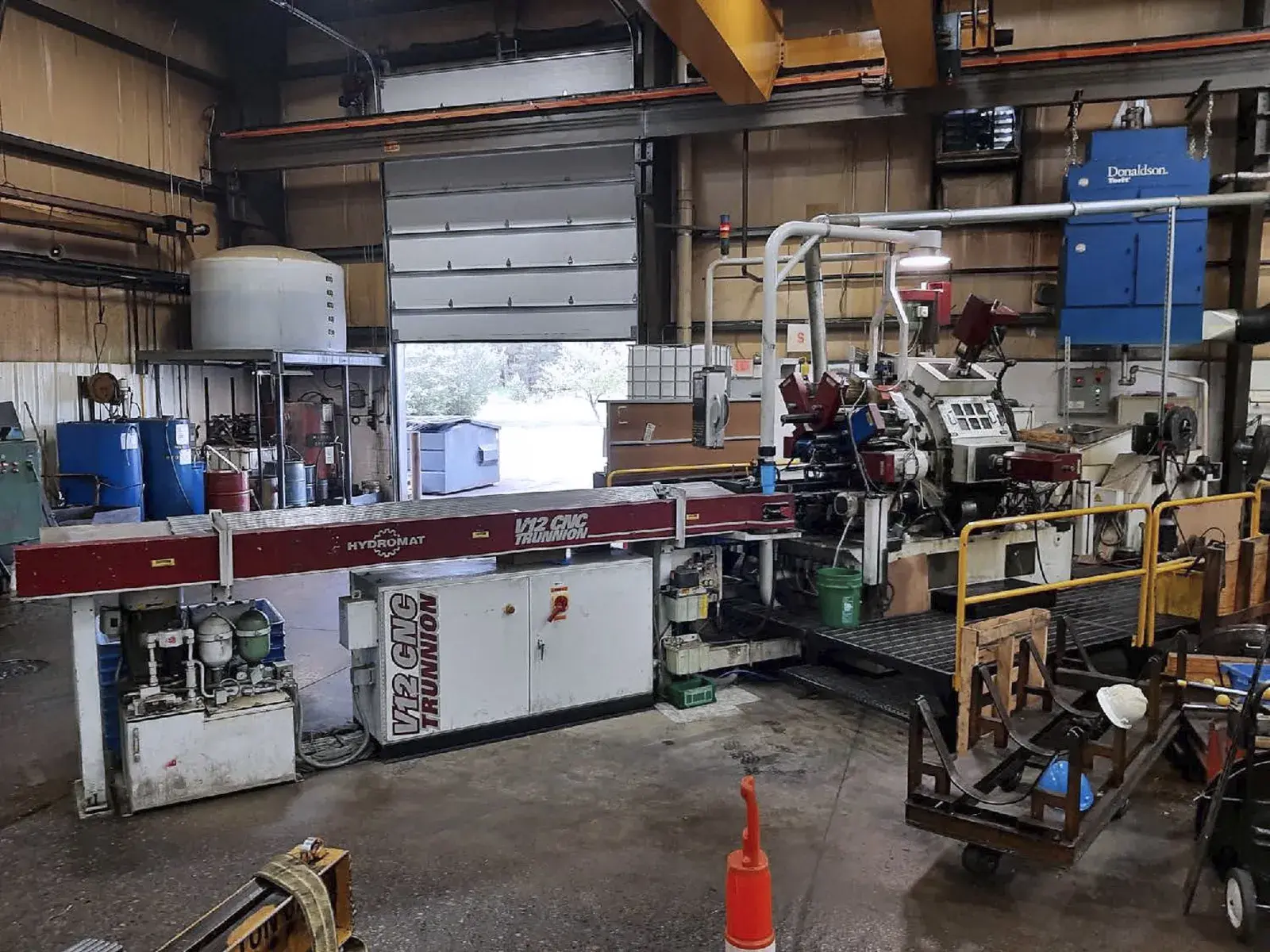

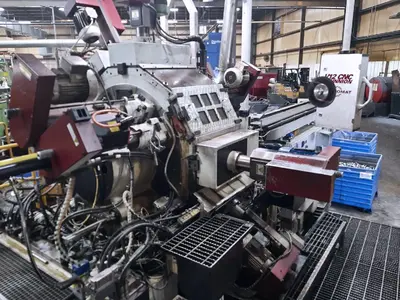

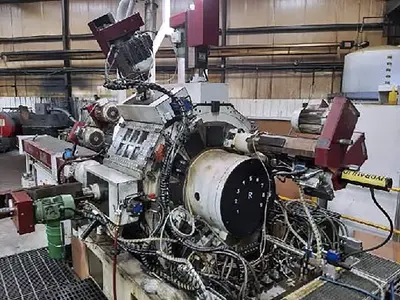

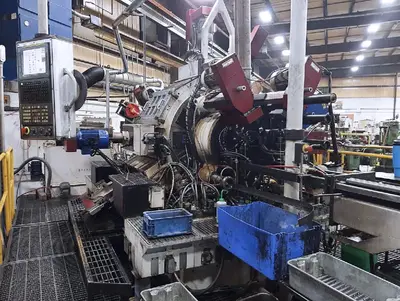

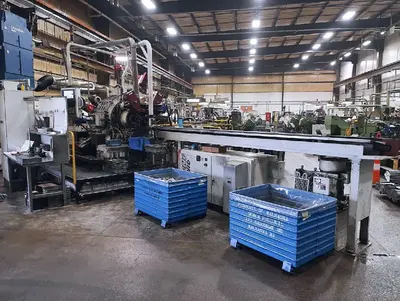

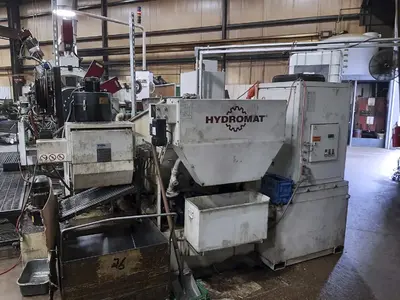

USED 2008 HYDROMAT EPIC V12‑51 CNC TRUNNION
Overview
The Hydromat EPIC V12-51 CNC Trunnion (2008) is a high-performance rotary transfer machining system engineered for precision, high-volume production of small to medium-sized metal components. Ideal for automotive, hydraulic, and pneumatic industries, it efficiently machines complex parts including valve bodies, manifolds, couplers, fuel system, and drivetrain components. Built for accuracy, speed, and reliability in demanding industrial manufacturing environments.
Specs
Fanuc iH Pro Touch Control

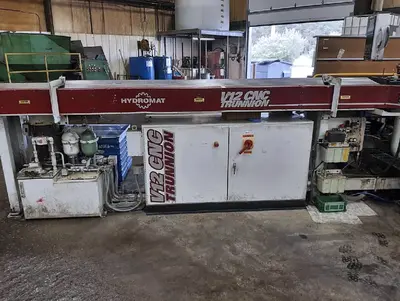

12' Hydromat Barfeeder
Servo Pickoff Spindle installed for back working

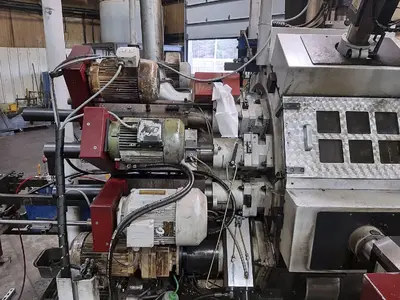

EPIC 36/100 Units (HSK FP/HEI)
EPIC 36/150 Units (CF100 Coolant Through & HEI FQ)
EPIC 26/100 HS Units
EPIC 26/80 Units
Geiger & Haag V12 Chucking System (12 chucks + full jaw inventory)
Rittal Mini Chiller
Immersion Chiller
6' Chip Conveyor
Vogel Air‑Lube System
Parker 20 GPM Hydraulic Power Pack
1‑Axis EPIC Slides (26/80 and 36/100)
2‑Axis EPIC Slide 36/100
XY ±8 CNC Flange Assembly
Turning Heads HSK40‑103/ER16
Drill Heads HSK32/ER25 and HSK40/ER32
Cross‑Drill Unit 26/80
Milling Head 26‑1.22/4"
Unit Flanges 520H & 530H
Stations: 12 Station Trunnion
Tool Positions: Up to 36 (Left / Vertical / Right per station)
Index Time: 0.9 Seconds
Spindle Speeds: 8,750–15,000 RPM
Minimum part length: 0.5" (12.7 mm)
Maximum Part Length: 14" (355.6 mm)
Maximum Round Stock: 1.75" (44.45mm)
Maximum Hex Stock: 1.5" (38.1mm)
Maximum Square Stock: 1.25" (31.75mm)
Equipped With
Fanuc iH Pro Touch Control
12' Hydromat Barfeeder
Servo Pickoff Spindle installed for back working
EPIC 36/100 Units (HSK FP/HEI)
EPIC 36/150 Units (CF100 Coolant Through & HEI FQ)
EPIC 26/100 HS Units
EPIC 26/80 Units
Geiger & Haag V12 Chucking System (12 chucks + full jaw inventory)
Rittal Mini Chiller
Immersion Chiller
6' Chip Conveyor
Vogel Air‑Lube System
Parker 20 GPM Hydraulic Power Pack
1‑Axis EPIC Slides (26/80 and 36/100)
2‑Axis EPIC Slide 36/100
XY ±8 CNC Flange Assembly
Turning Heads HSK40‑103/ER16
Drill Heads HSK32/ER25 and HSK40/ER32
Cross‑Drill Unit 26/80
Milling Head 26‑1.22/4"
Unit Flanges 520H & 530H
