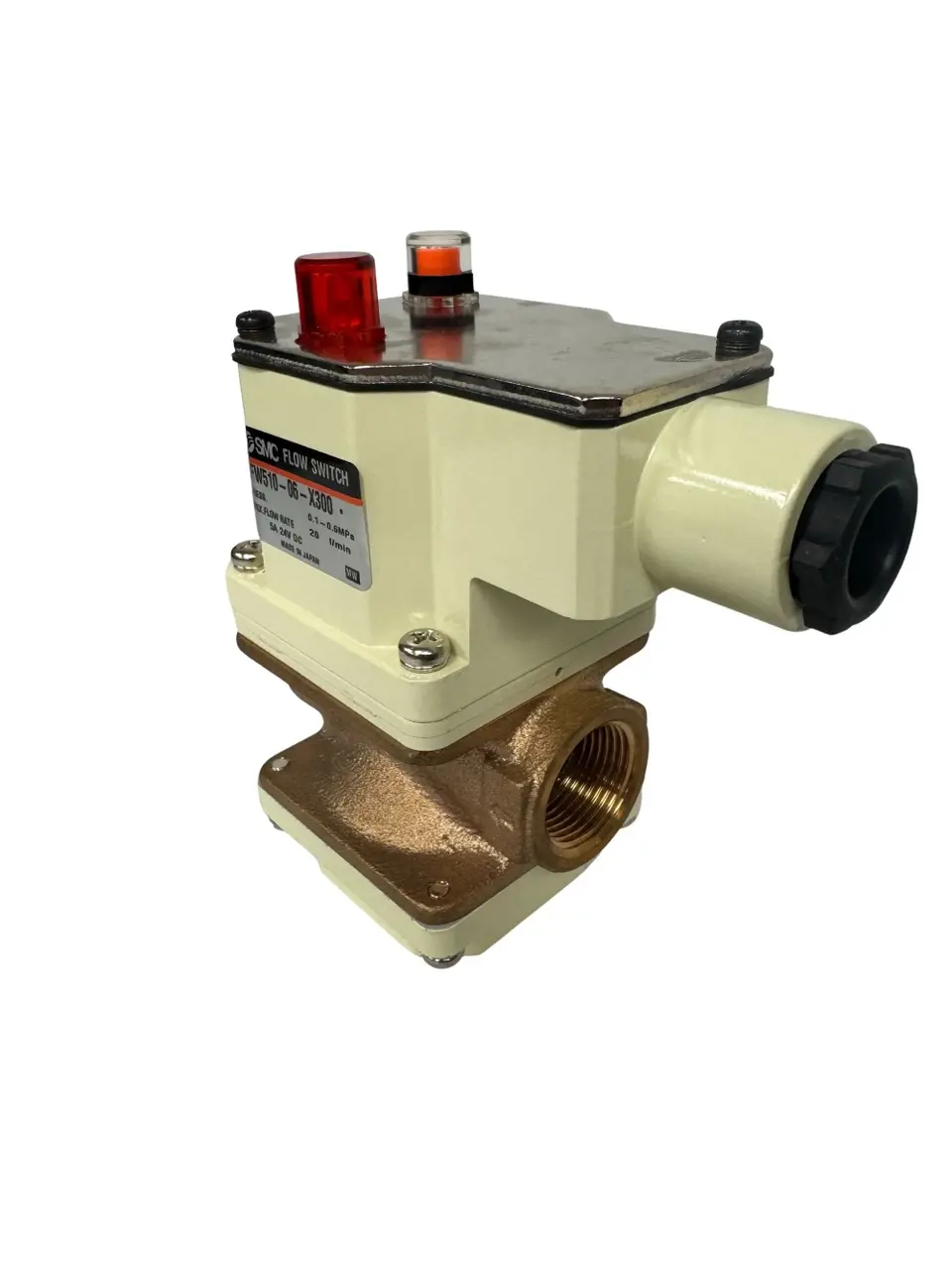

NEW SMC IFW510-06-X300

The SMC IFW510-06-X300 is a digital flow switch from the IFW series that detects and confirms liquid flow. It is applicable to general industrial machines and various other applications, and will detect the flow of water and other non-corrosive fluids. The flow body houses a diaphragm responsive to flow rate, with a connected rod and lever mechanism that triggers a micro switch at a manually adjustable set point.
Specification
Value
Brand
SMC
Model/Part Number
IFW510-06-X300
Series
IFW5
Sensor Type
Diaphragm Flow Switch
Application
Non-Corrosive Liquids
Flow Detection Range
1-50 L/min (Series Range)
Port Sizes Available
3/8, 1/2, 3/4 inch
Thread Types Available
Rc(PT), NPT, G(PF)
Operating Pressure Range
0.1 to 0.6 MPa
Temperature Rating
-5 to 60°C
Withstand Voltage
1500 VAC (One Minute)
Flow Setting
External Screwdriver Adjustment
We warranty all items for 30 days from date of purchase.

SKU: AI1538
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Sensor Type: Diaphragm Flow Switch
Manufacturer: SMC
Part Number: IFW510-06-X300
Shelf: A-16
Model: IFW510-06-X300
MPN: IFW510-06-X300
Type: Flow Sensor
