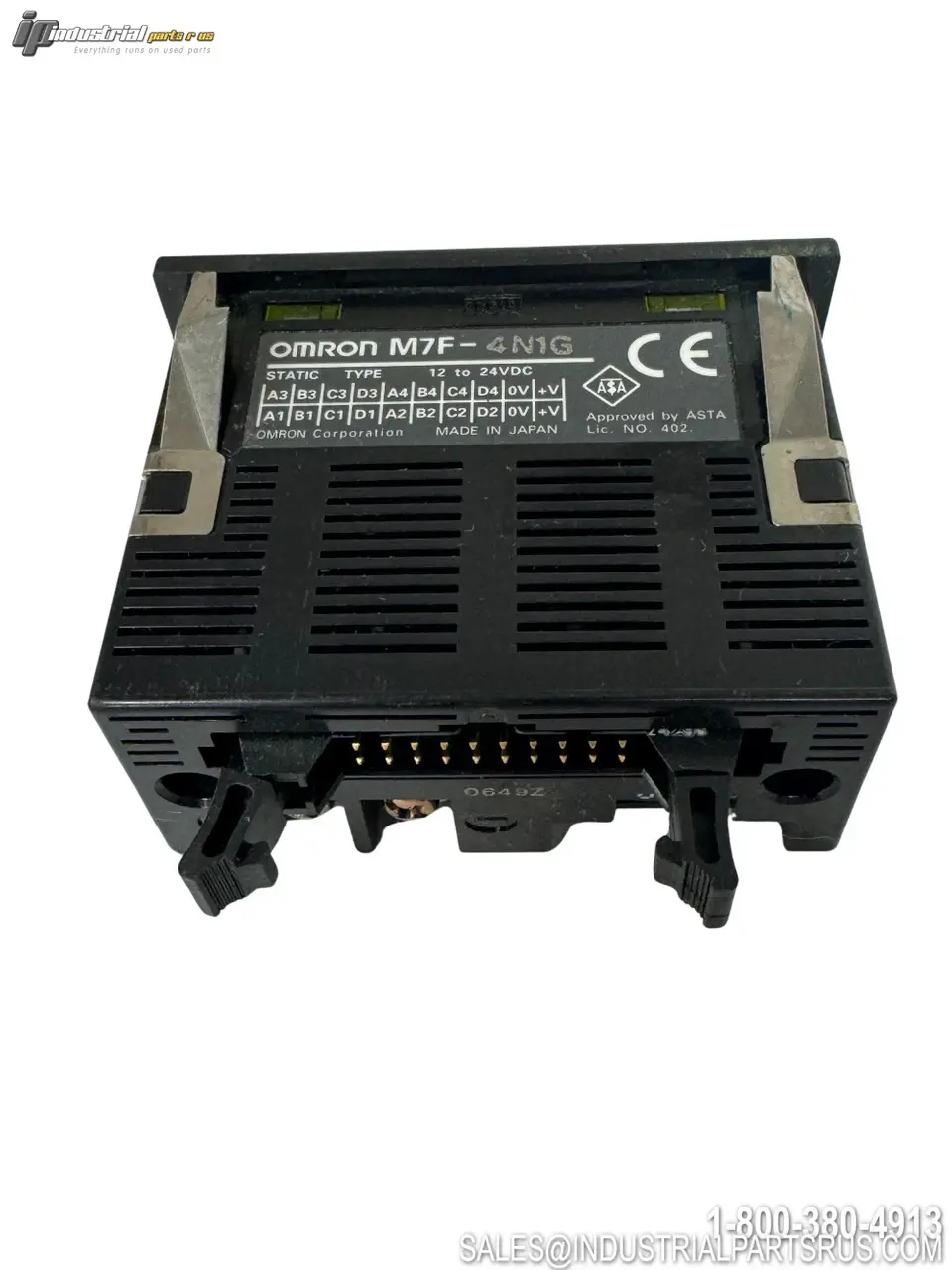

USED OMRON M7F-4N1G

The Omron M7F-4N1G is a four-digit LED character and numeric display module designed for industrial automation and control applications. This display features green 7-segment LEDs with negative logic input and operates on 12-24VDC power supply. The module provides 14mm character height and measures 36.00mm x 72.00mm x 50.00mm (1.417" H x 2.835" W x 1.969" D).
Specification
Value
Brand
Omron
Model/Part Number
M7F-4N1G
Product Type
LED Character Display Module
Series
M7F
Number of Characters
4
Character Type
7-Segment
Character Height
14 mm (0.56")
Display Color
Green
Operating Voltage
12-24 VDC
Logic Type
Negative Logic
Current Consumption
200 mA max (at 12 VDC)
Max Operating Temperature
55°C
Min Operating Temperature
-10°C
Dimensions
1.417" H x 2.835" W x 1.969" D (36.00mm x 72.00mm x 50.00mm)
Number of Pins
20
Display Contents
Numerals and minus symbol
RoHS Status
Lead free / RoHS Compliant
We warranty all items for 30 days from date of purchase.

SKU: AI1547
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 200 mA max
Manufacturer: Omron
Part Number: M7F-4N1G
Shelf: F-11 Tub 3
Model: M7F-4N1G
MPN: M7F-4N1G
Type: Display Modules-LED Character and Numeric
