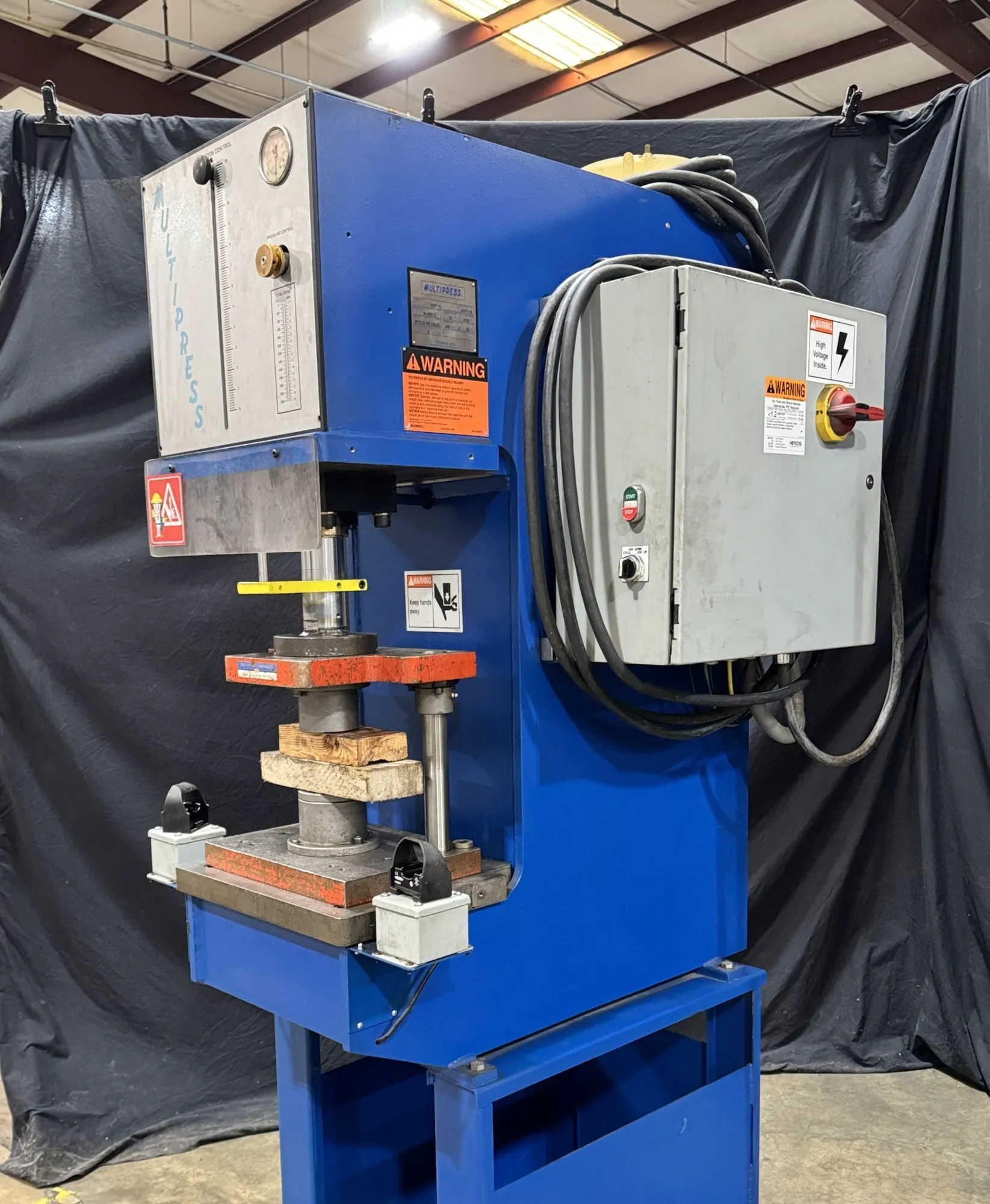

15 Ton Multipress, Model M5P-15, 12" stroke, 18" Daylight, 17" x 13.5" bed, 8" throat, Allen Bradley MicroLogix 1100
| Tonnage | 15 T | 13.608 t |
| Stroke | 12" | 304.8 mm |
| Daylight | 18" | 457.2 mm |
| Bed (L-R) | 17" | 431.8 mm |
| Bed (F-B) | 13.5" | 342.9 mm |
| IPM Closing | 420 in/min. | 1,066.8 cm/min. |
| IPM Pressing | 165 in/min. | 419.1 cm/min. |
| Throat Size | 8" | 203.2 mm |
| Dimensions | 36" x 48" x 84" high | 36" x 48" x 84" high |
Speeds:
Advance (IPM): 420
Press (IPM): 165
Return (IPM): 270
Bore Cylinder Diameter: 4"
Ram Cylinder Diameter: 2 1/2"
Operating Pressure (Max.): 2,387
Operating Pressure (Min.): 477
Reservoir Capacity: 23 Gallons
Shipping Weight (press only - w/o base): 1,400 lbs.
