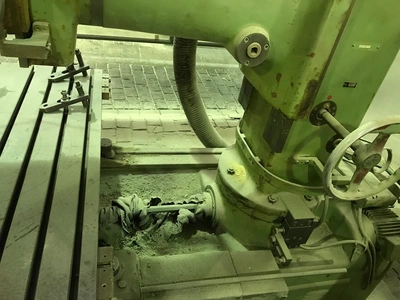

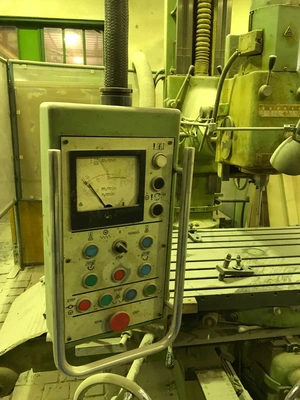

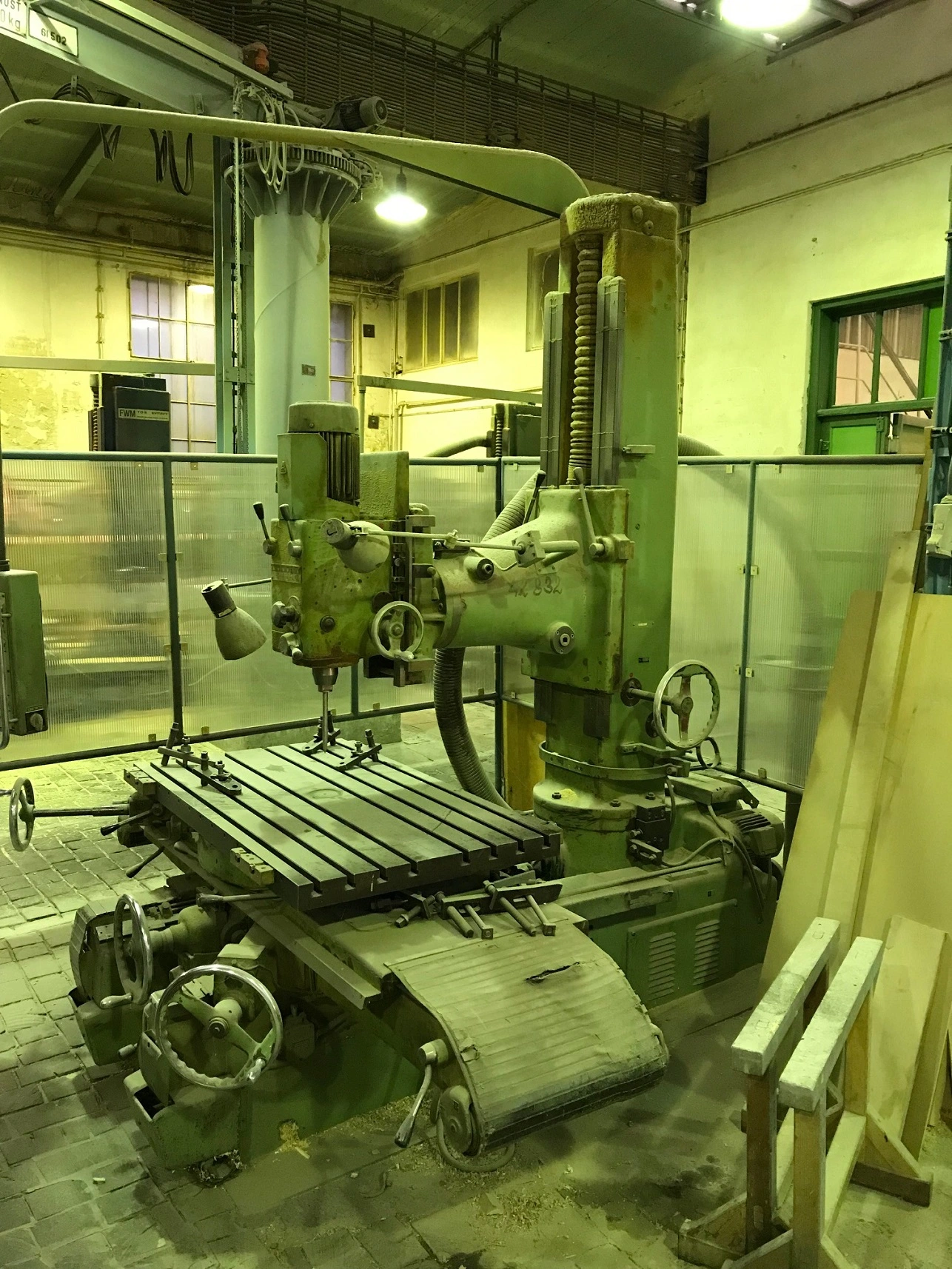

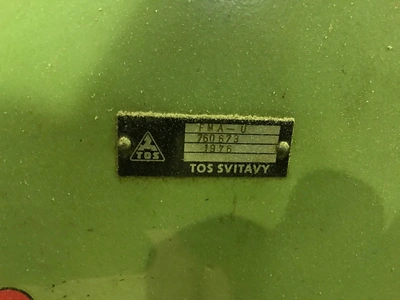

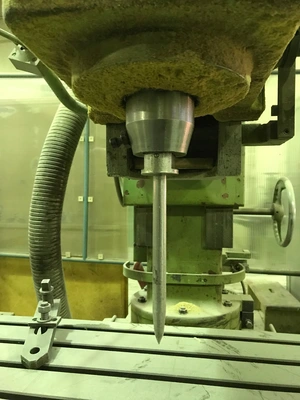

USED 1976 TOS SVITAVY FMA -U

Milling machine modeling universal wood

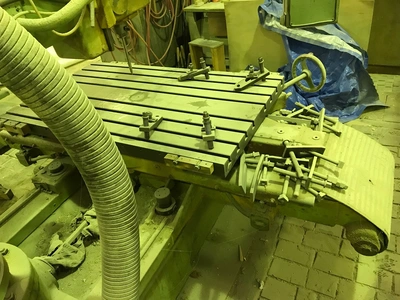

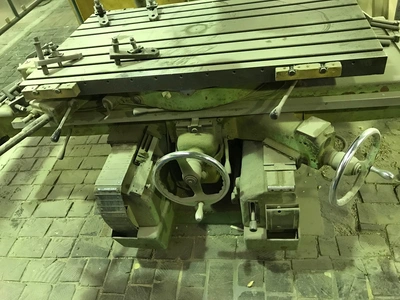

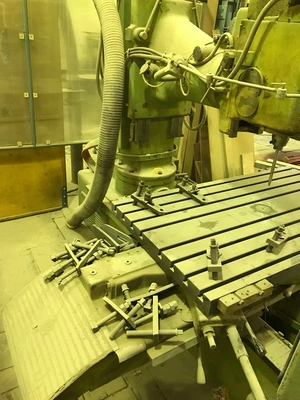

Table clamping surface:
1400 x 800 mm
Longitudinal movement of the table:
Manual: 1500 mm
Machine: 1480 mm cross table movement
Hand: 900 mm
Machine: 880 mm
Tool holder: Morse 4
Distance spindle axis from the table: 1000 mm
Max diameter of the workpiece when turning the arm:
About 30 ° 2900 mm

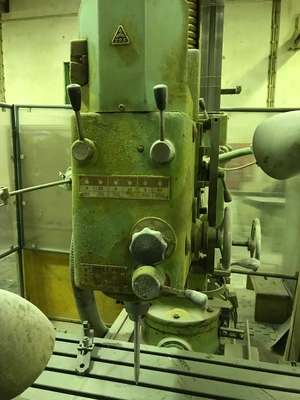

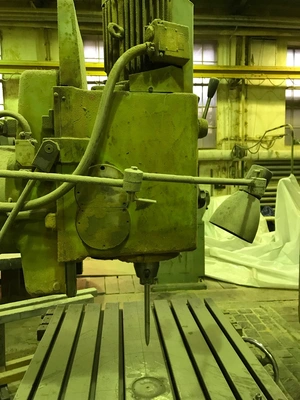

Headstock adjustment: 250 mm
Spindle angle 90 ° - 0 ° - 45 °
Work spindle speed:
1st row 90-360-1400 rpm
2nd row 180-720-2800 rpm
Headstock feed:
1st row 14-22-36-56 mm / min
2nd row 28-45-72-112 mm / min
Tables feeds:
Stepless in two rows in the area :
0.08 m / min. 0.5 rpm
0.25 m / min. - 1.45 rpm
1400/2800 rpm
Machine weight: 4200 kg
