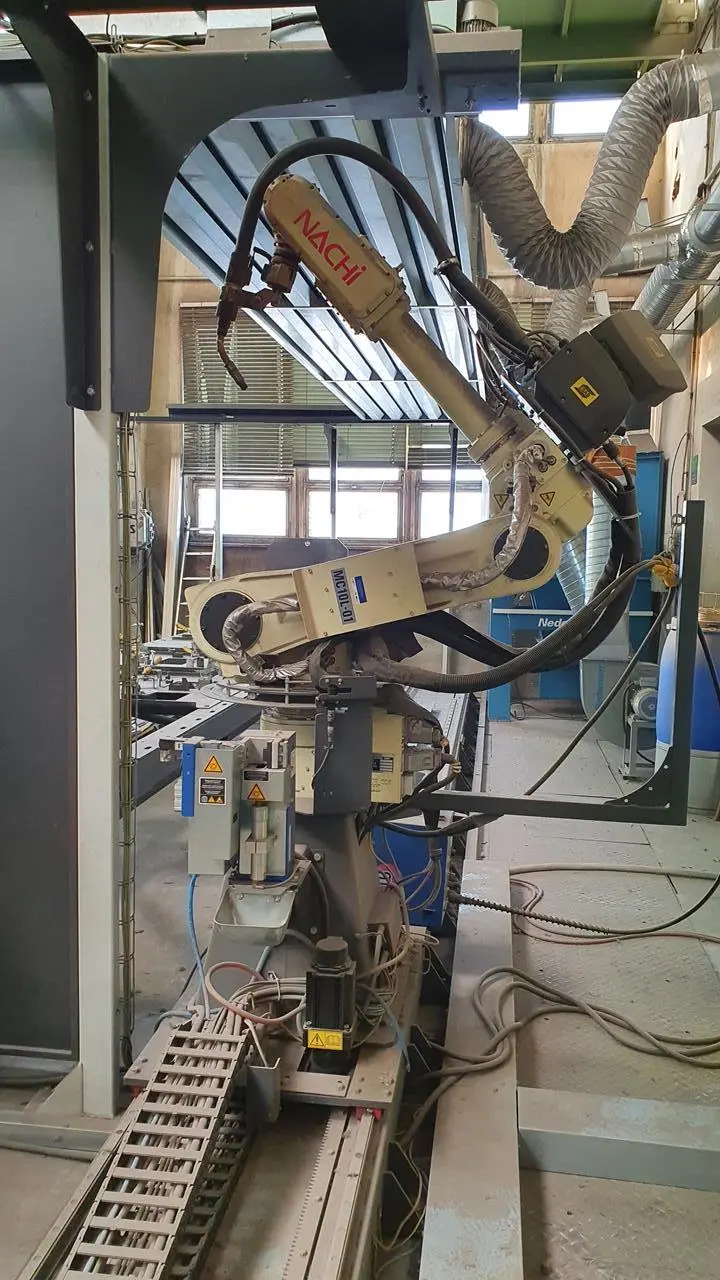

USED 2015 NACHI MC10L-01

Control system: NACHI FD11
Total station hours 1: 45 h
Total station hours 2: 21 h
Number of axes: 6 pcs
Welding radius: 2019 mm

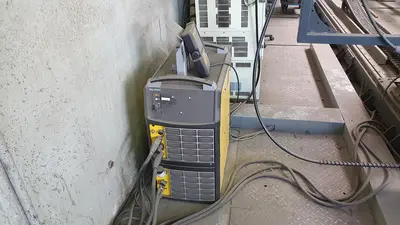

Source: ESAB AristoMig U5000i
Accuracy: 0.06 mm
Load capacity in the 3rd axis: 15 kG
Load capacity in the wrist: 10 kg
Protection: IP65
Robot travel path: 12000 mm
Load capacity of the positioner with support tailstock: 1500 kg
Frame length of the 1st station: 6000 mm
Frame length of the 2nd station: 4000 mm
Maximum turning diameter of the jig with the part: 1650 mm
Runway

Positioner with support tailstock
Controls

Security features and fencing

Automatic burner calibration system

Hood (2 pieces)

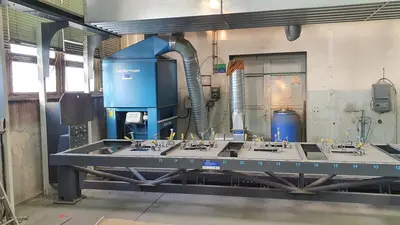

Suction unit

TIG torch assembly with additional wire
NYTRON cleaning station
