Bending Machine in Shaoxing City, China

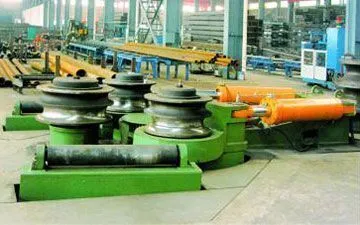

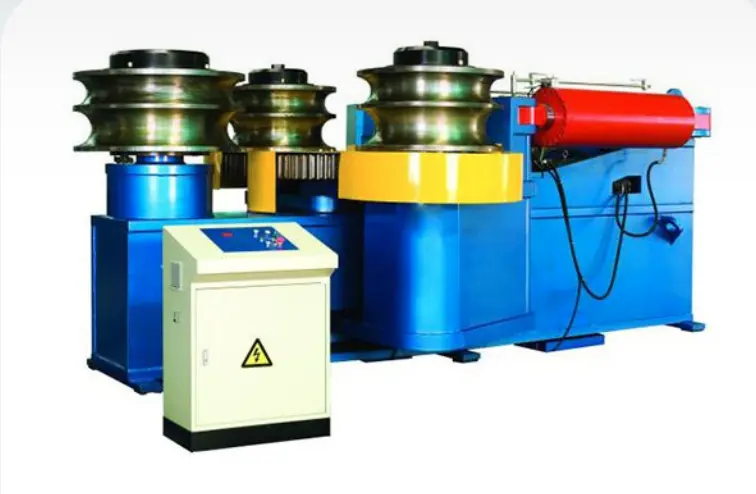

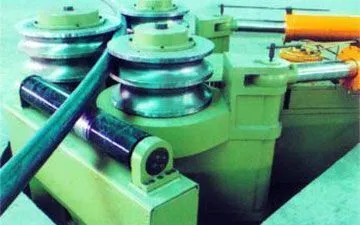

Jinggong bending machine is mainly composed of welded structure, forming rollers, left and right roller supporting racks, hydraulic system, electric control system, and so on.
Technical Parameters
Item
Parameters

Bending-resistance modules of section
270-2000(cm³)

Max. Resistance of material
245Mpa(asQ235A)

Outward bending for channel steel
Model of channel steel: 50

Min. Bending diameter: φ3500mm

Inward bending for channel steel
Model of channel steel: 40

Min. Bending diameter: φ3500mm

Steel tube
Max. Section: φ426mm×16mm

Min. Bending diameter: φ15000mm

Min. Section: φ90mm×8mm

Min. Bending diameter: φ3000mm

Flat bending for band steel
Max. Section: 200mm×60mm

Min. Bending diameter: φ3000mm

Upright bending for band steel
Max. Section: 500mm×75mm

Min. Bending diameter: φ4800mm

Working speed
2-3m/min

Motor power
Hydranlic pump: 22kw

Supporter motor: 0.75kw×2 0.18kw×2

Dimension
4880mm×3200mm×2000mm(length×width×height)

Total weight
About 36000 kg
