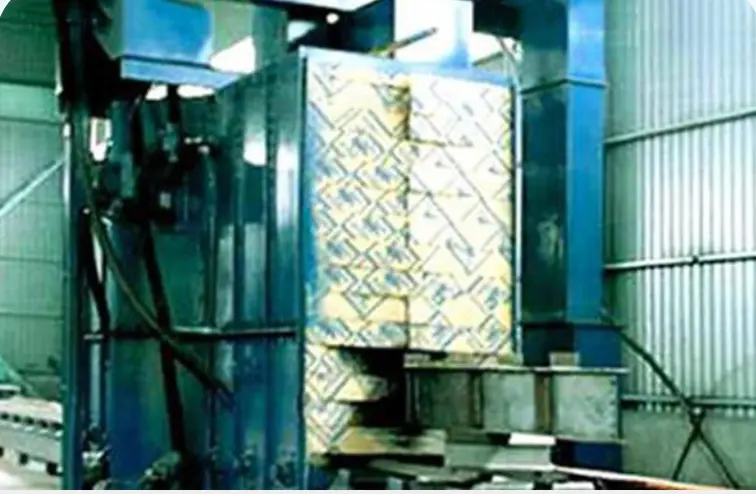

Shot Blasting Machine in Shaoxing City, China

Shot Blasting Machine HP
Our shot blasting machine is the pretreatment equipment for cleaning welded structures, H steel and shaped steel. It is mainly used to perform the function of shot blasting towards the surface of raw steel material, which can remove rusty scale, welding slag and roll scale on the surface, thus obtaining uniform metal luster. The shot blasting machine can not only improve the finishing quality and corrosion resistance of the steel plate, but also reduce labor intensity and environment pollution.
Technical Specifications for Shot Blasting Machine
Item
Parameter

Suitable material
Applicable material
Steel structural parts, profiled bar

Material size (LXWXH)
15000*1000*1600 mm

8 HPT300 impeller heads
Power
18.5 *8 kw

Shotblasting capacity
220 kg/ min

Workpiece delivery
Working speed
0.8-4 m /min

Power
4*2(kw

Conveying capacity of shot circulatory system
100 t/h

Dedusting system
Filtering area
250 m2

Dedusting air flow
20000 m3/h

Shot material
Cast steel shot
φ1.6-φ2 mm

Steel wire head
φ1.2-φ1.5 mm
