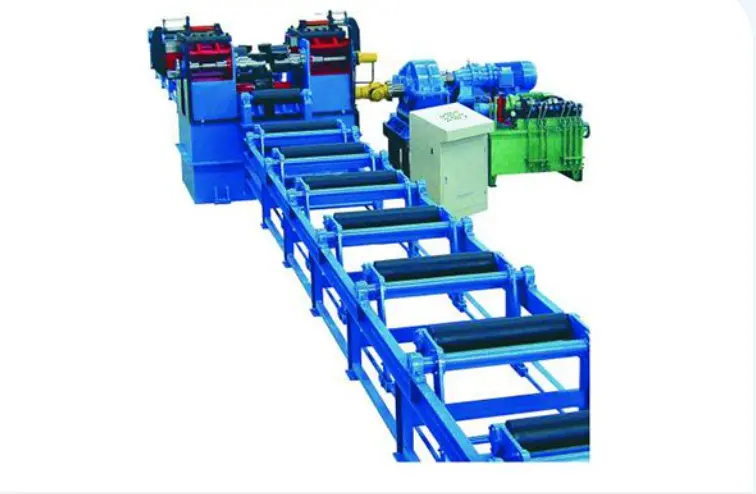

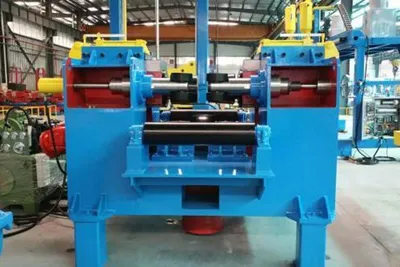

H-Beam Straightening Machine in Shaoxing City, China

H-beam Flange Straightening Machine JJZ
Our H-beam flange straightening machine is mainly used for the angle distortion straightening of heavy H-beam. Adopting hydraulic straightening method, this machine has the features of strong straightening force, large straightening range, high working efficiency and good product quality. As a renowned manufacturer of H-beam flange straightening machine, we can design and manufacture different specification according to different requirement of the client.
Technical Parameters
Item
parameters

Model
JJZ60B
JJZ80B

Flange width(mm)
180-900
200-1000

Web height(mm)
≥350
≥350

High pressure straightening force(Kn)
1500
2800

Straightening material thickness(mm)
Q235≤0 Q345≤60
Q234≤100 Q345≤80

Max. straightening speed(m/min)
5.5
6

Total power(Kw)
26
37
