2019 HAAS VF-10/50 Vertical Machining Center. Used condition. Features 120" x 28" table, 30 HP, 7500 RPM spindle, 30-tool ATC, and XYZ travel of 120"x32"x30". Ideal for precision manufacturing needs.
| X-Axis | 120" | 3,048 mm |
| Y-Axis | 32" | 812.8 mm |
| Z-Axis | 30" | 762 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 30 | 30 |
| Table-W | 120" | 3,048 mm |
| Table-L | 28" | 711.2 mm |

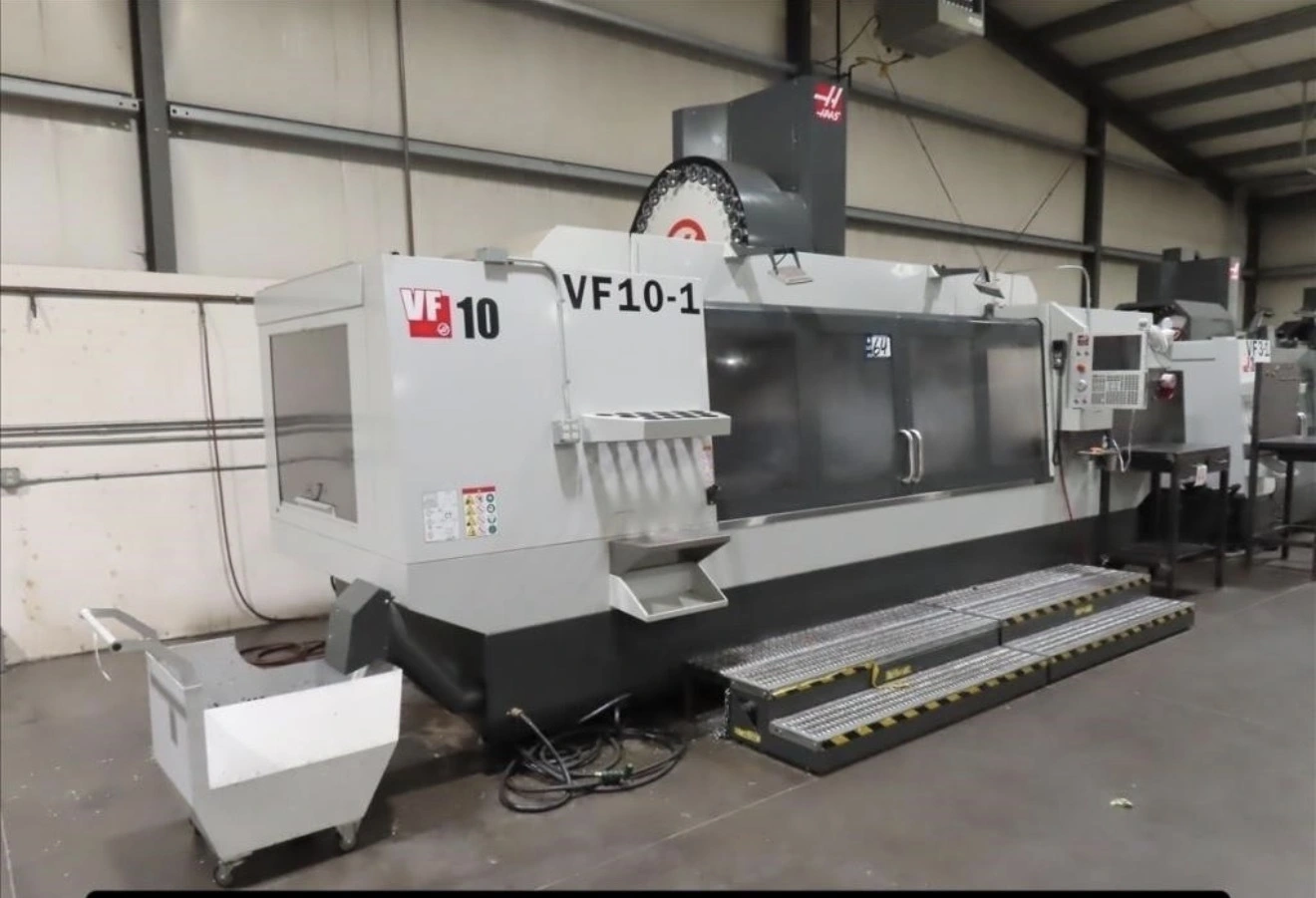

2019 HAAS VF-10/50 Vertical Machining Center w/ 4th Axis HRT450 #8192
SPECIFICATIONS:
X Travel: 120"
Y Travel: 32"
Z Travel: 30"
Spindle Speed: 7500 rpm
Tool Capacity (ATC): 30
Table Size (W): 28"
Table Size (L): 120"
Main Spindle Motor: 30 hp
Spindle Taper: CAT 50
Spindle Nose To Table Top: 5" - 35"
Hi Pressure Coolant System: 300 psi
Part Probe: Yes
Control CNC (HAAS CNC CONTROL)
Equipt w/
4th Axis Drive

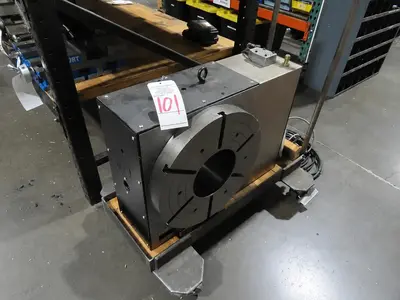

Haas HRT450 Rotary Tabel
High Speed Machining
Chip Auger
Programmable Coolant Nozzle
Rigid Tapping
Through Spindle Coolant
Renishaw Probing
Linear Scales
