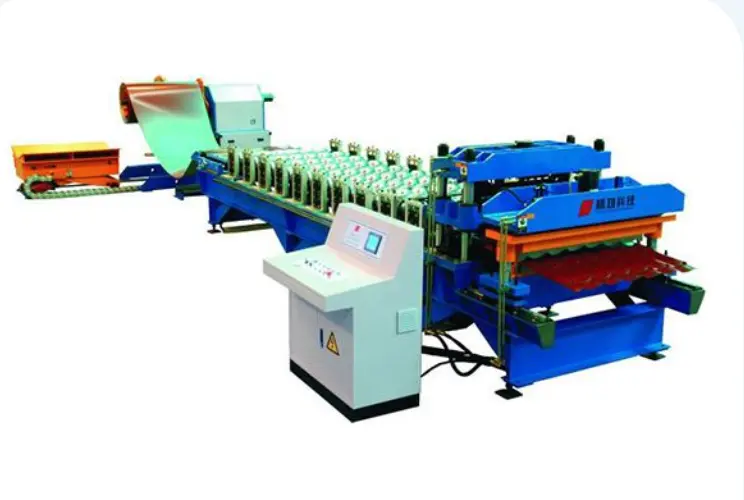

High-Speed Roof Tile Forming Machine in Shaoxing City, China
Overview
Description
Our HLM series high speed steel tile forming machine is designed based on the HL series forming machine. This forming equipment integrates mechanical, electrical and hydraulic technologies into one unit. This combination gives the equipment a high speed capacity with increased efficiency. Additionally, it adopts an industrial computer control system that is highly automatic. This product has earned 1 patent of invention and 2 patents of utility model. Our company produces steel tile forming machines of different specifications, models and configurations.
Item
Unit
Parameter
Remark
Suitable material
Type
Color plate, aluminum plate
Depending on customers' requirement
Thickness
mm
≤0.65
Yield strength
Mpa
≤400
As per customers' material characteristic
Width
mm
≤1250
According to different profile shape
Coil weight
T
5, 8 or 10
Optional
Working speed
m/min
≤6
Roller material
Hard chromium plated 45 steel
Roller driving mode
Independent stander, built-in chain drive
Pitch adjustment range
mm
150 -400
Adjustable
Electric control system
Industrial computer PLC frequency control
Console mode
Touch screen+ button
Total power
kW
11
As per technical requirement
Outline dimensions (LXWXH)
m
16X3.5 X2
