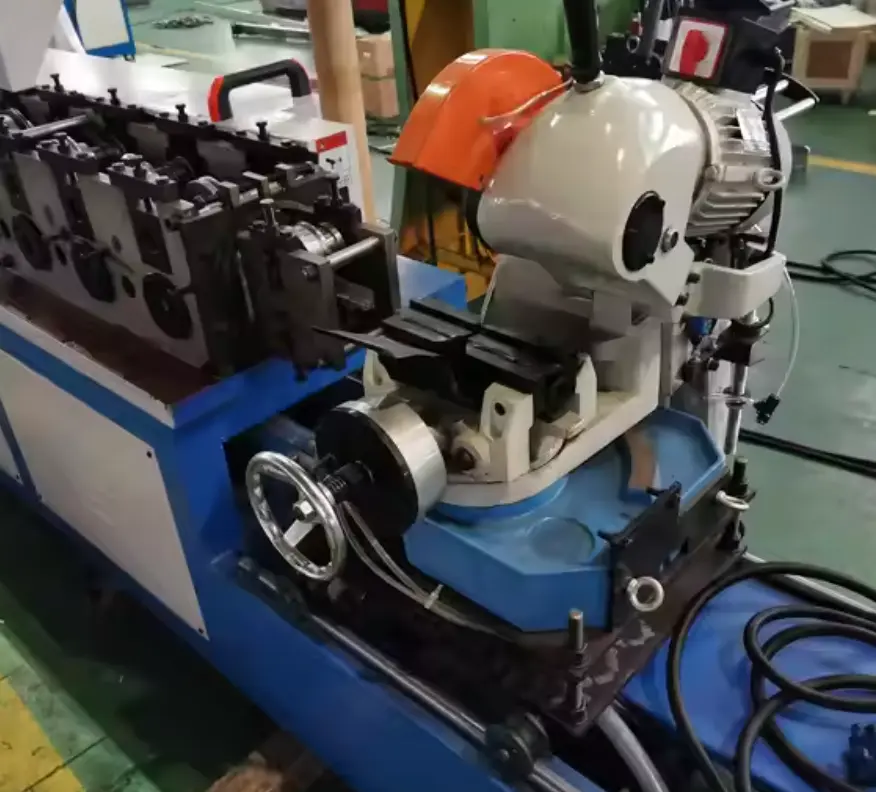

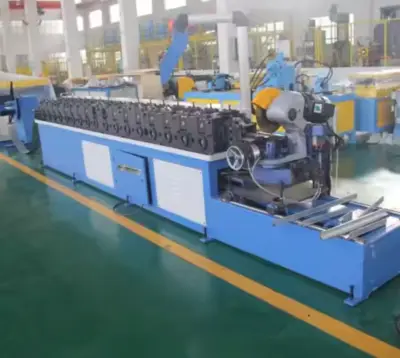

Wire Ducting Roll Forming Machine – Available in the UAE
Machine Matcher proudly offers high-performance Wire Ducting Roll Forming Machines, engineered to meet the exacting standards of the UAE's industrial sector. These machines are designed for precision, durability, and adaptability, ensuring optimal performance in various applications.
Machine Technical Specifications
Machine Type: Wire Ducting Roll Forming Machine
Production Speed: 10–30 meters per minute
Material Thickness Range: 0.6–2.0 mm
Material Width Range: 100–800 mm
Material Types: Galvanized steel, pre-galvanized steel, aluminum
Material Yield Strength: 250–550 MPa
Roller Material: GCr15 steel, quenched and tempered
Roller Surface Treatment: Hard chrome plating
Number of Forming Stations: 16–24 stations
Roller Shaft Diameter: 70–90 mm
Shaft Material: High-quality 45# steel, heat-treated
Main Drive Type: Chain or gearbox drive
Power: 380V, 50Hz, 3-phase (adaptable to UAE standards)
Motor Power: 15–22 kW
Cutting Method: Hydraulic post-cutting
Blade Material: Cr12Mov, heat-treated
Control Type: PLC control system (Panasonic or Siemens)
Operating Mode: Automatic with touch screen interface
De-coiling System: Manual or hydraulic decoiler
Punching/Notching System: Hydraulic punching station (optional)
Machine Frame: Welded H-beam structure
Thickness of Frame Steel: 20 mm
Profile Shape: Customizable to client specifications
Profile Width and Depth: Adjustable within specified material width range
Length Tolerance: ±1 mm
Safety Features:
Protective covers and guards
Emergency stop button
Overload protection system
Industries Served
Machine Matcher's Wire Ducting Roll Forming Machines are versatile and cater to a broad spectrum of industries:
Electrical and Cable Management: Production of cable trays and wire ducts for organized cable routing.
Construction: Fabrication of structural components for buildings and infrastructure.
Telecommunications: Manufacturing of enclosures and pathways for communication cables.
Industrial Automation: Creation of custom profiles for machinery and equipment housing.
These machines are integral in producing components that require high precision and consistency, essential in the aforementioned industries.
Unique Selling Propositions (USPs)
Customization: Tailored to meet specific profile requirements, ensuring seamless integration into existing production lines.
Efficiency: High-speed production capabilities reduce manufacturing time and increase output.
Durability: Constructed with high-quality materials and components for long-term reliability.
User-Friendly Interface: PLC control systems with touch screens simplify operation and reduce training time.
Safety: Equipped with comprehensive safety features to protect operators and equipment.
Customization Options
Machine Matcher offers extensive customization to align with your production needs:
Profile Dimensions: Adjustable width and depth settings.
Material Compatibility: Adaptable to various materials and thicknesses.
Operational Features: Options for manual or automatic decoilers, punching systems, and cutting methods.
Control Systems: Choice between different PLC brands and interfaces.
Availability in the UAE
Machine Matcher's Wire Ducting Roll Forming Machines are available for delivery across the United Arab Emirates, including:
Abu Dhabi
Dubai
Sharjah
Ajman
Fujairah
Ras Al Khaimah
Umm Al Quwain
All machines are new and custom-built to meet your specific profile and machine requirements.
Warranty and Support
Warranty: One-year warranty from the date of dispatch.
Support: Comprehensive maintenance and repair support.
Installation: Remote video guidance available; on-site installation upon request.
Pricing
Starting Price: Approximately $45,000 USD.
Final Price Determinants: Optional extras, customization requirements, and specific machine configurations.
For a tailored quote based on your specific needs, please contact Machine Matcher.
Frequently Asked Questions (FAQs)
Q: Can the machine be customized for our profile?
A: Yes, Machine Matcher specializes in customizing machines to match your specific profile requirements.
Q: What is the lead time for manufacturing and shipping?
A: Production typically takes 30–60 days; shipping time depends on the destination port.
Q: What type of material is normally used with this type of machine, and what are the material gauge and KSI?
A: Common materials include galvanized steel, pre-galvanized steel, and aluminum, with thicknesses ranging from 0.6 to 2.0 mm and yield strengths between 250–550 MPa.
Q: Is remote installation support available?
A: Yes, we offer remote video guidance, and on-site installation is available upon request.
For inquiries or to provide profile drawings and other details for a precise quote, please email: [email protected]
All machines are supplied exclusively by Machine Matcher, ensuring consistent quality and expert support.
