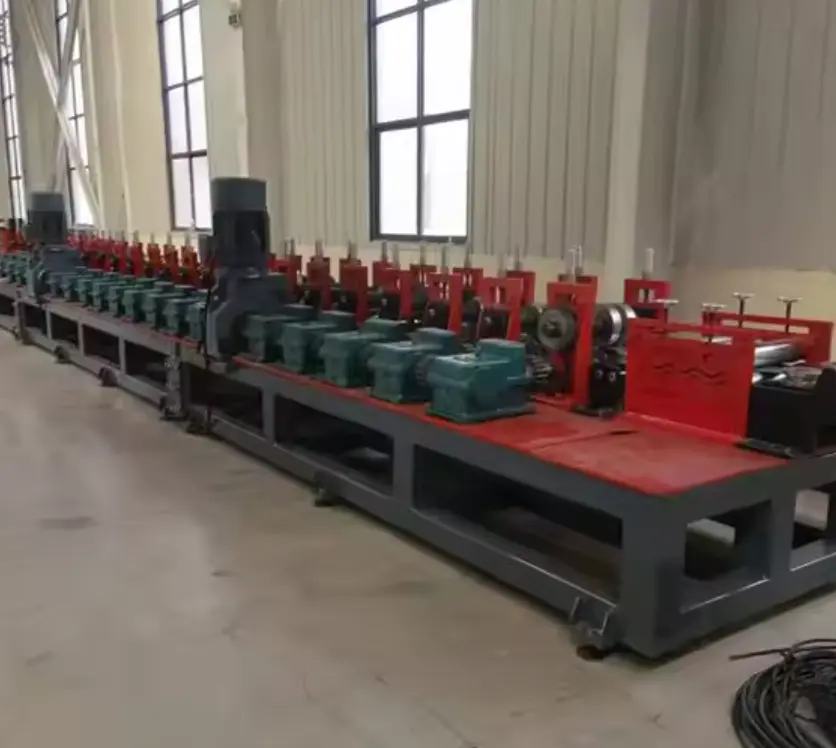

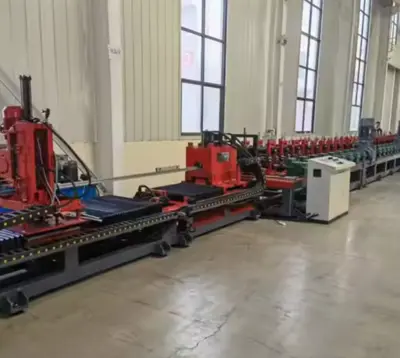

Solar Bracket Roll Forming Machine – UAE Market Overview
Custom-Built for Solar Infrastructure Projects in Abu Dhabi, Dubai, Sharjah, and Beyond
Product Description
The Solar Bracket Roll Forming Machine is a precision-engineered solution designed to manufacture structural mounting brackets for solar panel installations. Built to serve the UAE’s rapidly growing solar energy sector, this machine produces high-strength, corrosion-resistant metal brackets used in both ground-mounted and rooftop PV (photovoltaic) systems.
Manufactured to international quality standards and tailored to meet the profile, gauge, and output requirements of solar contractors in the UAE, this roll forming line offers robust performance, flexibility, and fast ROI for both small-scale solar installers and large EPC contractors.
With a high-speed forming line, durable construction, and advanced automation systems, this machine streamlines the production of custom solar support structures — reducing labor, material waste, and lead time.
Machine Technical Specifications
Machine Type: Solar Mounting Bracket Roll Forming Machine
Production Speed: 10–20 meters per minute
Material Thickness Range: 1.2 – 2.5 mm
Material Width Range: 100 – 500 mm
Material Types: Galvanized Steel (GI), Stainless Steel (SS), Aluminum (optional)
Material Yield Strength: Up to 350 MPa (50 KSI)
Roller Material: GCr15 hardened steel
Roller Surface Treatment: Hard chrome-plated for corrosion and wear resistance
Number of Forming Stations: 14–22 stations (customizable)
Roller Shaft Diameter: 70 mm
Shaft Material: High-strength 40Cr steel, quenched and tempered
Main Drive Type: Gearbox or chain drive (as specified)
Power for UAE: 380V / 50Hz / 3Phase (customizable for DEWA or ADDC requirements)
Motor Power: 11–15 kW depending on configuration
Cutting Method: Hydraulic post-cutting for precision and clean cuts
Blade Material: Cr12MoV, heat-treated for long life
Control Type: PLC-based control system (Siemens or Delta)
Operating Mode: Fully automatic with touch screen HMI
De-coiling System: Hydraulic uncoiler with 3–5 ton capacity
Punching/Notching System: Integrated hydraulic punching (slotting, holes as per drawing)
Machine Frame: Welded steel base, stress-relieved and painted
Thickness of Frame Steel: 20 mm side wall plates
Profile Shape: C/U channel or custom bracket shape
Profile Width and Depth: 40–100 mm width / 20–50 mm depth
Length Tolerance: ±1.0 mm
Safety Features:
Full protective covers
Emergency stop system
Electrical overload protection
Industries Served
The solar bracket roll forming machine supports industries focused on:
Solar Energy & Renewables
Construction & Infrastructure
Metal Fabrication
Utilities & Energy Contractors
Use Case Examples:
Production of solar mounting rails, bracing supports, and tilt brackets
Supply to EPC contractors, solar panel installers, and off-grid infrastructure builders
OEM fabrication for international or local solar equipment suppliers
Customization Options
Variable material gauges (1.0–3.0 mm available)
Modular punching dies for hole patterns and slots
Integration with coil handling systems (coil car, auto levelers)
Optional stacking systems and automated packing lines
Remote diagnostics and PLC upgrades for smart factory integration
Unique Selling Propositions (USPs)
UAE-Ready Configuration – Built for DEWA/ADDC voltage and local specifications
Tailored Profile Support – Machines built exactly to customer-provided bracket dimensions
Corrosion-Protected Rollers – Long lifespan even with galvanized or stainless material
High Output, Low Waste – Optimized material use, minimal scrap
Punch + Form + Cut in One Line – No secondary processing required
One-Year Warranty – Plus long-term technical support & parts supply
Fast Delivery Across UAE – Including Abu Dhabi, Dubai, Sharjah, and other Emirates
These advantages help UAE fabricators reduce outsourcing, lower labor costs, speed up bracket production, and scale their solar projects with confidence.
Pricing Information
Prices start from: USD $65,000
(Varies by profile complexity, punching requirements, and automation level)
What Affects Final Price:
Profile complexity or size range
Custom punching/slotting needs
Coil loading and handling upgrades
Speed and motor type requirements
Add-ons like stackers or robotic arms
For a tailored quote, email your profile drawing, thickness, length range, and material type to: [email protected]
Location & Delivery
All solar bracket roll forming machines are custom-built and brand new, manufactured by trusted global partners. Machines are delivered across the UAE, including Abu Dhabi, Dubai, Sharjah, and all major industrial zones.
Questions and Answers
Q: What types of solar brackets can this machine make?
A: It can produce C, U, L, and Z-shaped profiles, with pre-punched slots and holes based on the mounting design. Custom profiles are fully supported.
Q: What kind of material is typically used?
A: GI (galvanized steel) is most common, with thicknesses from 1.2 mm to 2.5 mm and yield strength up to 50 ksi. Aluminum and stainless steel are optional.
Q: Can I use this machine for other structural brackets?
A: Yes. It’s commonly adapted for carport structures, scaffolding braces, and light structural profiles beyond just solar.
Q: Does it come with a warranty?
A: Yes, all machines include a 1-year warranty from dispatch and lifetime remote support.
Q: How long is the delivery time?
A: Standard delivery time is 50–70 days after deposit, depending on customization requirements.
Contact & Quote Requests
To get the best offer, please send:
Profile drawings (CAD or PDF)
Material type and thickness
Voltage requirement
Desired production speed
Email: [email protected]
Machine Matcher – UAE’s Trusted Source for Custom Roll Forming Machines
Built for your project. Delivered to your door. Backed by experts.
