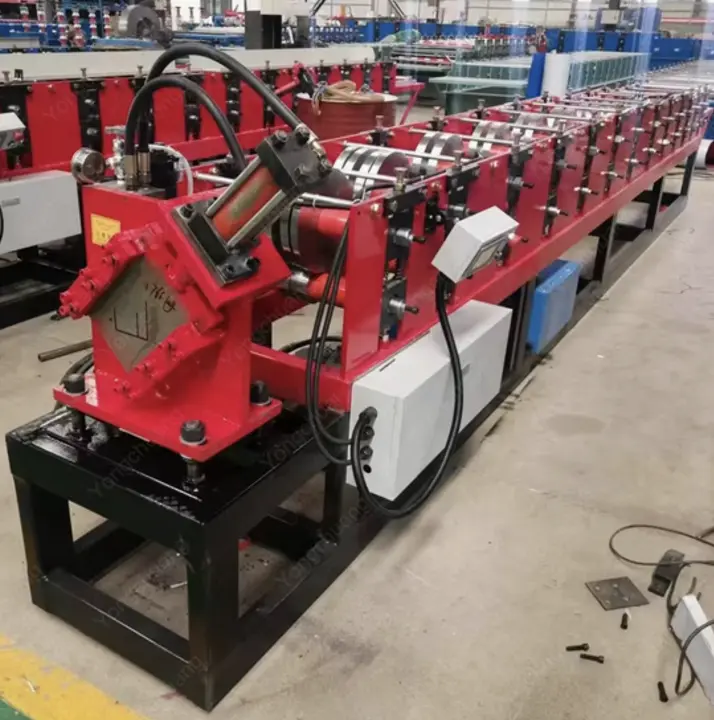

Steel Frame Roll Forming Machine in the USA

Steel frame roll forming machines are critical for manufacturing durable and precise steel frame structures used in construction, agriculture, and various industrial applications. These machines provide an efficient, cost-effective, and scalable way to produce steel frames for walls, trusses, and other structural elements.
Machine Description
A steel frame roll forming machine is a highly automated piece of equipment designed to transform flat steel coils into strong, accurate steel frames of various shapes and sizes. These machines employ a series of rollers that gradually shape the material to achieve the desired profile, ensuring precision and uniformity.
The machine’s modular design allows for adjustments, making it suitable for various steel frame profiles, such as C-channels, U-channels, L-brackets, and Z-purlins. Its advanced technology ensures smooth operation, high-speed production, and minimal waste, making it an ideal choice for manufacturers in the USA.
Key Features
Durability: Built with heavy-duty materials for long-lasting performance.

Precision: Equipped with high-grade rollers for accurate profile shaping.

Efficiency: Capable of high-speed production with minimal material wastage.

Versatility: Can produce a variety of steel frame profiles for different applications.

Automation: Integrated PLC systems for easy operation and control.
Applications in the USA
Construction: Wall studs, roof trusses, and framing components for residential, commercial, and industrial buildings.

Agriculture: Steel framing for greenhouses, barns, and storage units.

Industrial: Machine frames, shelving, and storage racks.

Transport: Lightweight steel frames for trailers and vehicles.
Question and Answer Section
Q1: What types of steel can be used in a steel frame roll forming machine?
A: Common materials include galvanized steel, cold-rolled steel, and stainless steel, depending on the application requirements.
Q2: Can the machine produce multiple profiles?
A: Yes, the machine can produce various profiles like C-channels, U-channels, and Z-purlins with interchangeable rollers.
Q3: What power supply is required for operating the machine in the USA?
A: The machine can be customized for standard USA power supplies, typically 220V/60Hz or 440V/60Hz.
Q4: Is training provided with the purchase of the machine?
A: Yes, most manufacturers provide training for setup, operation, and maintenance, either in-person or via virtual sessions.
Q5: What is the lead time for delivery?
A: Delivery typically takes 8-12 weeks, depending on the manufacturer and customizations required.
Q6: How can I ensure compliance with USA safety standards?
A: Ensure the machine is equipped with safety enclosures, emergency stop buttons, and complies with OSHA regulations.
Q7: What is the cost range for a steel frame roll forming machine?
A: Prices vary from $50,000 to $150,000 based on specifications, speed, and additional features.
Q8: Is regular maintenance required?
A: Yes, routine maintenance such as lubricating rollers, inspecting the cutting blades, and cleaning the machine ensures optimal performance and longevity.
Q9: Can the machine handle high-volume production?
A: Absolutely. With speeds up to 30 m/min, these machines are ideal for high-volume production environments.
Q10: Are spare parts readily available in the USA?
A: Yes, most suppliers provide spare parts and after-sales support locally or through fast international shipping.

Frame Construction:Material: High-strength steelStructure: Welded and stress-relieved
Material: High-strength steel
Structure: Welded and stress-relieved
Roller Materials:Material: GCr15 steel with heat treatmentSurface: Chrome-plated for enhanced durability
Material: GCr15 steel with heat treatment
Surface: Chrome-plated for enhanced durability
Hydraulic Cutting System:Cutting Blade: Cr12MOV steel, hardenedCutting Precision: ±0.5 mm
Cutting Blade: Cr12MOV steel, hardened
Cutting Precision: ±0.5 mm
Profile Dimensions:Width Range: 50 mm to 300 mmThickness Range: 0.5 mm to 2.0 mm
Width Range: 50 mm to 300 mm
Thickness Range: 0.5 mm to 2.0 mm
Power Requirements:Main Motor: 7.5 kW (adjustable based on requirements)Hydraulic Motor: 4.0 kWVoltage: 220V/60Hz or 440V/60Hz (customizable for USA standards)
Main Motor: 7.5 kW (adjustable based on requirements)
Hydraulic Motor: 4.0 kW
Voltage: 220V/60Hz or 440V/60Hz (customizable for USA standards)
Speed:Machine Speed: 20-30 m/min (varies with profile complexity)
Machine Speed: 20-30 m/min (varies with profile complexity)
Control System:PLC: Siemens or MitsubishiHMI: Touchscreen interfaceConnectivity: Remote monitoring and troubleshooting
PLC: Siemens or Mitsubishi
HMI: Touchscreen interface
Connectivity: Remote monitoring and troubleshooting
Safety Features:Emergency stop buttonsSafety enclosures around rollersOverload protection system
Emergency stop buttons
Safety enclosures around rollers
Overload protection system
Optional Add-Ons:Automatic stackerDecoiler and recoiler systemsPunching and notching unitsServo feeder for enhanced accuracy
Automatic stacker
Decoiler and recoiler systems
Punching and notching units
Servo feeder for enhanced accuracy
