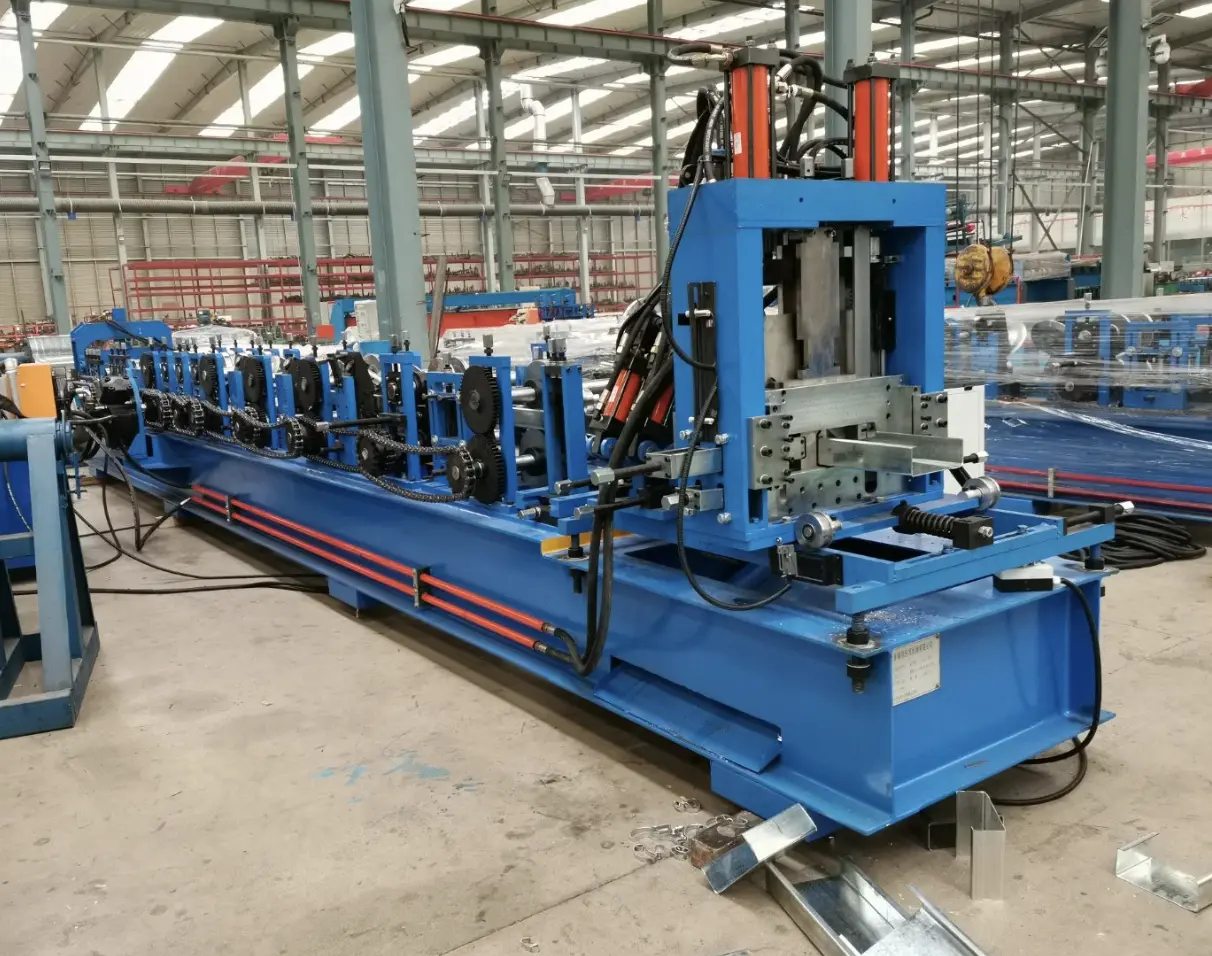

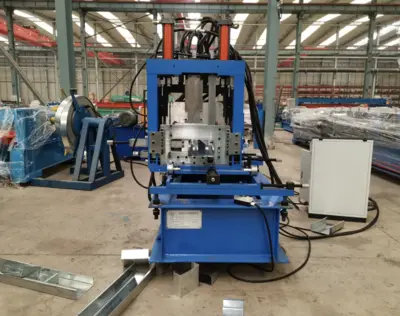

Steel Building Roll Forming Machine in Iran

Building Construction Steel Frame Cuz Purlin Profile Roller Making Roll Forming Machine
This is Full auto C purlin Roll forming machine , can work C section from 80-300mm in many sizes . It has smart control system , can adjust the sizes from buttons . Customer only need to provide us the section drawing , we can design accordingly .
GI&PPGI

0.3-3mm

235Mpa to 350Mpa

Operation

Manual/ Hydraulic for option

Weight Capacity

5Tons

Roller Station

18 rows

Diameter of Shaft

80-90mm

Material of Rollers

Bearing steel

Material of shaft

45# steel with chrome 0.05mm

Transmission

Chain

Operate

Automatic Hydraulic

Blade material

Cr12MOV

Pump motor for cutter

7.5KW

Main Motor

11KW

Voltage

380V 50Hz 3 Phase

Electric Box

PLC control system , Inverter

Language

English / Chinese

10-15M/min
