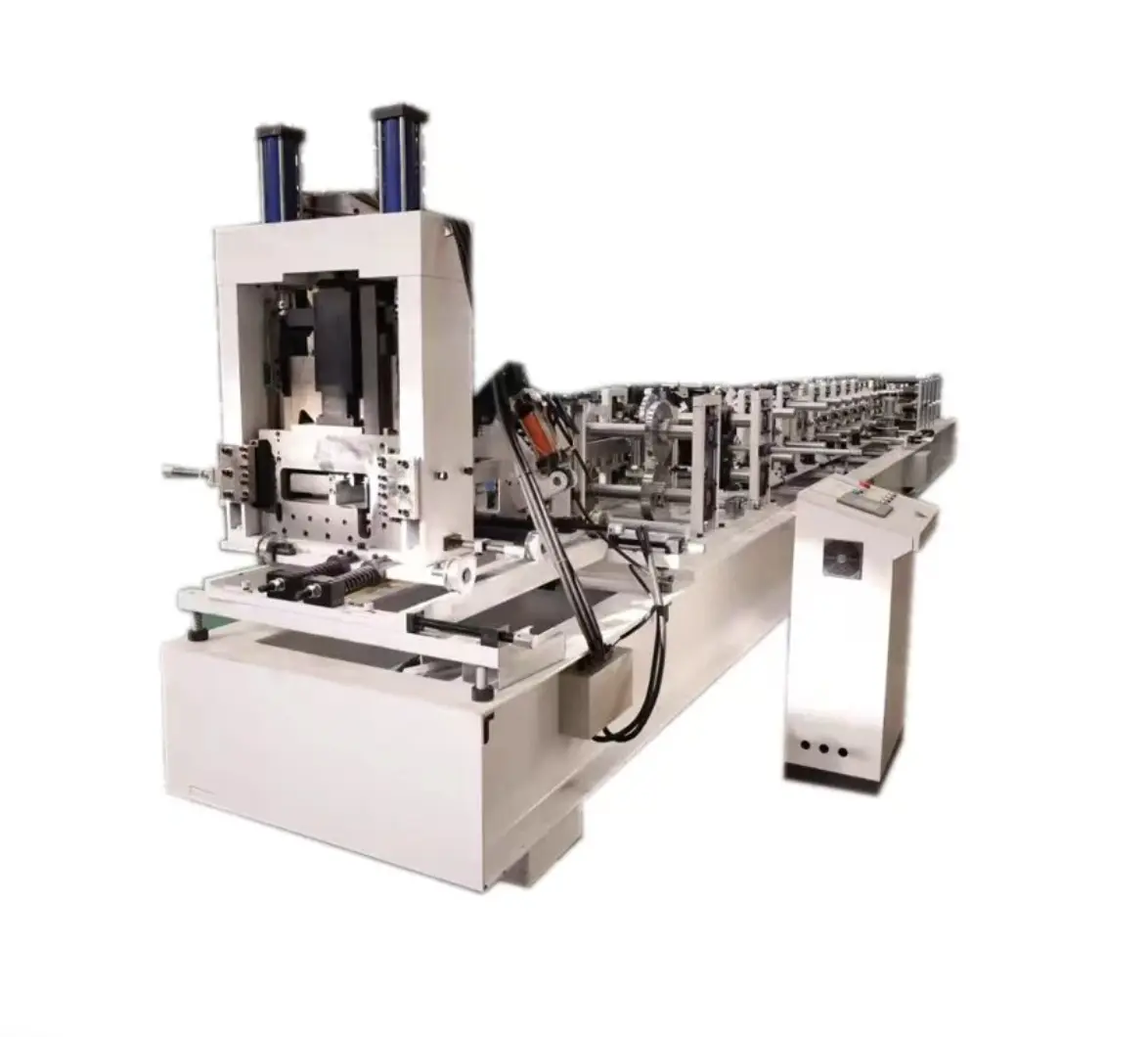

The cz shape interchange unit is controlled by manual ,and size change unit is controlled by PLC and change by set on touch panel,Aslo we have Semi Automatic cz purlin machine available.

1.Raw material:galvanized sheet 1-3mm
2.product size:C purlin80-300mm,Z purlin:100-300mm,If you need other size,we can customized that machine for you.
3.machine speed :max 25M/min
1
shaft diameter
75mm

2
The material of shaft
All rolling shafts are made by high quality No. 45 steel with quench and temper treatment, so the shafts with good rigidity which could use for long term without deformation

3
Roller material
All rollers material adopt high quality GCr15, with hard chrome coated on surface, all treatment by full CNC machines, to make sure the rollers with good rigidity and precision, and form perfect roofing sheet as per design.

4
Frame tie rod
35 # electroplate round steel to increase rigidity on both sides of wall panel

5
Roll forming
Roll forming process of coil

6
Motor power
22kw
1
Positioning plate
adjust the position of both ends to make it fit the width of the feed.

2
Guide frame
play a role in supporting the transport of the material roll.

3
Guide roller
The upper and lower round rollers are designed to make the feeding process more smooth.

4
Leveling system
1.Leveling shaft:up 3 + down 4
2.material:c45#
3.Processing technology: rough turning + high frequency heat treatment HRC50-55+cylindrical fine grinding + surface polishing and hard chrome plating
