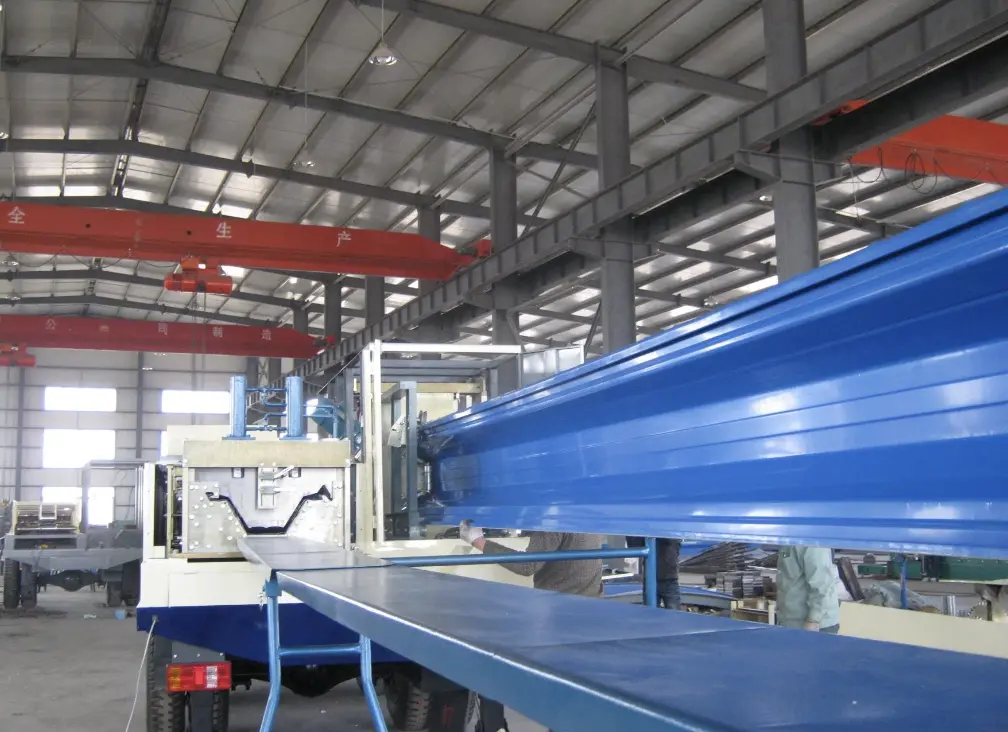

K Large Span Roll Forming Machine
Production Name
Bohai Arch Roof Roll Forming Machine
Size
8900mm X 2230mm X 2300mm (With Single Axle 4 Tires)
Total Weight
About 10 Ton
Thickness of Bending Leaf
10mm thickness, processed by CNC
Cutting Blade
12CrMov Material, Heat Treatment
Cutting Type
Mechanical Cutting
Forming Type
Roll-Formed and Length-Set Cutting
Power
Total Motor Power : 17.5KW
Main Motor Power : 7.5KW
Bending Power : 3.0KW+1.5KWx2
Cutting Power : 4.0KW
Seaming Power
1.1KW+1.1KW
Roller Material
45# High-Quality Steel, Quenched HRC 55~65, Hard Chrome Plating
Shaft Material
45# High-Quality Steel, Galvanized
Stand of Molding
13+1 Steps
Feeding Width
914mm
Effective Width
610mm
Using Rate
66.7%
Thickness Coil
0.5-1.6mm
Speed
Forming Part : 15m/min
Bending Part: 13m/min
Seaming Part: 16m/min
Suitable Span
6~38m
De-Coiler
Inner-Diameter of Coil : 450mm ~ 650mm,
Max Width of Coil : 914mm ~ 934mm
Load : 10Ton
