Light Gauge Steel Frame Roll Forming Machine – United Arab Emirates

Light Gauge Steel Frame Roll Forming Machine – United Arab Emirates

Engineered for Precision, Built for Speed – Designed for UAE Construction and Prefab Industries
Product Overview

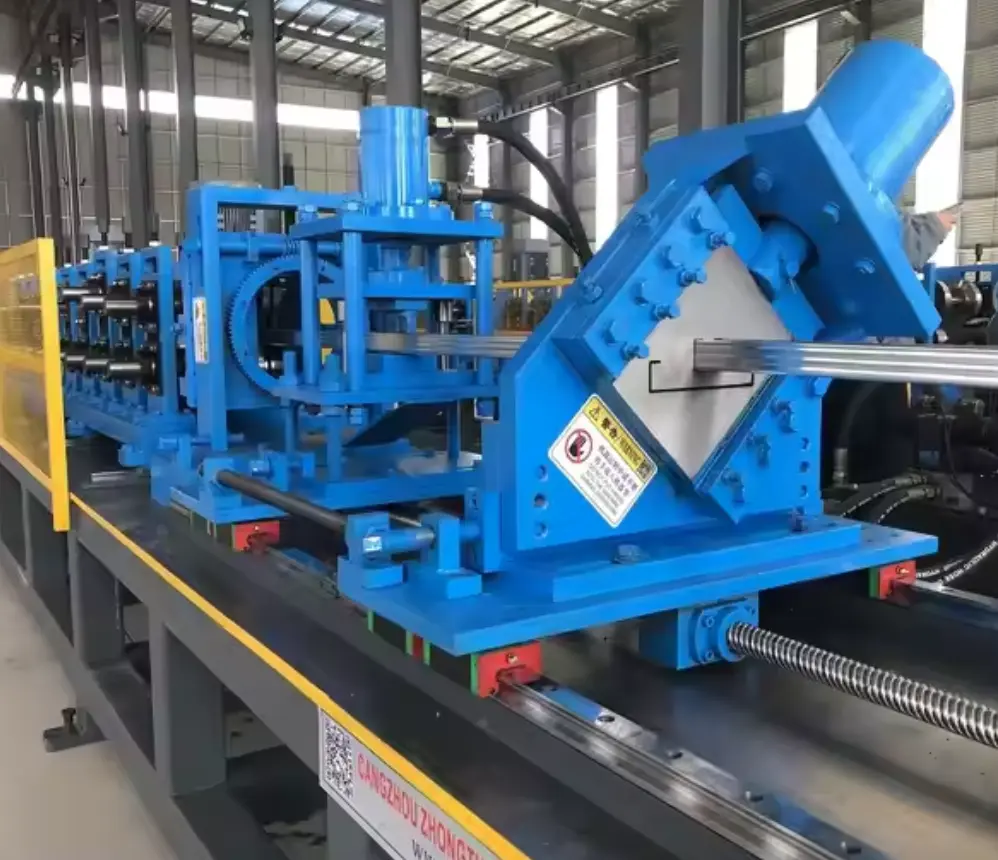

The Light Gauge Steel (LGS) Frame Roll Forming Machine is a high-performance, precision roll forming system designed to manufacture cold-formed steel studs, tracks, and structural profiles used in modern construction frameworks. Ideal for projects throughout the United Arab Emirates, this machine supports UAE’s fast-paced building industry, including residential, commercial, and modular construction.
Engineered with advanced automation and high-accuracy servo systems, this machine produces ready-to-frame light gauge steel profiles with superior dimensional consistency. Perfectly suited for building sites across Abu Dhabi, Dubai, Sharjah, and beyond, the machine supports high-speed production of framing members directly from coil to cut-to-length profiles.
Industries Served
Construction & Contracting (Residential/Commercial/Industrial Framing)

Prefab & Modular Building Manufacturers

Interior Fit-Out Companies

Steel Frame Fabricators

Cold-formed Building Suppliers

Disaster Relief/Temporary Structure Providers
Example Applications:
Steel wall studs and tracks

Ceiling joists

Truss components

Pre-cut panels for modular and prefab housing

Temporary shelters and site cabins
Machine Technical Specifications
Specification
Details

Machine Type
Light Gauge Steel Frame Roll Forming Machine

Production Speed
15–30 meters/min (adjustable)

Material Thickness Range
0.6 – 2.0 mm

Material Width Range
50 – 300 mm (depending on profile)

Material Types
Galvanized Steel, Galvalume, Cold Rolled Steel

Material Yield Strength
Up to 550 MPa (80 ksi)

Roller Material
GCr15 (hardened steel)

Roller Surface Treatment
Hard chrome plating

Number of Forming Stations
12–20 stations (customizable)

Roller Shaft Diameter
60 mm

Shaft Material
45# steel, precision ground and hardened

Main Drive Type
Chain drive or gearbox (optional)

Power for UAE
380V / 3 Phase / 50Hz

Motor Power
7.5 – 15 kW

Cutting Method
Hydraulic cutting

Blade Material
Cr12Mov, heat treated

Control Type
PLC + Touchscreen HMI

Operating Mode
Automatic with manual override

De-coiling System
Manual or hydraulic uncoiler (optional motorized version)

Punching/Notching System
Servo punching and inline notching (optional)

Machine Frame
H-Beam welded and stress relieved

Thickness of Frame Steel
20–25 mm

Profile Shape
U, C, Z, or custom shape

Profile Width and Depth
Customizable up to 300 mm width

Length Tolerance
±0.5 mm

Safety Features
Emergency Stop, Guard Covers, Overload Protection, Warning Lights
Common Materials Used
Galvanized Steel Coil (G550)

Thickness: 0.8 – 2.0 mm

Yield Strength: 280–550 MPa (40–80 ksi)

Cold Rolled Steel

Typically used for interior framing systems
Prices Start From
Starting at: USD $55,000

(FOB Factory, depending on configuration and optional features)
What Affects the Final Price?
Custom profile requirements

Number of punching stations

Motorized decoilers, stackers, or coil cars

Advanced automation and remote control options

Profile tooling complexity
Contact [email protected] for a tailored quote. Include any profile drawings or special production details for faster processing.
Delivery & Location
All machines are brand-new and custom-built based on your production needs.

We deliver anywhere across the United Arab Emirates, including Dubai, Abu Dhabi, Sharjah, Ajman, and other emirates. Machines are built to specification and shipped directly from our certified global manufacturing partners.
Unique Selling Points (USPs)
Full Automation: Reduces labor cost and human error.

Quick Setup & Changeover: Ideal for multiple profile projects.

Robust Frame & Long Life: Built for UAE heat and high-volume conditions.

Customizable Tooling: Match exact profile sizes without additional processing.

Local Voltage & Compliance: Pre-configured for UAE industrial environments.

Smart PLC System: Integrated touchscreen for easy operation and diagnostics.
How this helps you:

Faster production, minimal waste, high precision, and fewer reworks mean lower total project costs and quicker ROI for your factory.
Customization Options
Multi-profile tooling system

Motorized uncoiler (3T to 10T capacity)

Servo punching with pattern flexibility

Automatic stacker and cross-conveyor

Remote access diagnostics

Profile marking or labeling station

Built-in framing software integration
Need a Quote?
If you have:
Profile drawings

Material specifications

Preferred output speed

Special electrical requirements
Email all information to [email protected]

We’ll reply with the best configuration, price, and delivery lead time for your UAE location.
Frequently Asked Questions (FAQ)
Q: Can this machine handle different profile shapes like C and U studs?

A: Yes, it can be configured to switch between C, U, and other shapes with changeable tooling.
Q: How fast can the machine be delivered to the UAE?

A: Typical production and delivery time is 45–70 days depending on configuration.
Q: Does this machine come with training or installation?

A: Yes, optional installation and training support is available for UAE customers.
Q: Is the machine compatible with UAE industrial standards?

A: Absolutely. All machines are delivered pre-configured for 380V / 3 Phase / 50Hz systems.
Q: What kind of warranty is offered?

A: One-year warranty with full support for maintenance, replacement parts, and remote troubleshooting.
