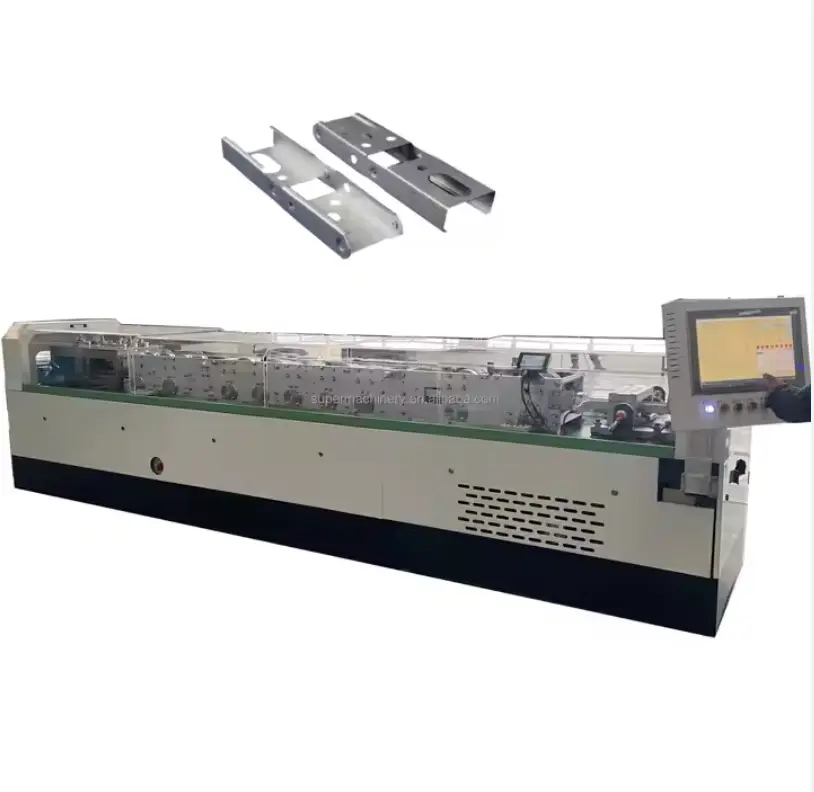

89mm CU Stud and Truss Light Gauge Steel Framing Roll Forming Machine in China

View more information and all machines from this supplier here
Core Components

PLC, Motor, Gear, Pump

Production Capacity

30m/min

Place of Origin

Jiangsu, China

Weight

3000 kg

Warranty

2 years

Key Selling Points

High-accuracy

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Brand Name

SUPER

Dimension(L*W*H)

5.0*1.75*1.35m

Material Thickness

0.75-1.2mm

Main Motor Power

5.5kw

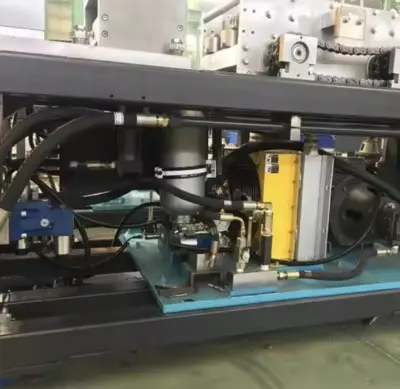

Hydraulic Pressure

16Mpa

Control System

Delta PLC

Shaft Material

40Cr

Roller Material

GCr15

Cutter Blade Material

Cr12Mov

Forming Speed

30m/min

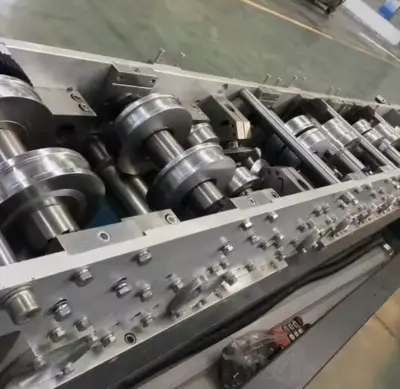

Roller Station

4+5 Stations

Product Keywords

Profile Channel framing machine
