Material
Colored steel sheet, galvanized steel sheet, aluminum sheet
Thickness of coil sheet
1.0-2.0mm
Efficiency width
25/30mm
Machine details
Roller material
High grade NO. 45 forged steel
Shaft material
High grade NO. 45 carbon wrought steel
Cutting blade
Cr12 mould steel with quenched treatment
Diameter of shaft
70mm or as your requirement
Main frame
300 H steel
Forming steps
16 stations
Productivity
15-20m/min
Hydraulic station power
4KW
Hydraulic pressure
10-12MPa
Appearance size
7700mm*1500mm*1500mm
Hydraulic oil
40# hydraulic oil
Electric tension
380V 50 Hz 3 Phase or as your requirement
Cut Mode
Hydraulic forming after cutting off
Cutter material
Cr12 Heat Treatment
Electronic control system
PLC, Touch Screen, Encoding counter

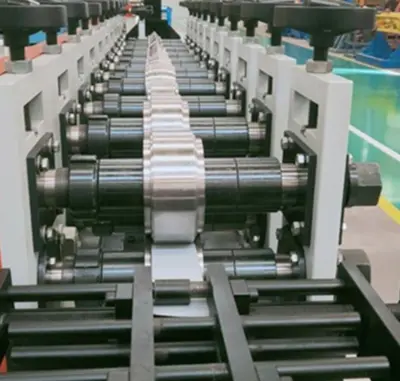

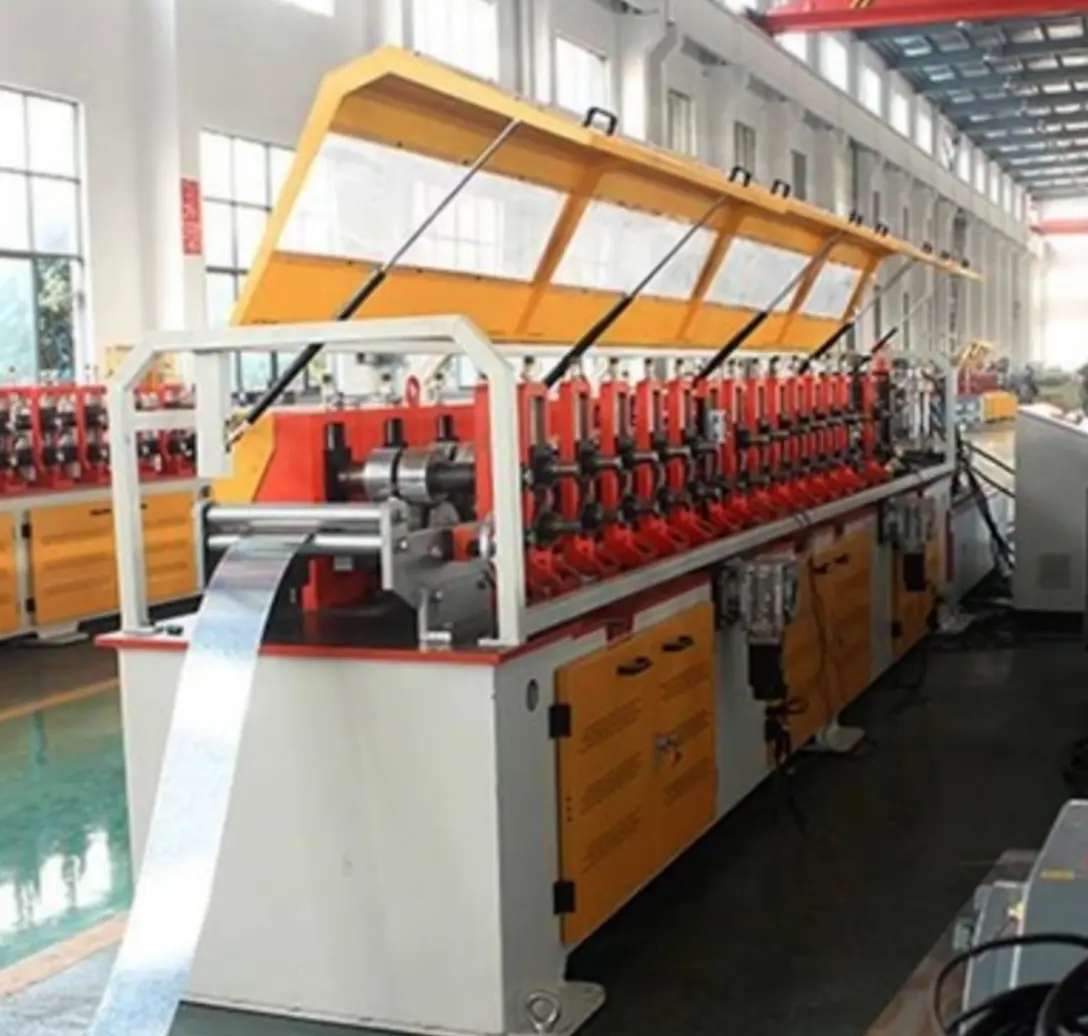

Light gauge roll forming machines are specialized equipment designed for producing lightweight metal profiles and components, typically used in construction, manufacturing, and other industries. These machines are particularly adept at processing thin sheets of steel, aluminum, and other metals to create a variety of profiles, such as studs, tracks, and other structural elements. Here’s a more detailed overview:
Features and Benefits
Versatility: Light gauge roll forming machines can produce a wide range of profiles, making them suitable for various applications, including framing, roofing, and cladding.
Precision Engineering: These machines utilize advanced technology to ensure high precision in the forming process, resulting in consistent product quality.
Cost Efficiency: By using lightweight materials, businesses can reduce transportation costs and improve overall project efficiency.
Speed and Automation: Many light gauge roll forming machines are equipped with automated systems that increase production speed and reduce labor costs.
Durability: Despite being lightweight, the products made with these machines are often designed to meet specific strength requirements, ensuring they can withstand various environmental conditions.
Customization: Manufacturers can often customize profiles to meet specific project needs, enhancing flexibility in production.
Applications
Construction: Used for producing metal framing systems, wall studs, and ceiling tracks.
Manufacturing: Ideal for creating components for appliances, furniture, and automotive applications.
HVAC Systems: Fabrication of ductwork and ventilation systems.
Agriculture: Production of structural elements for agricultural buildings and equipment.
Considerations When Choosing a Light Gauge Roll Forming Machine
Profile Range: Ensure the machine can produce the profiles required for your specific applications.
Material Thickness: Verify the machine’s capabilities regarding the thickness of materials it can process.
Production Speed: Consider how fast the machine can produce the desired quantities.
Automation Options: Look for machines with automated features for improved efficiency.
Light gauge roll forming machines are essential tools for companies looking to optimize their production processes while maintaining high standards of quality and efficiency in their metal component manufacturing.
