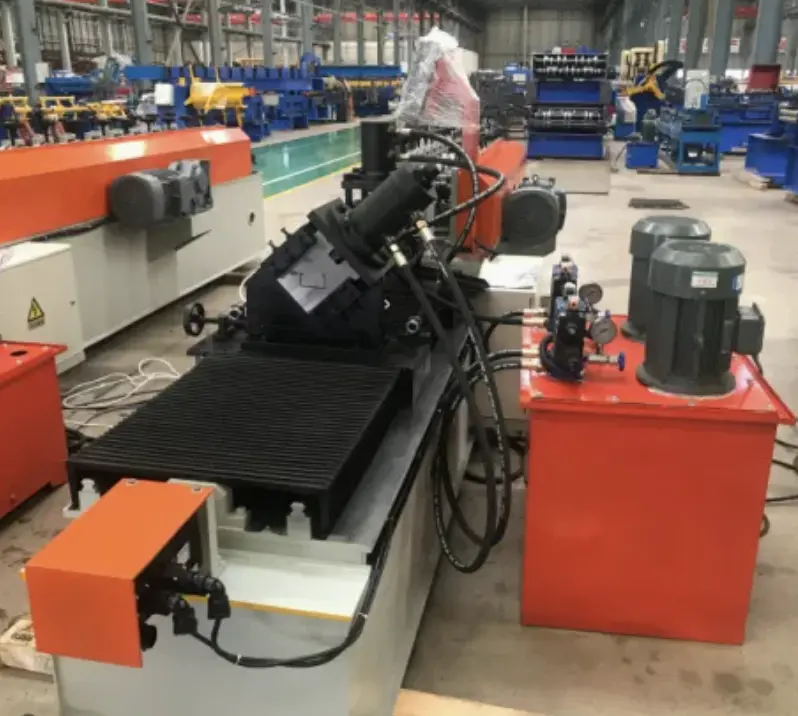

A steel frame roll forming machine is specialized for producing metal frames used in construction, typically for building structures like steel framing for walls, roof trusses, and partition systems. Here’s a general outline of its specifications and features:
1. Machine Specifications
Material Thickness: Usually ranges between 0.8mm to 2.0mm, though some machines can handle thicker materials based on specific requirements.
Material Width: Typically, 80mm - 300mm, though it varies depending on the final profile width.
Material Type: Works with galvanized steel, high-strength steel, cold-rolled steel, and other coated steel types.
Production Speed: Between 10-25 meters per minute, depending on the machine’s design and the profile complexity.
Power Supply: Customizable based on country requirements, typically 380V, 50Hz, or as per local standards.
Forming Stations: Ranges from 12 to 24 forming stations, depending on profile complexity and machine size.
Cutting System: Hydraulic cutting system with post-cut or pre-cut options to allow flexibility in production.
Control System: Equipped with a PLC (Programmable Logic Controller) system for precision and ease of operation, often with touch screen or HMI (Human Machine Interface) controls.
2. Machine Features and Capabilities
Precision Forming: Ensures high accuracy and consistency across long production runs. Essential for construction applications where precision is vital.
Adjustable Rollers: Allows for quick profile adjustments without the need for extensive retooling, which increases efficiency.
Automatic Lubrication System: Some machines have an automatic lubrication system that extends the life of the rollers and bearings.
Profile Customization: Easily adaptable to various profile shapes and sizes as per the project requirements.
Modular Design: Makes it possible to add or remove stations to change the profile design or to switch to a different application.
Safety Features: Includes emergency stop buttons, protective guards, and overload protection to ensure operator safety.
3. Applications of Steel Frame Roll Forming Machines
Steel Stud and Track Production: Widely used for producing metal studs and tracks for interior and exterior framing.
Roof Trusses: Structural elements used in roofing systems.
Partition Walls: Used in the creation of non-load-bearing partition walls in commercial and residential construction.
Light Gauge Steel Framing: Ideal for residential, commercial, and industrial light gauge steel framing applications.
4. Additional Optional Features
Punching Stations: Some machines offer punching capabilities for bolt holes or other openings required in the frame.
Decoiler and Recoiler: For handling larger coils, a heavy-duty decoiler may be provided along with a recoiler for efficient material handling.
Profile Marking System: Allows for profile marking to help with assembly on construction sites.
