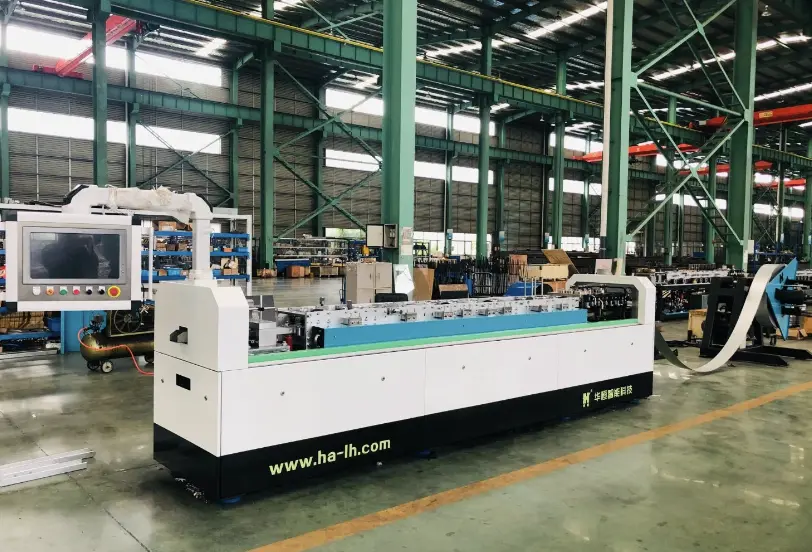

Steel Framing System Roll Forming Machine in Eswatini

Description of application effect: Equipped with advanced Vertex BD building design software, the machine is used to produce one special C channel profile which can be used for 1-3 floors light gauge steel residence wall, floor and roof truss structures.
The system automatic generates wall and floor panel fabrication drawings, structural layouts, cut lists, and other material
reports. By automating these processes, manufacturers are saving lots of time in drafting, material reporting, data entry,
manufacturing, and correcting all the errors.
Phase/voltage/frequency
220V/50Hz

Driven type
Servo-motor

Punching type
Hydraulic pre-punch

Cutting type
Hydraulic post-cut

Hydraulic oil cooling
Fan, Air conditioner (Optional)
