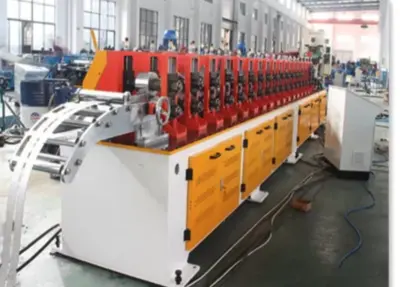

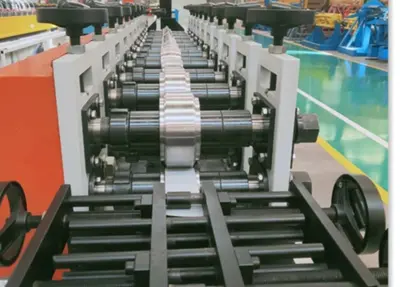

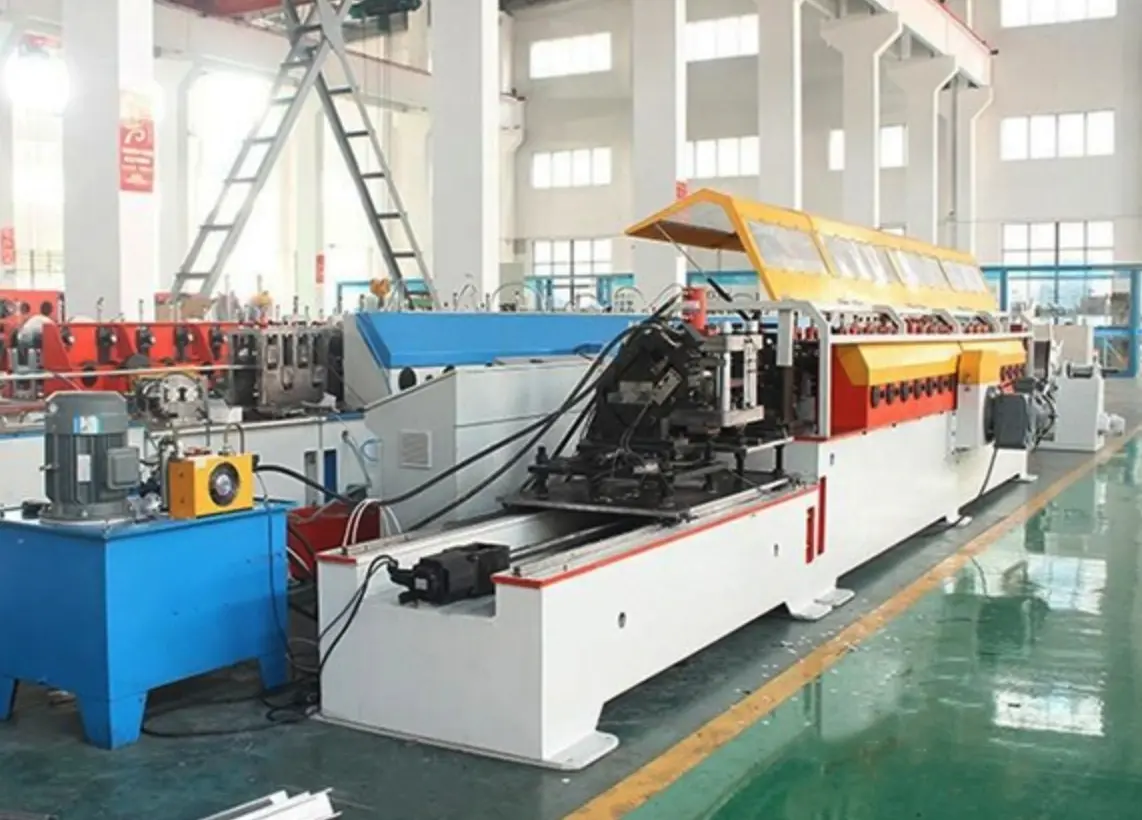

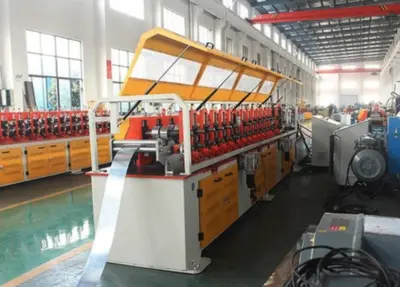

Light Gauge Roll Forming Machine in Texas, USA

Material
Colored steel sheet, galvanized steel sheet, aluminum sheet

Thickness of coil sheet
1.0-2.0mm

Efficiency width
25/30mm

Machine details

Roller material
High grade NO. 45 forged steel

Shaft material
High grade NO. 45 carbon wrought steel

Cutting blade
Cr12 mould steel with quenched treatment

Diameter of shaft
70mm or as your requirement

Main frame
300 H steel

Forming steps
16 stations

Productivity
15-20m/min

Hydraulic station power
4KW

Hydraulic pressure
10-12MPa

Appearance size
7700mm*1500mm*1500mm

Hydraulic oil
40# hydraulic oil

Electric tension
380V 50 Hz 3 Phase or as your requirement

Cut Mode
Hydraulic forming after cutting off

Cutter material
Cr12 Heat Treatment

Electronic control system
PLC, Touch Screen, Encoding counter

Color
Blue, green or yellow or as your requirement

Rolling material
45# steel,roller surfaces polishing, hard plating
