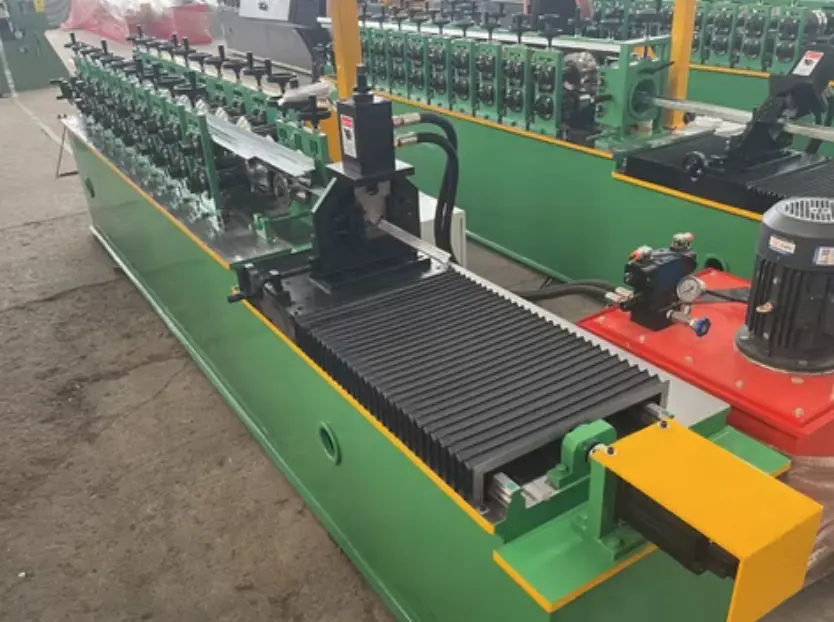

Light Steel Roll Forming Machine in Costa Rica

Mullti Profiles Light Gauge Steel Frame Roll Forming Machine for Steel Framing Villa
Profile Shape
C, U and Sigma Shape

Profile Size
135-305 mm

Material Thickness
1-2.5 mm, G300-G450 Zinc-Alum Steel Coil

Operation System
21 inches Touchable Screen

Production Control System
Self-devoloped FrameTec LGS machine Controlling Software

Design Software
Vertex BD from Finland

Comprehensive Machine Speed
Joists: 500 m/hr Walls: 800 m/hr

Max. Machine Speed
2,150m/hr

Power Supplier
380V, 50Hz, 3Phrases, can be customized

Hydraulic Coolant System
Self Cooling, Optional refrigeration device for high strength production, air cooling and AC cooling

Punching, Cutting Mould
Fixing tabs, Web hole, Service Hole, Dimple, Web Notch

Hole Punching Accuracy
± 0.5 mm

Decoiler
5000 kgs,auto decoiling
Classical LGS machine models for 6+ years, very stable and with high speed production speed
The MF300 produces wall frames, trusses and joists for residential and light commercial building quickly economically

Advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists
An auto-gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 1 -2.5mm

High line speed results in the accelerated cold formed steel framing and truss manufacturing output
Smart internet connectivity provides cloud-based data reporting to enable real-time production management, and technical diagnostics to improve efficiency

High line speed results in the accelerated cold formed steel framing and truss manufacturing output
Self developing control system base on the market feedback that can meet your requirement well & with good after sales support
