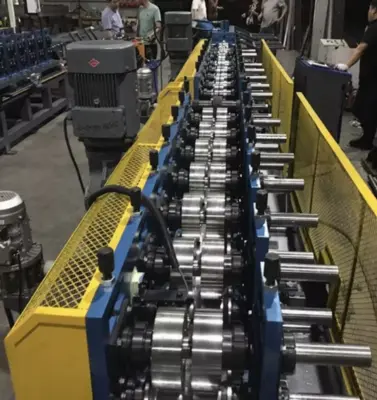

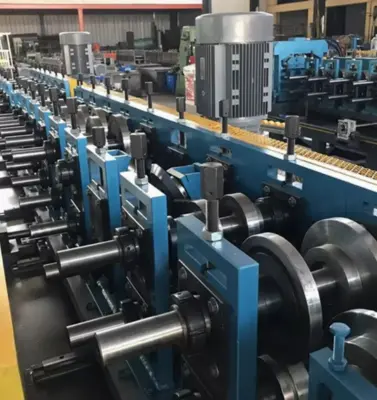

Metal Stud Framing Roll Forming Machine – UAE Edition
Premium Roll Forming Solution for Interior & Drywall Framing Projects in the United Arab Emirates
Product Overview
The Metal Stud Framing Roll Forming Machine is a precision-engineered solution designed for the efficient, high-speed production of steel stud framing profiles used in drywall partition systems and light-gauge steel construction. This roll forming system is ideal for contractors, builders, and metal framing manufacturers operating across the UAE—including Abu Dhabi, Dubai, and Sharjah—who require durable and accurate machines to meet rising construction demands in both residential and commercial sectors.
All machines are custom-built to suit the client’s profile sizes, gauge ranges, and power configurations, and are shipped direct from our manufacturing partner with full commissioning and support services available locally.
Industry Applications
This machine is widely used in:
Drywall construction
Lightweight steel framing
Commercial office partitions
Hospitality and retail interiors
Healthcare and education construction projects
Modular construction systems
Due to the UAE’s fast-paced development, particularly in Dubai’s skyscrapers and Sharjah’s housing expansion, high-volume, precision-made metal studs and tracks are in strong demand.
Machine Technical Specifications
Specification
Details
Machine Type
Metal Stud Framing Roll Forming Machine
Production Speed
30–45 meters per minute (customizable)
Material Thickness Range
0.4 – 1.2 mm
Material Width Range
50 – 300 mm (depending on profile)
Material Types
Galvanized Steel (GI), Cold Rolled Steel
Material Yield Strength
Up to 550 MPa
Roller Material
GCr15 bearing steel (heat-treated, quenched)
Roller Surface Treatment
Hard chrome plating for extended life
Number of Forming Stations
12–20 stations (custom based on profile)
Roller Shaft Diameter
60 mm (varies per profile size)
Shaft Material
High-strength steel (quenched and tempered)
Main Drive Type
Chain drive or gear drive (depending on model)
Power (UAE Compatible)
380V / 50Hz / 3 Phase
Motor Power
7.5 – 15 kW

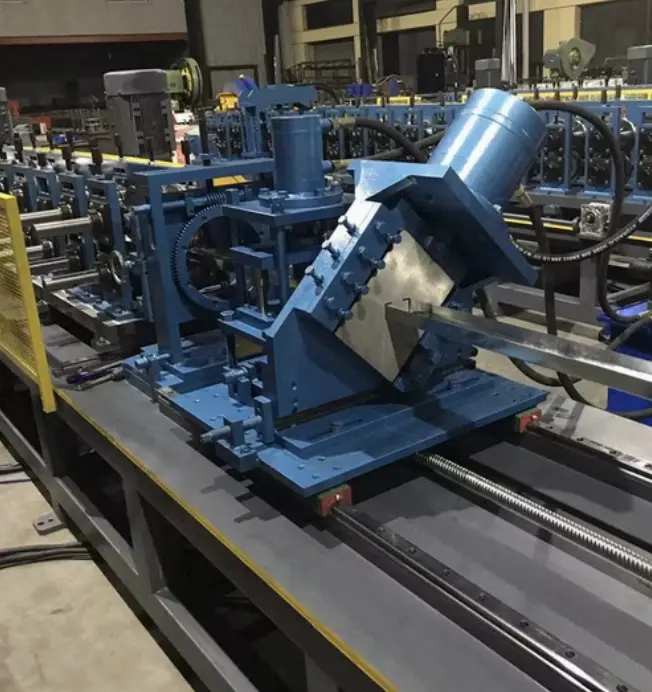

Cutting Method
Hydraulic cutting – stop and cut or flying cut
Blade Material
Cr12Mov, heat-treated
Control Type
PLC with touch screen (Siemens/Delta)
Operating Mode
Automatic & Manual modes
De-coiling System
Manual or hydraulic uncoiler (optional: motorized)
Punching/Notching System
Optional inline hydraulic punching unit
Machine Frame
Welded steel frame with heavy-duty construction
Thickness of Frame Steel
18 – 25 mm depending on configuration
Profile Shape
C-shaped stud and U-shaped track (custom available)
Profile Width and Depth
Standard sizes: 50, 64, 76, 100, 150 mm
Length Tolerance
±1.0 mm
Safety Features
Protective guards, e-stop buttons, overload protection
Protective Covers/Guards
Included on moving parts
Emergency Stop Button
Installed at main and auxiliary panels
Overload Protection System
Yes – motor and hydraulic overload protection
Location & Delivery
All metal stud roll forming machines are manufactured to order and delivered anywhere in the UAE, including:
Abu Dhabi
Dubai
Sharjah
Ajman
Fujairah
Al Ain
Delivery includes on-site setup support, installation, training, and remote diagnostics where required.
Pricing & Customization
Pricing is determined based on the chosen configuration, number of forming stations, punching requirements, and optional extras like:
Motorized uncoiler
Flying cutoff system
Servo punching system
Profile changeover automation
To receive the most accurate quote, please email your profile drawing, desired thickness range, and production requirements to:
📧 [email protected]
Warranty & Support
One-year warranty from dispatch date
Remote and on-site maintenance
Spare parts availability
Operator training and commissioning support
Frequently Asked Questions (FAQ)
Q1: Can the machine produce both stud and track profiles?
Yes, the machine can be configured with quick-change tooling to produce both stud and track profiles in one setup.
Q2: Is local installation and training included in the UAE?
Yes, Machine Matcher offers local installation support and operator training throughout the UAE.
Q3: What’s the average delivery time to Dubai or Abu Dhabi?
Delivery typically ranges from 6 to 10 weeks depending on customization and port clearance.
Q4: Can this machine work with different voltage settings?
Yes, the machine is built to UAE-standard 380V/50Hz, but voltage can be adapted to customer needs.
Q5: Do I need a separate punching machine for holes?
No, we offer integrated punching systems for cable holes, service knockouts, and notch cuts directly on the roll former.
Q6: What if I want to make 6-inch or 8-inch studs?
No problem—just send your profile drawing, and the machine will be custom-configured to match your size.
Q7: How accurate is the machine when cutting to length?
The PLC-controlled system achieves ±1.0 mm tolerance, even at high speeds.
Ready to Build?
All machines are brand new, built to customer specifications, and backed by expert support from Machine Matcher’s team in the UK and UAE.
Contact us at:
[email protected]
