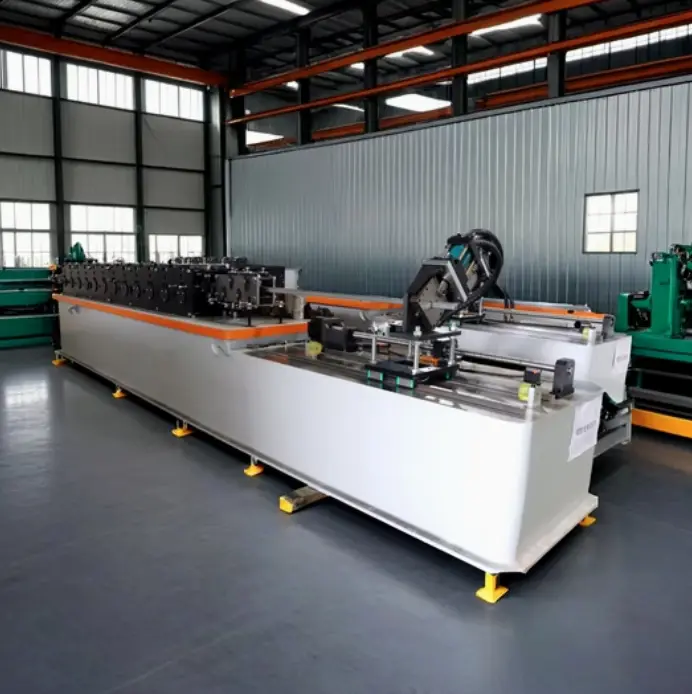

Metal Stud Roll Forming Machine – UAE Supply
The metal stud roll forming machine is engineered to deliver precision and efficiency in manufacturing lightweight steel framing components such as studs, tracks, and channels, commonly used in drywall systems and partition walls. Built for the fast-paced construction environment in the United Arab Emirates, this roll forming system is ideal for high-volume production of C-studs, U-tracks, and custom drywall framing profiles.
Designed with advanced automation, robust structure, and tailored forming solutions, this machine supports UAE’s demand for commercial, residential, and industrial building interiors. Whether used in Abu Dhabi, Dubai, Sharjah, or other Emirates, the machine can be customized to suit any local specification or building standard.
Machine Description
This fully automatic metal stud roll forming machine is equipped with an integrated decoiler, precise servo feeding, punching or notching system (optional), and hydraulic cutting. Profiles are formed using hardened rollers mounted on a solid steel frame, ensuring tight tolerances and high repeatability in production. It is designed to handle galvanized steel, cold-rolled steel, and similar materials, all commonly used in partition framing systems.
Production speeds can reach up to 40 meters per minute, depending on punching operations and material thickness. The machine operates seamlessly under the UAE’s 380V/50Hz 3-phase power standard and is compatible with most job site or factory layouts.
Machine Technical Specifications
Specification
Detail
Machine Type:
Metal Stud Roll Forming Machine
Production Speed:
Up to 40 m/min
Material Thickness Range:
0.4 – 1.2 mm
Material Width Range:
80 – 300 mm (customizable)
Material Types:
Galvanized steel, Cold-rolled steel, G550, G300
Material Yield Strength:
Up to 550 MPa (80 KSI)
Roller Material:
GCr15 bearing steel (quenched and polished)
Roller Surface Treatment:
Hard chrome plated
Number of Forming Stations:
10–18 stations (based on profile complexity)
Roller Shaft Diameter:
50 mm
Shaft Material:
High-grade 40Cr
Main Drive Type:
Chain / Gearbox drive (as per requirement)
Power (UAE standard):
380V / 50Hz / 3 Phase
Motor Power:
7.5 – 11 kW (based on profile & configuration)
Cutting Method:
Hydraulic post-cut or flying shear
Blade Material:
Cr12MoV hardened tool steel
Control Type:
PLC with HMI touch screen
Operating Mode:
Fully automatic
De-coiling System:
Manual or hydraulic decoiler (3T or 5T capacity)
Punching/Notching System:
Optional servo punching system
Machine Frame:
Welded steel frame with reinforced side panels
Thickness of Frame Steel:
20 mm
Profile Shape:
C-stud / U-track (custom profiles on request)
Profile Width and Depth:
Width: 45–150 mm / Depth: 30–60 mm
Length Tolerance:
± 1.0 mm
Safety Features:
– Protective Covers/Guards
Included
– Emergency Stop Button
Included
– Overload Protection System
Included
Industries and Applications
This machine is widely used in:
Drywall partition construction
Light steel framing
Commercial and residential interiors
Industrial office fit-outs
Prefabricated modular construction
Construction companies, interior contractors, and steel fabricators in the UAE rely on this machine to supply metal framing systems that meet international standards for durability, strength, and fire resistance.
Location & Delivery
All machines are new and custom-built to your exact profile dimensions and specifications. The machine can be delivered to any location in the UAE, including:
Abu Dhabi
Dubai
Sharjah
Ajman
Ras Al Khaimah
Al Ain
Fujairah
Machine Matcher partners with trusted manufacturers to ensure prompt build times and direct shipping to your facility or construction site.
💲 Pricing & Support
Pricing depends on the configuration, punching/notching requirements, optional stackers, PLC systems, or other features you select. To receive an accurate quotation:
Email your profile drawing, material gauge, and production requirements to:
[email protected]
Warranty & Support:
1-year warranty from dispatch
Lifetime technical support
On-site installation & training available
Spare parts supply and service across the UAE
Frequently Asked Questions
Q: Can this machine produce both studs and tracks?
A: Yes, it can be configured with interchangeable tooling or separate stations for both C-studs and U-tracks.
Q: What profiles are supported?
A: Standard drywall profiles like 50/75/100 mm studs and tracks, or any custom profile based on your drawing.
Q: Is the punching system included?
A: Punching and notching systems are optional. You can add inline punching for electrical holes or ends, depending on your project.
Q: How long is the delivery time to the UAE?
A: Delivery is typically 45–70 days depending on machine complexity and optional features.
Q: What support is offered in the UAE?
A: We provide full remote support, and on-site services are available through our local technician partners in the UAE.
For tailored advice, complete machine recommendations, or a custom quote, reach out to Machine Matcher today. We specialize in providing new roll forming machines built to customer specifications, delivered with expert service and support across the UAE.
